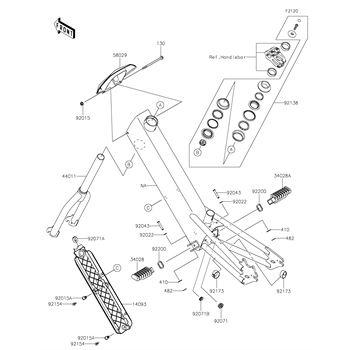

2024 Kawasaki Elektrode KSK030-ARFNN - Frame

BOLT-FLANGED, 6X100

Part #: 130CA06100 Required per assembly: 1

WASHER-PLAIN-SMALL

Part #: 410AA0600 Required per assembly: 2 Note: Sold in multiples of 5 only

CIRCLIP-TYPE-E

Part #: 482EA5000 Required per assembly: 2 Note: Sold in multiples of 10 only

COVER, FRAME, BOTTOM

Part #: 14093-1282 Required per assembly: 1

STEP, RR, LH

Part #: 34028-0134 Required per assembly: 1

STEP, RR, RH

Part #: 34028-0135 Required per assembly: 1

FORK-FRONT, BLACK

Part #: 44011-0712-10 Required per assembly: 1

PLATE-NUMBER, L.GREEN

Part #: 58029-0015-290 Required per assembly: 1

NUT, FLANGED, 6MM

Part #: 92015-1367 Required per assembly: 1

NUT, WELL, 5MM

Part #: 92015-1757 Required per assembly: 3

WASHER, 6.5X11.5X2

Part #: 92022-1506 Required per assembly: 2

PIN, 5X31.8

Part #: 92043-0907 Required per assembly: 2

GROMMET

Part #: 92071-0012 Required per assembly: 1

GROMMET, 11X23X7

Part #: 92071-0762 Required per assembly: 1

GROMMET

Part #: 92071-1152 Required per assembly: 1

BEARING-COMP

Part #: 92138-0005 Required per assembly: 1

BOLT, SOCKET, 5X16

Part #: 92154-4294 Required per assembly: 3

CLAMP

Part #: 92173-2194 Required per assembly: 2

WASHER, RR, STEP

Part #: 92200-0561 Required per assembly: 2
