OEM Parts Kawasaki 2024 Kawasaki KX65 Engine Mount

2024 Kawasaki KX65 KX65-CRFNN - Engine Mount

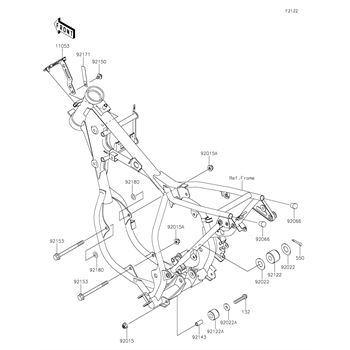

Engine Mount Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
132

BOLT-FLANGED-SMALL, 8X40

Part #: 132BA0840 Required per assembly: 1
$5.19
$4.05
-
+
Add to cart
550

PIN-COTTER, 2.5X18

Part #: 550AA2518 Required per assembly: 1
$0.64
$0.55
-
+
Add to cart
11053

BRACKET, IGNITER

Part #: 11053-1682 Required per assembly: 1
$14.20
$11.96
-
+
Add to cart
92015

NUT, FLANGED, 8MM

Part #: 92015-1406 Required per assembly: 1
$4.58
$3.60
-
+
Add to cart
92015A

NUT, 8MM

Part #: 92015-1432 Required per assembly: 2
$6.74
$5.19
-
+
Add to cart
92022

WASHER

Part #: 92022-107 Required per assembly: 2
$2.78
$2.00
-
+
Add to cart
92022A

WASHER, 8.5X20X1.6

Part #: 92022-1561 Required per assembly: 1
$4.43
$3.49
-
+
Add to cart
92066

PLUG, HEAD, LAMP

Part #: 92066-1081 Required per assembly: 2
$8.85
$7.62
-
+
Add to cart
92122

ROLLER, CHAIN, GUIDE

Part #: 92122-1179 Required per assembly: 1
$19.62
$16.36
-
+
Add to cart
92122A

ROLLER, CHAIN, GUIDE

Part #: 92122-1213 Required per assembly: 1
$12.86
$10.88
-
+
Add to cart
92143

COLLAR, 9.5X12.7X25

Part #: 92143-1432 Required per assembly: 1
$7.57
$6.59
-
+
Add to cart
92150

BOLT, 6X12

Part #: 92150-1891 Required per assembly: 1
$4.04
$3.20
-
+
Add to cart
92153

BOLT, FLANGED, 8X110

Part #: 92153-1095 Required per assembly: 2
$8.21
$7.09
-
+
Add to cart
92171

CLAMP

Part #: 92171-0652 Required per assembly: 1 Note: Sold in multiples of 5 only
$2.70
$1.95
-
+
Add to cart
92180

SHIM, 9X18X0.3

Part #: 92180-1354 Required per assembly: 1
$1.94
$1.43
-
+
Add to cart

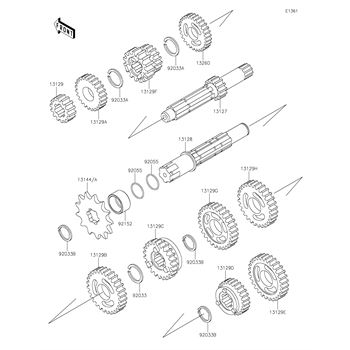

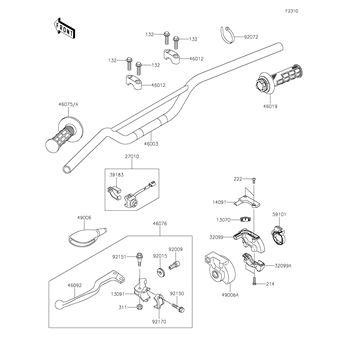

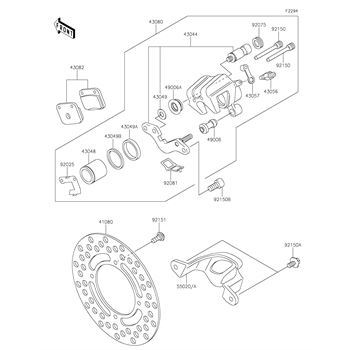

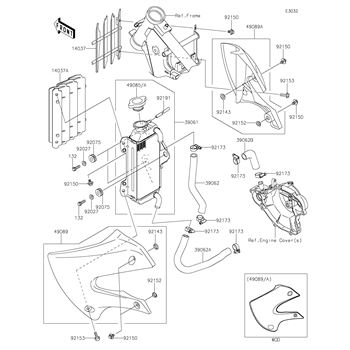

Other assembly diagrams for this model
