OEM Parts Kawasaki 2024 Kawasaki Ridge Limited Engine Mount

2024 Kawasaki Ridge Limited KWF1000-ERFNL - Engine Mount

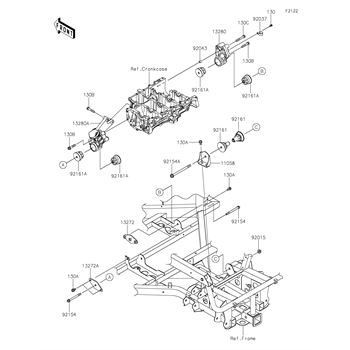

Engine Mount Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
130

BOLT-FLANGED, 6X12

Part #: 130BA0612 Required per assembly: 1 Note: Sold in multiples of 5 only
$1.79
$1.32
-
+
Add to cart
130A

BOLT-FLANGED, 10X18

Part #: 130CA1018 Required per assembly: 6
$2.57
$1.86
-
+
Add to cart
130B

BOLT-FLANGED, 10X50

Part #: 130CA1050 Required per assembly: 5
$3.81
$2.66
-
+
Add to cart
130C

BOLT-FLANGED, 10X65

Part #: 130CA1065 Required per assembly: 1
$2.48
$1.80
-
+
Add to cart
11058

BRACKET, MOUNT, ENGINE, RR

Part #: 11058-0118 Required per assembly: 1
$27.46
$22.92
-
+
Add to cart
13272

PLATE, MOUNT, ENGINE, RH

Part #: 13272-4071 Required per assembly: 1
$17.93
$14.94
-
+
Add to cart
13272A

PLATE, MOUNT, ENGINE, LH

Part #: 13272-4202 Required per assembly: 1
$6.63
$5.09
-
+
Add to cart
13280

HOLDER, RH

Part #: 13280-1350 Required per assembly: 1
$124.17
$123.04
-
+
Add to cart
13280A

HOLDER, LH

Part #: 13280-1407 Required per assembly: 1
$235.48
$231.68
-
+
Add to cart
92015

NUT, FLANGED, 12MM

Part #: 92015-1433 Required per assembly: 1
$9.10
$7.83
-
+
Add to cart
92037

CLAMP

Part #: 92037-1993 Required per assembly: 1
$5.66
$4.40
-
+
Add to cart
92043

PIN, 10.1X12X14

Part #: 92043-4009 Required per assembly: 2
$6.38
$4.92
-
+
Add to cart
92154

BOLT, FLANGED, 10X105

Part #: 92154-1132 Required per assembly: 2
$7.83
$6.79
-
+
Add to cart
92154A

BOLT, FLANGED, 12X160

Part #: 92154-3916 Required per assembly: 1
$19.85
$16.54
-
+
Add to cart
92161

DAMPER

Part #: 92161-2171 Required per assembly: 2
$39.72
$36.55
-
+
Add to cart
92161A

DAMPER

Part #: 92161-2485 Required per assembly: 4
$46.89
$42.92
-
+
Add to cart
