Radiator replacement parts for 2024 Kawasaki Teryx

OEM Parts Kawasaki 2024 Kawasaki Teryx Radiator

Radiator Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 6X10 Part #: 130BA0610 Required per assembly: 4 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
130A	BOLT-FLANGED, 6X16 Part #: 130BA0616 Required per assembly: 1 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
132	BOLT-FLANGED-SMALL, 6X12 Part #: 132BA0612 Required per assembly: 2 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
132A	BOLT-FLANGED-SMALL, 6X20 Part #: 132BA0620 Required per assembly: 3 Note: Sold in multiples of 5 only $2.57 $1.86 - + Add to cart
132B	BOLT-FLANGED-SMALL, 6X40 Part #: 132BA0640 Required per assembly: 3 $4.58 $3.60 - + Add to cart
132C	BOLT-FLANGED-SMALL, 6X80 Part #: 132BA0680 Required per assembly: 1 $4.58 $3.60 - + Add to cart
480	CIRCLIP-TYPE-C, 12MM Part #: 480J1200 Required per assembly: 1 Note: Sold in multiples of 10 only $0.68 $0.62 - + Add to cart
551	PIN-DOWEL, 4X8 Part #: 551A0408 Required per assembly: 2 Note: Sold in multiples of 10 only $0.84 $0.72 - + Add to cart
670	O, RING, 20MM Part #: 670B2020 Required per assembly: 1 Note: Sold in multiples of 10 only $1.29 $1.02 - + Add to cart
702	TUBE, 5X8X380 Part #: 92192-0884 Required per assembly: 1 $7.96 $6.89 - + Add to cart
11009	GASKET, RESERVOIR, TANK, CAP Part #: 11009-1145 Required per assembly: 1 Note: Sold in multiples of 5 only $1.48 $1.14 - + Add to cart
11012	CAP Part #: 11012-1084 Required per assembly: 1 $1.79 $1.32 - + Add to cart
11056	BRACKET Part #: 11056-7103 Required per assembly: 2 $10.43 $8.88 - + Add to cart
11061	GASKET, WATER, PUMP, COVER Part #: 11061-0731 Required per assembly: 1 $7.26 - + Add to cart
13107	SHAFT, WATER, PUMP Part #: 13107-0719 Required per assembly: 1 $21.96 $18.36 - + Add to cart
13280	HOLDER, BREAKER Part #: 13280-0898 Required per assembly: 1 $2.11 $1.55 - + Add to cart
14092	COVER, HEAT, GUARD, FR Part #: 14092-1060 Required per assembly: 1 Note: CN,US $25.19 $20.93 - + Add to cart
14092A	COVER, HEAT, GUARD, RR Part #: 14092-1061 Required per assembly: 1 $55.71 - + Add to cart
14092B	COVER, CHAMBER Part #: 14092-1142 Required per assembly: 1 $52.26 $47.57 - + Add to cart
14093	COVER, RADIATOR Part #: 14093-0206 Required per assembly: 1 $32.30 $29.38 - + Add to cart
14093A	COVER, HEAT, GUARD, FR Part #: 14093-0561 Required per assembly: 1 Note: CA $25.19 $20.93 - + Add to cart
16142	COVER-PUMP, WATER Part #: 16142-0743 Required per assembly: 1 $65.17 $60.45 - + Add to cart
16160	BODY, THERMOSTAT, LWR Part #: 16160-0734 Required per assembly: 1 $81.56 $75.00 - + Add to cart
16160A	BODY, THERMOSTAT, UPP Part #: 16160-0735 Required per assembly: 1 $68.51 $63.41 - + Add to cart
21008	BREAKER, RAD.FAN, 20A Part #: 21008-0015 Required per assembly: 1 $28.51 $25.89 - + Add to cart
39061	RADIATOR-ASSY Part #: 39061-0850 Required per assembly: 1 $499.40 - + Add to cart
39062	HOSE-COOLING, RR, HEAD- Part #: 39062-0621 Required per assembly: 1 $14.61 $12.30 - + Add to cart
39062A	HOSE-COOLING, THERMO, O Part #: 39062-0669 Required per assembly: 1 $16.20 $13.59 - + Add to cart
39062B	HOSE-COOLING, RESERVOIR-RAD. Part #: 39062-0698 Required per assembly: 1 $2.92 $2.08 - + Add to cart
39062C	HOSE-COOLING, WATER, PUMP, IN Part #: 39062-0891 Required per assembly: 1 $37.32 $34.43 - + Add to cart
39062D	HOSE-COOLING, RADIATOR, OUT Part #: 39062-0892 Required per assembly: 1 $43.44 $39.86 - + Add to cart
39062E	HOSE-COOLING, RADIATOR Part #: 39062-0939 Required per assembly: 1 $64.84 $60.16 - + Add to cart
39192	PIPE-WATER, LH Part #: 39192-0569 Required per assembly: 1 Not Available
39192A	PIPE-WATER, RH Part #: 39192-0675 Required per assembly: 1 $41.34 $37.89 - + Add to cart
43078	RESERVOIR Part #: 43078-0070 Required per assembly: 1 $39.99 $36.80 - + Add to cart

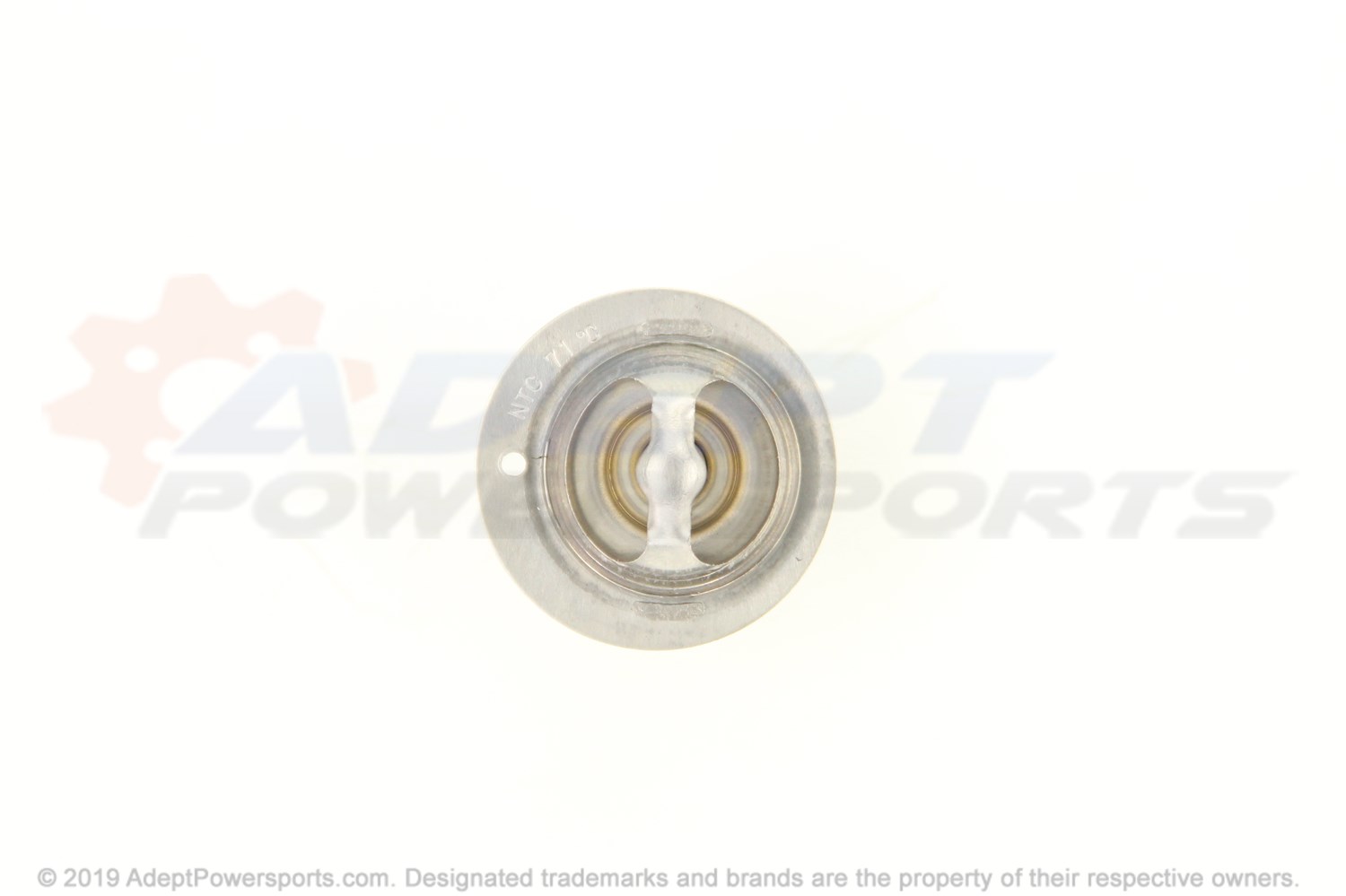

49054	THERMOSTAT Part #: 49054-1055 Required per assembly: 1 $55.63 $50.68 - + Add to cart
49063	SEAL-MECHANICAL, WATER Part #: 49063-1055 Required per assembly: 1 $20.44 $17.19 - + Add to cart
49085	CAP-ASSY-PRESSURE Part #: 49085-0019 Required per assembly: 1 $46.44 $42.41 - + Add to cart
59256	IMPELLER Part #: 59256-0555 Required per assembly: 1 $43.15 $39.60 - + Add to cart
59502	FAN-ASSY Part #: 59502-0637 Required per assembly: 1 $403.49 - + Add to cart
92002	BOLT, 6X22 Part #: 92002-1154 Required per assembly: 1 $4.82 $3.79 - + Add to cart
92005	FITTING Part #: 92005-0851 Required per assembly: 1 $2.32 $1.69 - + Add to cart
92022	WASHER, 6.1X12X1 Part #: 92022-077 Required per assembly: 1 $4.05 $2.99 - + Add to cart
92022A	WASHER, 6.5X20X1.6 Part #: 92200-0283 Required per assembly: 1 Note: Sold in multiples of 5 only $1.47 $1.14 - + Add to cart
92022B	WASHER, 6.2X11X1 Part #: 92022-304 Required per assembly: 3 $3.75 $2.91 - + Add to cart
92022C	WASHER, 6.2X20X2 Part #: 92022-3714 Required per assembly: 2 $4.31 $3.40 - + Add to cart
92037	CLAMP, TUBE Part #: 92037-1461 Required per assembly: 3 $3.99 $3.08 - + Add to cart
92037A	CLAMP, COOLING, HOSE Part #: 92037-1589 Required per assembly: 2 $18.91 $15.79 - + Add to cart
92055	RING-O, 44.7 X 2.4 Part #: 92055-1279 Required per assembly: 1 $7.57 $6.59 - + Add to cart
92071	GROMMET Part #: 92071-1115 Required per assembly: 1 $5.61 $4.36 - + Add to cart
92072	BAND, LONG Part #: 92072-032 Required per assembly: 1 $5.14 $4.02 - + Add to cart
92072A	BAND, L=250 Part #: 92072-1237 Required per assembly: 1 $2.22 $1.63 - + Add to cart
92072B	BAND, L=368.3 Part #: 92072-3872 Required per assembly: 2 $1.66 $1.26 - + Add to cart
92151	BOLT, FLANGED, 6X13 Part #: 92151-1703 Required per assembly: 4 $4.07 $3.23 - + Add to cart
92152	COLLAR Part #: 92152-2844 Required per assembly: 4 $8.78 $7.56 - + Add to cart
92154	BOLT, FLANGED, 6X25 Part #: 92154-0707 Required per assembly: 4 Note: Sold in multiples of 10 only $1.26 $1.00 - + Add to cart
92154A	BOLT, SOCKET, 6X25 Part #: 92154-1142 Required per assembly: 1 Note: Sold in multiples of 5 only $1.71 $1.31 - + Add to cart
92154B	BOLT, FLANGED, 6X12 Part #: 92154-1195 Required per assembly: 2 $1.55 $1.20 - + Add to cart
92161	DAMPER, PIPE, WATER Part #: 92161-1513 Required per assembly: 2 $3.61 $2.80 - + Add to cart
92161A	DAMPER Part #: 92161-2436 Required per assembly: 4 $4.81 $3.77 - + Add to cart
92171	CLAMP, COOLING, HOSE Part #: 92171-0060 Required per assembly: 7 $4.54 $3.57 - + Add to cart
92171A	CLAMP Part #: 92171-0179 Required per assembly: 1 $8.43 $7.23 - + Add to cart
92192	TUBE, BREATHER Part #: 92192-1703 Required per assembly: 1 $5.54 $4.31 - + Add to cart
92210	NUT Part #: 92210-0867 Required per assembly: 2 $2.84 $2.05 - + Add to cart
