Frame replacement parts for 2024 Suzuki RM-Z250

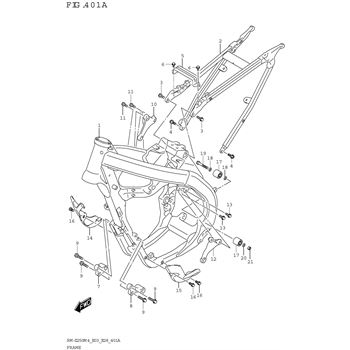

OEM Parts Suzuki 2024 Suzuki RM Z250 Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME Part #: 41100-46K20 Required per assembly: 1 $3,131.72 - + Add to cart
2	RAIL, SEAT Part #: 41200-37K00 Required per assembly: 1 ~~$849.37~~ $724.88 - + Add to cart
3	BOLT, REAR Part #: 09103-08288 Required per assembly: 2 Note: BOLT, HOOK; $5.39 - + Add to cart
4	BOLT (8X20) Part #: 09103-08505 Required per assembly: 2 Note: BOLT, NO.2; $4.84 - + Add to cart
5	BRIDGE, SEAT, RAIL, UPPER Part #: 41542-46K00 Required per assembly: 1 $16.76 - + Add to cart
6	BOLT Part #: 01547-0616A Required per assembly: 2 $3.28 - + Add to cart
7	BRACKET, ENG, MTG, FR, RH Part #: 41911-46K00 Required per assembly: 1 ~~$83.46~~ $72.90 - + Add to cart
8	BRACKET, ENG, MTG, FR, LH Part #: 41921-46K00 Required per assembly: 1 ~~$83.46~~ $72.90 - + Add to cart
9	BOLT (8X30) Part #: 09103-08048 Required per assembly: 4 $6.87 - + Add to cart
10	BRACKET, ENG, MTG, UPPER, RH Part #: 41931-46K00 Required per assembly: 1 ~~$95.02~~ $83.01 - + Add to cart
11	BOLT, REAR Part #: 09103-08288 Required per assembly: 2 Note: BOLT, HOOK; $5.39 - + Add to cart
12	BRACKET, ENG, MTG, UPPER, LH Part #: 41941-46K00 Required per assembly: 1 ~~$95.02~~ $83.01 - + Add to cart
13	BOLT (8X20) Part #: 09103-08505 Required per assembly: 2 Note: BOLT, NO.2; $4.84 - + Add to cart
14	PROTECTOR, FRONT, RH Part #: 42520-28H11 Required per assembly: 1 $21.77 - + Add to cart
15	PROTECTOR, FRONT, LH Part #: 42530-28H20 Required per assembly: 1 ~~$32.93~~ $28.77 - + Add to cart
16	BOLT Part #: 09116-06177 Required per assembly: 3 Note: BOLT, CHAIN GUIDE; $3.81 - + Add to cart
17	ROLLER, CHAIN, CONTROL Part #: 43910-37F00 Required per assembly: 2 ~~$74.07~~ $64.70 - + Add to cart
18	WASHER Part #: 09181-08167 Required per assembly: 2 Note: WASHER (8X16X1.0); $3.22 - + Add to cart
19	BOLT Part #: 09103-08207 Required per assembly: 1 $3.91 - + Add to cart
20	WASHER (8X12X1) Part #: 09181-08111 Required per assembly: 1 Note: WASHER; $3.18 - + Add to cart
21	NUT Part #: 08319-2108A Required per assembly: 1 Note: NUT, T/F SHIFT LEVER; $3.47 - + Add to cart
