Leg Shield replacement parts for 2024 Yamaha Zuma 125

OEM Parts Yamaha 2024 Yamaha Zuma 125 Leg Shield

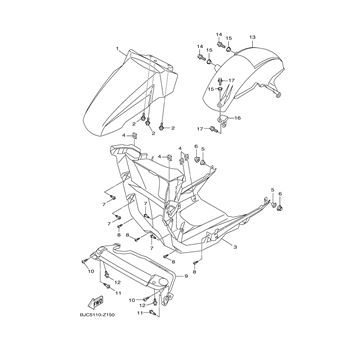

LEG SHIELD Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BODY, COWLING Part #: BBJ-F8351-00-P4 Required per assembly: 1 $39.99 $28.35 - + Add to cart
2	BOLT, WITH, WASHER Part #: 90119-06821-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
3	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
4	BODY, COWLING, 2 Part #: BBJ-F8377-00-P4 Required per assembly: 1 $39.99 $28.35 - + Add to cart
5	BOLT, WITH, WASHER Part #: 90119-06821-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
6	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
7	LEG SHIELD ASSEMBLY Part #: BBJ-F8300-00-00 Required per assembly: 1 $45.99 $32.42 - + Add to cart
8	LABEL, CAUTION, 2 Part #: BJC-F839Y-00-00 Required per assembly: 1 $1.14 $0.56 - + Add to cart
9	NUT, SPRING Part #: 90183-06813-00 Required per assembly: 6 $0.40 $0.31 - + Add to cart
10	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
11	CLAMP Part #: 90464-30804-00 Required per assembly: 1 Not Available
12	HOOK Part #: 1CF-F8379-00-00 Required per assembly: 1 $8.49 $4.71 - + Add to cart
13	BOLT Part #: 90109-068A0-00 Required per assembly: 1 $2.35 $1.66 - + Add to cart
14	MOLE 1 Part #: BBJ-F8345-00-00 Required per assembly: 1 $20.98 $15.00 - + Add to cart
15	LABEL, CAUTION Part #: BJC-F4877-00-00 Required per assembly: 1 $1.14 $0.59 - + Add to cart
16	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
17	SCREW, TRUSS, HEAD, TAPPING Part #: 90169-05001-00 Required per assembly: 2 $0.28 $0.25 - + Add to cart
18	PROTECTOR 1 Part #: BBJ-F834V-00-00 Required per assembly: 1 $12.49 $9.06 - + Add to cart
19	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 1 $0.28 $0.25 - + Add to cart
20	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 3 $1.85 $1.41 - + Add to cart
21	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06801-00 Required per assembly: 2 $0.44 $0.35 - + Add to cart
22	PROTECTOR 2 Part #: BBJ-F834W-00-00 Required per assembly: 1 $12.49 $9.06 - + Add to cart
23	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 1 $0.28 $0.25 - + Add to cart
24	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 3 $1.85 $1.41 - + Add to cart
25	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06801-00 Required per assembly: 2 $0.44 $0.35 - + Add to cart
26	PANEL 1 Part #: BBJ-F835U-00-00 Required per assembly: 1 $17.48 $11.46 - + Add to cart
27	BOLT, BUTTON, HEAD Part #: 92017-06014-00 Required per assembly: 2 $4.59 $2.74 - + Add to cart
28	RIVET Part #: 90269-06806-00 Required per assembly: 2 $2.20 $1.68 - + Add to cart
29	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 1 $0.28 $0.25 - + Add to cart
30	PANEL 2 Part #: BBJ-F835V-00-00 Required per assembly: 1 $17.48 $11.46 - + Add to cart
31	BOLT, BUTTON, HEAD Part #: 92017-06014-00 Required per assembly: 2 $4.59 $2.74 - + Add to cart
32	RIVET Part #: 90269-06806-00 Required per assembly: 2 $2.20 $1.68 - + Add to cart
33	NUT, SPRING Part #: 90183-05827-00 Required per assembly: 1 $0.28 $0.25 - + Add to cart
34	PLATE Part #: BBJ-F8336-00-00 Required per assembly: 1 $4.45 $3.30 - + Add to cart
35	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 2 $1.85 $1.41 - + Add to cart
36	COVER, HEADLIGHT Part #: BBJ-H4144-00-00 Required per assembly: 1 $12.49 $8.18 - + Add to cart
37	NUT, SPRING Part #: 90183-06813-00 Required per assembly: 2 $0.40 $0.31 - + Add to cart
38	DAMPER, PLATE Part #: 90520-05825-00 Required per assembly: 2 $0.40 $0.26 - + Add to cart
39	DAMPER, PLATE Part #: 90520-06806-00 Required per assembly: 1 $0.65 $0.42 - + Add to cart
40	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 2 $1.85 $1.41 - + Add to cart
