Control Cable replacement parts for 2024 Yamaha Jet Blaster

OEM Parts Yamaha 2024 Yamaha Jet Blaster Control Cable

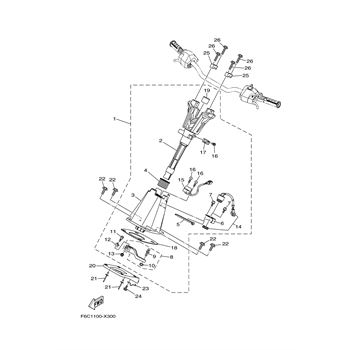

CONTROL CABLE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE, STEERING Part #: F4L-61481-02-00 Required per assembly: 1 $229.99 $226.78 - + Add to cart
2	PACKING C Part #: F1B-61438-00-00 Required per assembly: 1 $2.99 $2.72 - + Add to cart
3	NUT Part #: F1B-6151S-01-00 Required per assembly: 1 $14.49 $14.35 - + Add to cart
4	STUD, JOINT, BALL Part #: F1B-61461-02-00 Required per assembly: 1 $95.98 $95.24 - + Add to cart
5	BALL JOINT ASSEMBLY Part #: F2N-61460-00-00 Required per assembly: 1 $48.49 $48.35 - + Add to cart
6	WASHER, PLATE Part #: 90201-06906-00 Required per assembly: 2 $3.49 $3.18 - + Add to cart
7	NUT Part #: 9538R-06700-00 Required per assembly: 1 $6.11 $1.13 - + Add to cart
8	MOTOR ASSEMBLY Part #: F6C-6140B-10-00 Required per assembly: 1 $1,316.99 $1,310.77 - + Add to cart
9	HOUSING Part #: F4P-6152K-00-00 Required per assembly: 1 $216.99 $214.69 - + Add to cart
10	SEAL Part #: F3J-63262-00-00 Required per assembly: 1 $20.77 $18.88 - + Add to cart
11	PLUG Part #: F3J-613D0-00-00 Required per assembly: 1 $13.29 $12.08 - + Add to cart
12	BOLT, STUD Part #: F3J-67369-00-00 Required per assembly: 3 $6.99 $6.35 - + Add to cart
13	COVER Part #: F3Y-6143J-00-00 Required per assembly: 1 $59.90 - + Add to cart
14	SCREW Part #: F3Y-68198-00-00 Required per assembly: 10 $3.99 $3.61 - + Add to cart
15	CONTROL UNIT Part #: F6C-68197-00-00 Required per assembly: 1 $879.99 $864.85 - + Add to cart
16	COLLAR Part #: 90387-06119-00 Required per assembly: 3 $4.90 $4.84 - + Add to cart
17	DAMPER, IGNITION, COIL Part #: 6A0-82317-01-00 Required per assembly: 3 $7.49 $7.03 - + Add to cart
18	BOLT Part #: F3J-613B4-20-00 Required per assembly: 3 $4.99 $4.54 - + Add to cart
19	PLATE Part #: F4P-61256-00-00 Required per assembly: 1 $62.99 $61.98 - + Add to cart
20	BOLT, HEXAGON Part #: F3J-613B3-00-00 Required per assembly: 3 $3.99 $3.61 - + Add to cart
21	SCREW Part #: F3J-68198-20-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
22	WASHER, PLAIN Part #: F3J-613C3-10-00 Required per assembly: 2 $4.99 $4.54 - + Add to cart
23	MAGNET, SENSOR Part #: F3J-60428-00-00 Required per assembly: 1 $28.24 $25.67 - + Add to cart
24	MAGNET, SENSOR Part #: F3J-60428-00-00 Required per assembly: 1 $28.24 $25.67 - + Add to cart
25	WIRE HARNESS ASSY Part #: F4N-68270-00-00 Required per assembly: 1 $502.99 $494.41 - + Add to cart
26	SCREW Part #: F3J-68198-00-00 Required per assembly: 4 $3.99 $3.61 - + Add to cart
27	CLAMP Part #: F3J-68273-00-00 Required per assembly: 2 $3.49 $3.18 - + Add to cart
28	MOTOR Part #: F4P-68352-00-00 Required per assembly: 1 $318.49 $314.48 - + Add to cart
29	BOLT Part #: F3J-613B4-00-00 Required per assembly: 1 $4.99 $4.54 - + Add to cart
30	PLATE Part #: F3Y-61348-00-00 Required per assembly: 1 $4.99 $4.54 - + Add to cart
31	SCREW Part #: F3J-68198-20-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
32	BOLT Part #: F3J-613B4-10-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
33	SPACER Part #: F3J-61492-00-00 Required per assembly: 1 $7.99 $7.24 - + Add to cart
34	GEAR 1 Part #: F4P-60211-00-00 Required per assembly: 1 $117.48 $116.39 - + Add to cart
35	CLAMP Part #: F4P-68273-00-00 Required per assembly: 2 $4.49 $4.08 - + Add to cart
36	O-RING Part #: F4P-613A5-10-00 Required per assembly: 1 $4.99 $4.54 - + Add to cart
37	SHAFT, 1 Part #: F3Y-60221-10-00 Required per assembly: 1 $26.59 $24.18 - + Add to cart
38	BUSH Part #: F3Y-61344-00-00 Required per assembly: 2 $4.99 $4.54 - + Add to cart
39	O-RING Part #: F4P-613A5-00-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
40	BUSH Part #: F4P-61344-00-00 Required per assembly: 1 $5.99 $5.44 - + Add to cart
41	SENSOR ANGLE Part #: F4P-85887-00-00 Required per assembly: 1 $170.49 $167.80 - + Add to cart
42	BOLT Part #: F3J-613B4-00-00 Required per assembly: 1 $4.99 $4.54 - + Add to cart
43	PLATE Part #: F4P-61348-00-00 Required per assembly: 1 $25.98 $25.67 - + Add to cart
44	SCREW Part #: F3J-68198-20-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
45	BOLT Part #: F3J-613B4-10-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
46	SPACER Part #: F3J-61492-00-00 Required per assembly: 1 $7.99 $7.24 - + Add to cart
47	O-RING Part #: F4P-613A5-10-00 Required per assembly: 1 $4.99 $4.54 - + Add to cart
48	SHAFT, 2 Part #: F5G-60222-00-00 Required per assembly: 1 Not Available
49	BUSH Part #: F3Y-61344-00-00 Required per assembly: 2 $4.99 $4.54 - + Add to cart
50	O-RING Part #: F4P-613A5-00-00 Required per assembly: 2 $3.99 $3.61 - + Add to cart
51	BUSH Part #: F4P-61344-00-00 Required per assembly: 1 $5.99 $5.44 - + Add to cart
52	PLATE Part #: F4P-U8285-00-00 Required per assembly: 1 $19.37 $14.35 - + Add to cart
53	BOLT, WITH, WASHER Part #: 90119-06894-00 Required per assembly: 1 $2.02 $1.51 - + Add to cart
54	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06897-00 Required per assembly: 1 Not Available
55	BOLT, WITH, WASHER Part #: 90119-08852-00 Required per assembly: 2 $9.16 $4.22 - + Add to cart
56	NUT, LOCK Part #: F3Y-U142L-00-00 Required per assembly: 3 $7.12 $2.80 - + Add to cart
57	TRIM ARM ASSEMBLY Part #: F6C-6150E-10-00 Required per assembly: 1 $123.48 $122.44 - + Add to cart
58	BOLT, JOINT Part #: 6R7-42316-00-00 Required per assembly: 1 $38.22 $34.75 - + Add to cart
59	SHIFT ARM ASSEMBLY Part #: F3Y-6150F-00-00 Required per assembly: 1 $65.98 $65.00 - + Add to cart
60	BOLT, JOINT Part #: 6R7-42316-00-00 Required per assembly: 1 $38.22 $34.75 - + Add to cart
61	ROD ASSEMBLY Part #: F6C-6150A-00-00 Required per assembly: 1 $83.98 $83.14 - + Add to cart
62	ROD ASSEMBLY 2 Part #: F3J-6150D-00-00 Required per assembly: 1 $51.99 $51.39 - + Add to cart
63	BASE, CLAMP Part #: F1W-U828M-00-00 Required per assembly: 1 $6.11 $1.36 - + Add to cart
64	CLAMP Part #: 90464-32801-00 Required per assembly: 1 Note: Sold in multiples of 5 only $6.11 $1.36 - + Add to cart
65	RIVET, BLIND Part #: 90267-48806-00 Required per assembly: 1 Note: Sold in multiples of 10 only $7.12 $2.27 - + Add to cart
