Electrical 4 replacement parts for 2024 Yamaha 255 FSH Sport E

OEM Parts Yamaha 2024 Yamaha 255 FSH Sport E Electrical 4

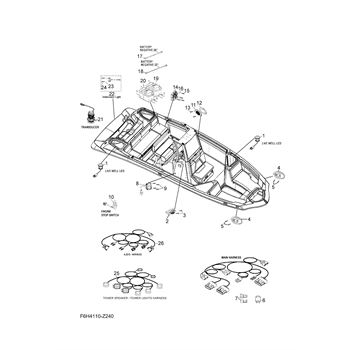

ELECTRICAL 4 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SENSOR, COMPASS Part #: F3M-U8K22-01-00 Required per assembly: 1 ~~$110.15~~ $86.17 - + Add to cart
2	HOLDER Part #: F6A-U827C-00-00 Required per assembly: 1 ~~$294.76~~ $250.98 - + Add to cart
3	DISPLAY UNIT Part #: F7F-U0870-01-00 Required per assembly: 1 ~~$2,526.98~~ $2,426.44 - + Add to cart
4	BRACKET, CASE Part #: F6H-U591F-20-00 Required per assembly: 1 Not Available
5	PANEL, METER, 1 Part #: F6H-U82B3-10-00 Required per assembly: 1 Not Available
6	WIRE HARNESS 4 Part #: F6H-U827F-10-00 Required per assembly: 1 Not Available
7	BREAKER PANEL ASSEMBLY Part #: F6H-U8346-00-00 Required per assembly: 1 ~~$473.26~~ $413.64 - + Add to cart
8	BOW & STERN LIGHT SWITCH ASSY Part #: F6H-U8029-10-00 Required per assembly: 1 ~~$114.98~~ $86.35 - + Add to cart
9	ROOM LIGHT SWITCH ASSEMBLY Part #: F6H-U8026-00-00 Required per assembly: 1 ~~$101.98~~ $76.72 - + Add to cart
10	ROOM LIGHT SWITCH ASSEMBLY Part #: F6H-U8026-10-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
11	ROOM LIGHT SWITCH ASSEMBLY Part #: F6H-U8026-20-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
12	ROOM LIGHT SWITCH ASSEMBLY Part #: F6H-U8026-30-00 Required per assembly: 1 Not Available
13	ROOM LIGHT SWITCH ASSEMBLY Part #: F6H-U8026-40-00 Required per assembly: 1 ~~$99.98~~ $75.54 - + Add to cart
14	SWITCH ASSEMBLY Part #: F6H-U8090-10-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
15	SWITCH ASSEMBLY Part #: F6H-U8090-20-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
16	SWITCH, LIVE, WELL Part #: F6H-U835G-00-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
17	SWITCH, LIVE, WELL Part #: F6H-U835G-10-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
18	SWITCH, WASH, DOWN Part #: F6H-U835J-00-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
19	SWITCH, WASH, DOWN Part #: F6H-U835J-10-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
20	BILGE PUMP SWITCH ASSEMBLY Part #: F6H-U8012-00-00 Required per assembly: 1 ~~$101.98~~ $76.72 - + Add to cart
21	HORN SWITCH ASSEMBLY Part #: F6H-U8011-00-00 Required per assembly: 1 ~~$124.43~~ $92.22 - + Add to cart
22	DISPLAY UNIT Part #: F7F-U8K12-00-00 Required per assembly: 1 Not Available
23	BRACKET, METER Part #: F6D-U8238-00-00 Required per assembly: 2 Not Available
24	SCREW, PAN, HEAD Part #: 90157-08S08-00 Required per assembly: 4 ~~$6.11~~ $1.98 - + Add to cart
25	WASHER, #8, FLAT Part #: 90201-08S00-00 Required per assembly: 4 ~~$4.07~~ $0.89 - + Add to cart
26	WASHER, #8, FLAT Part #: 90201-08S00-00 Required per assembly: 10 ~~$4.07~~ $0.89 - + Add to cart
27	WASHER, LOCK, (#8) Part #: 90204-08S00-00 Required per assembly: 10 ~~$6.11~~ $1.87 - + Add to cart
28	NUT Part #: 90170-08S00-00 Required per assembly: 10 Note: FOR-000821~ SEE NOTE FOR REF. # 9 ~~$6.11~~ $1.87 - + Add to cart
29	PANEL, SIDE, LH Part #: F6H-U885D-00-00 Required per assembly: 1 ~~$120.34~~ $93.73 - + Add to cart
30	WASHER Part #: 90209-10SB1-00 Required per assembly: 4 ~~$6.11~~ $1.87 - + Add to cart
31	WASHER, LOCK, (#10) Part #: 90204-10S00-00 Required per assembly: 4 ~~$7.12~~ $3.69 - + Add to cart
32	NUT Part #: 90170-10S00-00 Required per assembly: 4 ~~$6.11~~ $2.20 - + Add to cart
33	PANEL, SIDE, RH Part #: F6H-U885E-00-00 Required per assembly: 1 ~~$418.19~~ $384.95 - + Add to cart
34	PANEL, BREAKER, 1 Part #: F6H-U82B4-00-00 Required per assembly: 1 ~~$284.56~~ $243.42 - + Add to cart
35	SWITCH ASSEMBLY Part #: F6H-U8090-00-00 Required per assembly: 1 ~~$89.98~~ $67.66 - + Add to cart
36	SWITCH, ASSEMBLY, BLOWER Part #: F6H-U8022-00-00 Required per assembly: 1 ~~$112.19~~ $84.66 - + Add to cart
37	WIRE HARNESS 5 Part #: F6H-U827G-00-00 Required per assembly: 1 Not Available
38	LABEL 4 Part #: F6H-U419E-00-00 Required per assembly: 1 ~~$67.31~~ $52.90 - + Add to cart
39	WASHER Part #: 90209-10SB1-00 Required per assembly: 4 ~~$6.11~~ $1.87 - + Add to cart
40	WASHER, LOCK, (#10) Part #: 90204-10S00-00 Required per assembly: 4 ~~$7.12~~ $3.69 - + Add to cart
41	NUT Part #: 90170-10S00-00 Required per assembly: 4 ~~$6.11~~ $2.20 - + Add to cart
42	CLAMP Part #: 90464-32801-00 Required per assembly: 3 Note: Sold in multiples of 5 only ~~$6.11~~ $1.98 - + Add to cart
43	SCREW, #8, X, 3/4" Part #: 90167-08S12-00 Required per assembly: 3 ~~$6.11~~ $1.29 - + Add to cart
44	PANEL SWITCH ASSEMBLY Part #: F3F-82570-00-00 Required per assembly: 1 ~~$358.99~~ $353.16 - + Add to cart
45	MAIN SWITCH ASSEMBLY Part #: F3F-82510-00-00 Required per assembly: 1 ~~$127.98~~ $126.98 - + Add to cart
46	ENGINE STOP SWITCH ASSEMBLY Part #: 688-82575-02-00 Required per assembly: 1 ~~$38.99~~ $37.77 - + Add to cart
47	LANYARD, STOP, SWITCH Part #: 682-82556-00-00 Required per assembly: 1 $11.07 - + Add to cart
48	STAY, CORD, CLAMP Part #: 64D-82581-00-00 Required per assembly: 1 ~~$25.98~~ $25.84 - + Add to cart
49	PANEL SWITCH ASSEMBLY Part #: F3F-82570-10-00 Required per assembly: 1 ~~$376.49~~ $369.09 - + Add to cart
50	SWITCH ASSEMBLY Part #: F3F-8259E-00-00 Required per assembly: 2 ~~$62.99~~ $61.98 - + Add to cart
51	RECEPTACLE, ACCESSORY Part #: F2A-U8284-00-00 Required per assembly: 1 ~~$45.89~~ $33.23 - + Add to cart
52	RECEPTACLE, ACCESSORY Part #: F0K-U8284-00-00 Required per assembly: 1 ~~$20.39~~ $17.59 - + Add to cart
53	RECEPTACLE, ACCESSORY Part #: F6A-U8284-00-00 Required per assembly: 1 ~~$48.95~~ $39.28 - + Add to cart
54	ANTENA, GPS Part #: F4Y-U8K1L-01-00 Required per assembly: 1 $571.97 - + Add to cart
55	SCREW, #10, X, 3/4 Part #: 90167-10S12-00 Required per assembly: 4 ~~$6.11~~ $1.87 - + Add to cart
56	SCREW, 8-32, X, 1 Part #: 90157-08S16-00 Required per assembly: 4 ~~$4.07~~ $0.89 - + Add to cart
57	WASHER, #8, FLAT Part #: 90201-08S00-00 Required per assembly: 4 ~~$4.07~~ $0.89 - + Add to cart
58	NUT, SELF-LOCKING Part #: 90185-08S00-00 Required per assembly: 4 ~~$7.12~~ $2.31 - + Add to cart
59	EMBLEM, 4 Part #: F3F-U4124-00-00 Required per assembly: 1 ~~$48.95~~ $42.31 - + Add to cart
