Front Fork replacement parts for 2024 Yamaha MT-09

OEM Parts Yamaha 2024 Yamaha MT 09 Front Fork

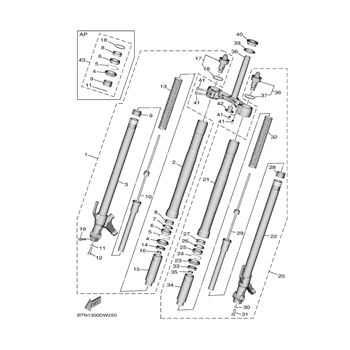

FRONT FORK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT FORK ASSY (R.H) Part #: BME-23103-00-00 Required per assembly: 1 $727.62 $661.47 - + Add to cart
2	TUBE, OUTER, (L.H) Part #: B7N-23126-00-00 Required per assembly: 1 $387.99 $377.23 - + Add to cart
3	INNER TUBE COMP2 Part #: BME-23120-00-00 Required per assembly: 1 $377.99 $369.25 - + Add to cart
4	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
5	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
6	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
7	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
8	METAL, SLIDE, 1 Part #: 1RC-23125-00-00 Required per assembly: 1 $16.48 $12.17 - + Add to cart
9	METAL, SLIDE Part #: 4FM-23171-40-00 Required per assembly: 1 $25.98 $20.02 - + Add to cart
10	CYLINDER, COMP, FRONT, FORK Part #: BME-23170-10-00 Required per assembly: 1 $297.99 $292.39 - + Add to cart
11	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
12	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
13	SPRING, FRONT, FORK Part #: BME-23141-00-00 Required per assembly: 1 $100.98 $91.42 - + Add to cart
14	WASHER Part #: 5VY-12277-00-00 Required per assembly: 1 $14.49 $10.18 - + Add to cart
15	SPACER Part #: 5VY-23118-00-00 Required per assembly: 1 $62.99 $51.77 - + Add to cart
16	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
17	BOLT, CAP Part #: BS2-23111-13-00 Required per assembly: 1 $292.99 $287.33 - + Add to cart
18	O-RING Part #: 3XJ-23147-L2-00 Required per assembly: 1 $4.75 $3.90 - + Add to cart
19	BOLT, HEXAGON, SOCKET, HEAD Part #: 91314-08040-00 Required per assembly: 1 $8.49 $5.15 - + Add to cart
20	FRONT FORK ASSY (L.H) Part #: BME-23102-00-00 Required per assembly: 1 $727.62 $661.47 - + Add to cart
21	TUBE, OUTER, (L.H) Part #: B7N-23126-00-00 Required per assembly: 1 $387.99 $377.23 - + Add to cart
22	INNER TUBE COMP1 Part #: BME-23110-00-00 Required per assembly: 1 $377.99 $369.25 - + Add to cart
23	SEAL, DUST Part #: 4EB-23144-00-00 Required per assembly: 1 $24.98 $19.14 - + Add to cart
24	RING, SNAP Part #: 26H-23156-00-00 Required per assembly: 1 $8.49 $6.49 - + Add to cart
25	OIL SEAL Part #: 4EB-23145-01-00 Required per assembly: 1 $31.98 $23.83 - + Add to cart
26	WASHER, OIL, SEAL Part #: 36Y-23146-10-00 Required per assembly: 1 $30.98 $21.68 - + Add to cart
27	METAL, SLIDE, 1 Part #: 1RC-23125-00-00 Required per assembly: 1 $16.48 $12.17 - + Add to cart
28	METAL, SLIDE Part #: 4FM-23171-40-00 Required per assembly: 1 $25.98 $20.02 - + Add to cart
29	CYLINDER, COMP, FRONT, FORK Part #: BME-23170-00-00 Required per assembly: 1 $297.99 $292.39 - + Add to cart
30	GASKET Part #: 509-23158-L0-00 Required per assembly: 1 $17.98 $14.09 - + Add to cart
31	BOLT, HEXAGON, SOCKET, HEAD Part #: 3D8-23181-00-00 Required per assembly: 1 $9.49 $7.50 - + Add to cart
32	SPRING, FRONT, FORK Part #: BME-23141-00-00 Required per assembly: 1 $100.98 $91.42 - + Add to cart
33	WASHER Part #: 5VY-12277-00-00 Required per assembly: 1 $14.49 $10.18 - + Add to cart
34	SPACER Part #: 5VY-23118-00-00 Required per assembly: 1 $62.99 $51.77 - + Add to cart
35	NUT Part #: 3LC-23357-00-00 Required per assembly: 1 $7.49 $6.31 - + Add to cart
36	BOLT, CAP Part #: BS2-23111-03-00 Required per assembly: 1 $298.99 $292.86 - + Add to cart
37	O-RING Part #: 3XJ-23147-L2-00 Required per assembly: 1 $4.75 $3.90 - + Add to cart
38	UNDER BRACKET COMP. Part #: BME-23340-00-00 Required per assembly: 1 $410.99 $401.25 - + Add to cart
