OEM Parts Yamaha 2024 Yamaha MT 09 Seat

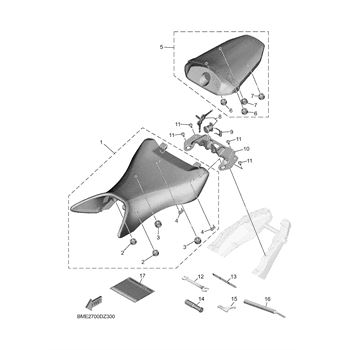

2024 Yamaha MT-09 MT09RCB BME41 - Seat

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

SINGLE SEAT ASSEMBLY

Part #: BME-24710-00-00 Required per assembly: 1
$237.99
$227.24
-
+
Add to cart
2

PAD, SEAT

Part #: 5JW-24741-00-00 Required per assembly: 2
$5.99
$5.07
-
+
Add to cart
3

STOPPER, MAIN, STAND

Part #: 371-27114-00-00 Required per assembly: 2
$8.49
$5.70
-
+
Add to cart
4

STOPPER, UPPER, MOUNT

Part #: 682-44532-01-00 Required per assembly: 2
$2.95
$2.78
-
+
Add to cart
5

TANDEM SEAT ASSY

Part #: BME-24750-00-00 Required per assembly: 1
$114.98
$97.61
-
+
Add to cart
6

PAD, SEAT

Part #: 5JW-24741-00-00 Required per assembly: 2
$5.99
$5.07
-
+
Add to cart
7

STOPPER, MAIN, STAND

Part #: B7N-27114-00-00 Required per assembly: 2
$4.20
$2.93
-
+
Add to cart
8

KEY SET

Part #: BME-82021-00-00 Required per assembly: 1
$42.99
$34.34
-
+
Add to cart
9

SPRING, LOCK, 2

Part #: 59C-2176V-00-00 Required per assembly: 1
$5.99
$4.28
-
+
Add to cart
10

BRACKET, SEAT, LOCK

Part #: BME-2478X-00-00 Required per assembly: 1
$49.99
$41.41
-
+
Add to cart
11

BOLT

Part #: 90111-06029-00 Required per assembly: 4
$6.49
$4.63
-
+
Add to cart
12

SPANNER 12-14

Part #: 33M-28125-00-00 Required per assembly: 1
$10.49
$7.80
-
+
Add to cart
13

DRIVER

Part #: 2GV-28152-00-00 Required per assembly: 1
$5.99
$3.67
-
+
Add to cart
14

GRIP, DRIVER

Part #: 2H7-28151-00-00 Required per assembly: 1
$7.49
$6.31
-
+
Add to cart
15

SPANNER, SPECIAL

Part #: BME-28135-00-00 Required per assembly: 1
$16.48
$12.29
-
+
Add to cart
16

HANDLE, SPANNER

Part #: BME-28138-00-00 Required per assembly: 1
Not Available
17

POUCH

Part #: B7N-28186-00-00 Required per assembly: 1
$19.48
$15.50
-
+
Add to cart
