Intake 2 replacement parts for 2024 Yamaha MT-09

OEM Parts Yamaha 2024 Yamaha MT 09 Intake 2

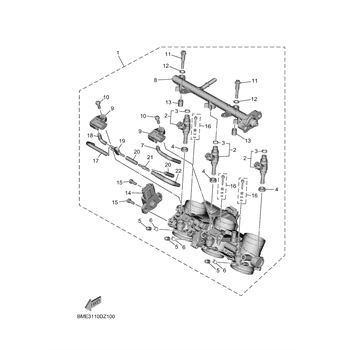

INTAKE 2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	THROTTLE BODY ASSY Part #: BME-13750-00-00 Required per assembly: 1 $1,534.14 $1,394.67 - + Add to cart
2	INJECTOR Part #: B7N-13761-00-00 Required per assembly: 3 $98.98 $84.72 - + Add to cart
3	O-RING Part #: 5PS-14147-00-00 Required per assembly: 1 $13.49 $9.14 - + Add to cart
4	GASKET, MANIFOLD Part #: 8FP-13556-00-00 Required per assembly: 3 $15.49 $12.35 - + Add to cart
5	CAP Part #: 895-14169-00-00 Required per assembly: 3 $5.99 $3.93 - + Add to cart
6	CLIP, PIPE Part #: 8A7-14139-00-00 Required per assembly: 3 $9.49 $6.67 - + Add to cart
7	HOSE, VACUUM, SENSING, 4 Part #: 68V-13533-00-00 Required per assembly: 1 $11.35 $10.72 - + Add to cart
8	PIPE INLET ASSEMBLY Part #: B7N-13930-00-00 Required per assembly: 1 $250.99 $206.48 - + Add to cart
9	SENSOR, PRESSURE Part #: 1WS-82380-00-00 Required per assembly: 2 $209.99 $180.71 - + Add to cart
10	SCREW Part #: 2C0-14216-00-00 Required per assembly: 2 $4.20 $2.98 - + Add to cart
11	BOLT 1 Part #: 8HG-13573-00-00 Required per assembly: 2 $11.49 $9.62 - + Add to cart
12	WASHER Part #: 8GL-13571-00-00 Required per assembly: 2 $4.40 $3.30 - + Add to cart
13	COLLAR Part #: 8HG-14534-00-00 Required per assembly: 2 $34.99 $26.54 - + Add to cart
14	THROTTLE SENSOR AS Part #: B3L-85885-01-00 Required per assembly: 1 $118.98 $100.61 - + Add to cart
15	SCREW Part #: 8CC-14216-10-00 Required per assembly: 2 $8.99 $7.03 - + Add to cart
16	PILOT SCREW SET Part #: 2C0-14105-00-00 Required per assembly: 3 $37.99 $30.01 - + Add to cart
17	PIPE 1 Part #: 5FL-14348-00-00 Required per assembly: 1 $21.39 $20.19 - + Add to cart
18	PIPE Part #: 8FP-14349-00-00 Required per assembly: 1 $14.49 $9.63 - + Add to cart
19	NIPPLE Part #: 3XV-14251-00-00 Required per assembly: 1 $33.99 $24.68 - + Add to cart
20	PIPE 1 Part #: 5FL-14348-10-00 Required per assembly: 2 $6.49 $4.31 - + Add to cart
21	PIPE, JOINT, 1 Part #: 68V-24376-00-00 Required per assembly: 1 $18.35 $17.24 - + Add to cart
22	HOSE, VACUUM, SENSING, 1 Part #: B7N-13542-00-00 Required per assembly: 1 $17.48 $14.48 - + Add to cart
23	CLIP Part #: 90467-11106-00 Required per assembly: 3 $4.04 $2.68 - + Add to cart
24	PIPE Part #: BME-14465-10-00 Required per assembly: 2 $6.49 $5.13 - + Add to cart
25	PIPE Part #: BME-14466-10-00 Required per assembly: 1 $8.49 $7.15 - + Add to cart
26	HOSE Part #: 90445-10829-00 Required per assembly: 1 $4.65 $3.70 - + Add to cart
27	CLIP Part #: 90467-100A1-00 Required per assembly: 5 $8.49 $6.27 - + Add to cart
28	WAY 3 Part #: 90413-06031-00 Required per assembly: 2 $9.49 $8.06 - + Add to cart
29	PIPE Part #: BME-1443J-10-00 Required per assembly: 1 $19.48 $16.39 - + Add to cart
30	CLIP Part #: 90467-090A2-00 Required per assembly: 1 $4.75 $2.45 - + Add to cart
31	CLIP Part #: 90467-090A2-00 Required per assembly: 1 $4.75 $2.45 - + Add to cart
