Middle Drive Gear replacement parts for 2024 Yamaha Kodiak 450

OEM Parts Yamaha 2024 Yamaha Kodiak 450 Middle Drive Gear

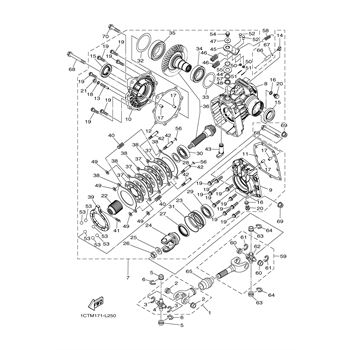

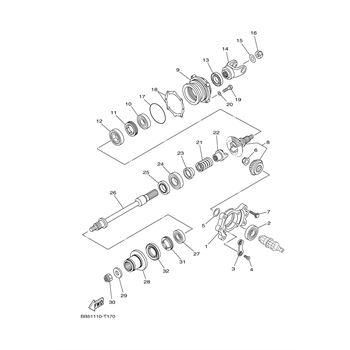

MIDDLE DRIVE GEAR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HOUSING, BEARING Part #: 5GH-17521-00-00 Required per assembly: 1 ~~$98.98~~ $89.74 - + Add to cart
2	BEARING (5X5) Part #: 93306-20627-00 Required per assembly: 1 ~~$82.98~~ $66.75 - + Add to cart
3	PLATE, BEARING, COVER Part #: 11H-15383-02-00 Required per assembly: 2 ~~$15.49~~ $10.83 - + Add to cart
4	SCREW Part #: 90149-08013-00 Required per assembly: 4 ~~$9.49~~ $6.12 - + Add to cart
5	SHIM, PINION, (0.1T) Part #: 52G-17531-01-00 Required per assembly: 1 Note: UR ~~$2.89~~ $2.40 - + Add to cart
5	SHIM, PINION, (0.15T) Part #: 52G-17531-11-00 Required per assembly: 1 Note: UR ~~$2.89~~ $2.40 - + Add to cart
5	SHIM, PINION, (0.4T) Part #: 52G-17531-41-00 Required per assembly: 1 Note: UR ~~$8.49~~ $6.31 - + Add to cart
5	SHIM, PINION, (0.2T) Part #: 52G-17531-21-00 Required per assembly: 1 Note: UR ~~$8.49~~ $6.31 - + Add to cart
5	SHIM, PINION, (0.5T) Part #: 52G-17531-51-00 Required per assembly: 1 Note: UR ~~$7.49~~ $6.31 - + Add to cart
5	SHIM, PINION, (0.3T) Part #: 52G-17531-31-00 Required per assembly: 1 Note: UR ~~$7.49~~ $6.31 - + Add to cart
6	NUT Part #: 90179-22015-00 Required per assembly: 1 ~~$32.99~~ $24.54 - + Add to cart
7	BOLT, FLANGE Part #: 90105-08150-00 Required per assembly: 6 ~~$4.95~~ $4.07 - + Add to cart
8	PINION SET Part #: 4WV-17530-10-00 Required per assembly: 1 ~~$299.99~~ $294.60 - + Add to cart
9	HOUSING, BEARING Part #: 5GH-17551-10-00 Required per assembly: 1 ~~$120.98~~ $108.97 - + Add to cart
10	BEARING (8R9) Part #: 93306-30536-00 Required per assembly: 1 ~~$33.99~~ $29.32 - + Add to cart
11	NUT, SPEC'L, SHAPE Part #: 90179-65305-00 Required per assembly: 1 ~~$47.99~~ $37.53 - + Add to cart
12	BEARING Part #: 93306-20712-00 Required per assembly: 1 ~~$86.98~~ $71.93 - + Add to cart
13	OIL SEAL Part #: 93102-35012-00 Required per assembly: 1 ~~$24.98~~ $19.05 - + Add to cart
14	YOKE, JOINT Part #: 1D9-17556-10-00 Required per assembly: 1 ~~$117.98~~ $98.84 - + Add to cart
15	WASHER, PLATE Part #: 90201-166R6-00 Required per assembly: 1 ~~$18.48~~ $12.94 - + Add to cart
16	NUT Part #: 90179-16006-00 Required per assembly: 1 ~~$19.48~~ $16.09 - + Add to cart
17	O-RING (14X) Part #: 93210-78544-00 Required per assembly: 1 ~~$13.49~~ $10.45 - + Add to cart
18	SHIM, PINION, (0.1T) Part #: 5GH-17531-00-00 Required per assembly: 2 Note: UR ~~$8.49~~ $6.31 - + Add to cart
18	SHIM, PINION, (0.15T) Part #: 5GH-17531-10-00 Required per assembly: 2 Note: UR ~~$7.49~~ $6.31 - + Add to cart
18	SHIM, PINION, (0.2T) Part #: 5GH-17531-20-00 Required per assembly: 2 Note: UR ~~$7.49~~ $6.29 - + Add to cart
18	SHIM, PINION, (0.3T) Part #: 5GH-17531-30-00 Required per assembly: 2 Note: UR ~~$7.49~~ $6.31 - + Add to cart
18	SHIM, PINION, (0.6T) Part #: 5GH-17531-60-00 Required per assembly: 2 Note: UR ~~$7.49~~ $6.29 - + Add to cart
18	SHIM, PINION, (0.5T) Part #: 5GH-17531-50-00 Required per assembly: 2 Note: UR ~~$7.49~~ $6.31 - + Add to cart
18	SHIM, PINION, (0.4T) Part #: 5GH-17531-40-00 Required per assembly: 2 Note: UR ~~$5.00~~ $3.30 - + Add to cart
19	BOLT, HEXAGON Part #: 97017-08030-00 Required per assembly: 4 ~~$10.49~~ $6.73 - + Add to cart
20	WASHER, PLAIN, (663) Part #: 92990-08600-00 Required per assembly: 4 ~~$2.79~~ $2.65 - + Add to cart
21	SPRING, COMPRESSION Part #: 90501-650L5-00 Required per assembly: 1 ~~$28.98~~ $22.14 - + Add to cart
22	CAM, DRIVEN Part #: 4VR-17527-00-00 Required per assembly: 1 ~~$79.98~~ $68.52 - + Add to cart
23	COLLAR, GEAR Part #: 5UH-17585-00-00 Required per assembly: 1 ~~$24.98~~ $19.70 - + Add to cart
24	BEARING (2HR) Part #: 93306-00612-00 Required per assembly: 1 ~~$51.99~~ $42.99 - + Add to cart
25	OIL, SEAL, SD-TYPE Part #: 93102-30339-00 Required per assembly: 1 ~~$17.48~~ $12.44 - + Add to cart
26	SHAFT, 1 Part #: 1D9-1761A-00-00 Required per assembly: 1 ~~$167.99~~ $145.15 - + Add to cart
27	BEARING Part #: 93306-20582-00 Required per assembly: 1 ~~$63.99~~ $48.49 - + Add to cart
28	FLANGE, COUPLING, 1 Part #: BB5-45593-00-00 Required per assembly: 1 ~~$134.99~~ $116.61 - + Add to cart
29	WASHER, PLATE Part #: 90201-14633-00 Required per assembly: 1 ~~$8.49~~ $5.16 - + Add to cart
30	NUT, SELF-LOCKING Part #: 90185-14010-00 Required per assembly: 1 ~~$16.48~~ $11.60 - + Add to cart
31	NUT, SPEC'L, SHAPE Part #: 90179-55660-00 Required per assembly: 1 ~~$58.99~~ $48.58 - + Add to cart
32	OIL, SEAL, SD-TYPE Part #: 93102-35380-00 Required per assembly: 1 ~~$24.98~~ $17.49 - + Add to cart
