Seat replacement parts for 2024 Yamaha YXZ1000R SS XT R

OEM Parts Yamaha 2024 Yamaha YXZ1000R SS XT R Seat

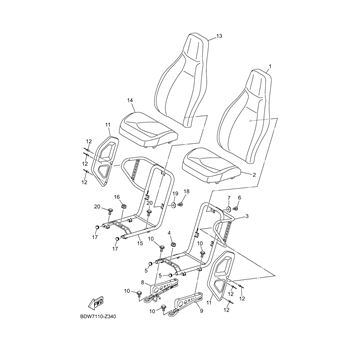

SEAT Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SEAT BACK ASSEMBLY Part #: B4J-F4790-70-00 Required per assembly: 1 $535.56 - + Add to cart
2	SEAT ASSEMBLY 2 Part #: B4J-K8420-70-00 Required per assembly: 1 ~~$215.99~~ $193.48 - + Add to cart
3	FRAME, SEAT, 1 Part #: 2HC-F473C-01-00 Required per assembly: 1 ~~$275.99~~ $257.93 - + Add to cart
4	GROMMET Part #: 1XD-F4742-00-00 Required per assembly: 1 ~~$4.00~~ $3.73 - + Add to cart
5	PLUG Part #: 2HC-F2417-00-00 Required per assembly: 2 ~~$2.35~~ $1.97 - + Add to cart
6	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06180-00 Required per assembly: 3 ~~$2.20~~ $1.77 - + Add to cart
7	WASHER, PLATE Part #: 90201-06095-00 Required per assembly: 3 ~~$9.49~~ $6.18 - + Add to cart
8	ADJUSTER ASSEMBLY Part #: BDW-F7270-00-00 Required per assembly: 1 ~~$92.98~~ $68.72 - + Add to cart
9	ADJUSTER ASSEMBLY Part #: BDW-F7260-00-00 Required per assembly: 1 ~~$387.99~~ $380.36 - + Add to cart
10	BOLT, FLANGE Part #: 95817-08012-00 Required per assembly: 8 ~~$5.49~~ $3.90 - + Add to cart
11	COVER, 2 Part #: 2HC-F475X-01-00 Required per assembly: 2 ~~$159.99~~ $135.10 - + Add to cart
12	RIVET, BLIND Part #: 90267-489U9-00 Required per assembly: 6 ~~$4.29~~ $3.27 - + Add to cart
13	SEAT BACK ASSEMBLY Part #: B4J-F4790-70-00 Required per assembly: 1 $535.56 - + Add to cart
14	SEAT ASSEMBLY 2 Part #: B4J-K8420-70-00 Required per assembly: 1 ~~$215.99~~ $193.48 - + Add to cart
15	FRAME, SEAT, 2 Part #: 2HC-F473D-01-00 Required per assembly: 1 $498.80 - + Add to cart
16	GROMMET Part #: 1XD-F4742-00-00 Required per assembly: 1 ~~$4.00~~ $3.73 - + Add to cart
17	PLUG Part #: 2HC-F2417-00-00 Required per assembly: 2 ~~$2.35~~ $1.97 - + Add to cart
18	BOLT, HEXAGON, SOCKET, BUTTON Part #: 90111-06180-00 Required per assembly: 3 ~~$2.20~~ $1.77 - + Add to cart
19	WASHER, PLATE Part #: 90201-06095-00 Required per assembly: 3 ~~$9.49~~ $6.18 - + Add to cart
20	BOLT, FLANGE Part #: 95817-08012-00 Required per assembly: 4 ~~$5.49~~ $3.90 - + Add to cart
