Injector replacement parts for 2025 Honda GL1800B

OEM Parts Honda 2025 Honda GL1800B Injector

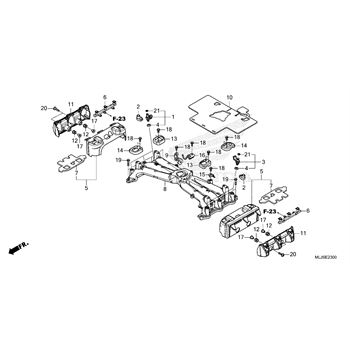

INJECTOR Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

E 23
001	INJECTOR ASSEMBLY, FUEL Part #: 16450-MLJ-M01 Required per assembly: 3 $145.07 $115.70 - + Add to cart
002	COVER, INJECTOR Part #: 16459-MKC-A00 Required per assembly: 6 $4.45 - + Add to cart
003	INJECTOR ASSEMBLY, FUEL Part #: 16460-MLJ-M01 Required per assembly: 3 $145.07 $115.70 - + Add to cart
004	RING, SEAL Part #: 16472-KPC-D50 Required per assembly: 6 $3.21 $2.99 - + Add to cart
005	COVER, ASSEMBLY, FUEL, PIPE Part #: 16600-MKC-A00 Required per assembly: 2 $64.95 $53.10 - + Add to cart
006	PIPE, FUEL Part #: 16610-MKC-A00 Required per assembly: 2 $62.51 $50.61 - + Add to cart
007	MAT, IN., MANIFOLD Part #: 16616-MKC-A00 Required per assembly: 2 $16.04 $12.98 - + Add to cart
008	MANIFOLD, IN. Part #: 17110-MKC-A00 Required per assembly: 1 $495.01 $415.68 - + Add to cart
009	STAY, FUEL, HOSE Part #: 17120-MKC-A00 Required per assembly: 1 $7.83 $7.08 - + Add to cart
010	SHEET, IN., MANIFOLD Part #: 17140-MKC-A01 Required per assembly: 1 $31.69 $25.65 - + Add to cart
011	COVER, IN., MANIFOLD Part #: 17150-MKC-A10 Required per assembly: 2 $88.78 $72.59 - + Add to cart
012	RUBBER, A, IN., COVER Part #: 17151-MKC-A00 Required per assembly: 4 $3.10 - + Add to cart
013	PLATE, A, FUEL, PIPE Part #: 17160-MKC-A00 Required per assembly: 2 $11.46 $9.77 - + Add to cart
014	PLATE, B, FUEL, PIPE Part #: 17170-MKC-A00 Required per assembly: 2 $11.46 $9.77 - + Add to cart
015	STAY, HARNESS, CLIP Part #: 19317-GET-000 Required per assembly: 1 $3.84 - + Add to cart
016	STAY, B, CLIP Part #: 32152-MKC-A00 Required per assembly: 1 $5.77 $5.34 - + Add to cart
017	COLLAR, CHAIN, GUARD Part #: 52157-GC5-000 Required per assembly: 4 $5.39 $4.85 - + Add to cart
018	BOLT, FLANGE, (6X14), (NSHF) Part #: 90017-GHB-620 Required per assembly: 11 $2.90 $2.70 - + Add to cart
019	BOLT, FLANGE, (6X28), (NSHF) Part #: 90017-GHB-680 Required per assembly: 8 $3.41 $3.10 - + Add to cart
020	BOLT, SPECIAL, (6X25) Part #: 90115-MKC-A10 Required per assembly: 4 $3.16 - + Add to cart
021	O-RING (6.3X2.2) Part #: 91301-GGL-J01 Required per assembly: 6 $10.43 $9.82 - + Add to cart
