2025 Honda PCX160A - Speedometer

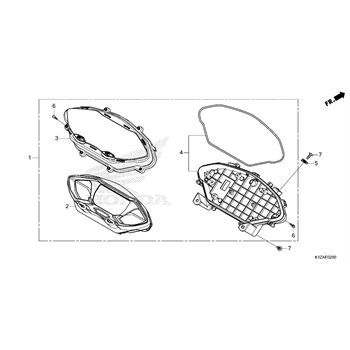

SPEEDOMETER Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
F 02
001

METER ASSEMBLY, COMBINATION (MPH)

Part #: 37100-K1Z-AC1 Required per assembly: 1
$208.14
$165.98
002

METER, LCD (MPH)

Part #: 37110-K1Z-AC1 Required per assembly: 1
$216.11
$172.35
003

LENS ASSEMBLY

Part #: 37111-K1Y-K01 Required per assembly: 1
$22.38
$17.85
004

CASE ASSEMBLY

Part #: 37112-K1Y-DC1 Required per assembly: 1
$22.43
$17.89
005

NUT, SPRING, (4MM)

Part #: 90302-KWW-A00 Required per assembly: 2
$2.04
$1.88
006

SCREW, TAP, (3X14)

Part #: 90314-KVS-F22 Required per assembly: 12
$3.70
007

SCREW, TAP, (4X12)

Part #: 93903-34320 Required per assembly: 4
$1.95
$1.80
