Frame replacement parts for 2025 Honda TRX520FA6

OEM Parts Honda 2025 Honda TRX520FA6 Frame

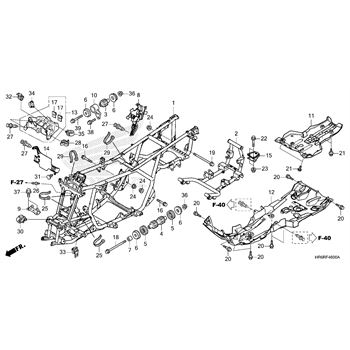

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 46
001	FRAME Part #: 50100-HR6-BF0 Required per assembly: 1 Note: Area: 2AC $1,081.51 - + Add to cart
001	FRAME Part #: 50100-HR6-MF0 Required per assembly: 1 Note: Area: 2A $1,527.30 - + Add to cart
002	FRAME, RR., (LOWER) Part #: 50200-HR6-A60 Required per assembly: 1 $1,910.93 - + Add to cart
003	RUBBER Part #: 50201-HP5-600 Required per assembly: 1 $9.71 $9.65 - + Add to cart
004	RUB, ENGINE, MOUNTING Part #: 50202-HP0-A50 Required per assembly: 2 $29.21 $23.65 - + Add to cart
005	DUST SEAL Part #: 50203-HM7-003 Required per assembly: 4 $23.64 $19.72 - + Add to cart
006	RUBBER, C, MOUNTING Part #: 50204-HP5-600 Required per assembly: 6 $8.18 $7.13 - + Add to cart
007	COLLAR, ENG, HGR Part #: 50304-HN8-000 Required per assembly: 2 $6.35 $5.63 - + Add to cart
008	STAY, CONNECTOR Part #: 50340-HR6-A60 Required per assembly: 1 $8.71 $7.74 - + Add to cart
009	BRKT, FR., GEAR, CASE Part #: 50350-HR3-A20 Required per assembly: 1 $8.55 $7.49 - + Add to cart
010	BRACKET, HEAD, HANGER Part #: 50351-HP5-600 Required per assembly: 1 $12.24 $9.76 - + Add to cart
011	SKID, RR., GEAR, CASE Part #: 50355-HR6-A60 Required per assembly: 1 $30.66 - + Add to cart
012	GUARD, ENGINE, NH1, (BLACK) Part #: 50360-HR3-A20ZA Required per assembly: 1 $317.83 - + Add to cart
013	STAY, CONNECTOR Part #: 50370-HR3-A20 Required per assembly: 1 $24.43 - + Add to cart
014	DEFLECTOR, AIR Part #: 50380-HR6-A60 Required per assembly: 1 $5.44 $5.01 - + Add to cart
015	HITCH, TRAILER Part #: 50810-HN8-000 Required per assembly: 1 $75.42 $60.15 - + Add to cart
016	BOLT (12X70) Part #: 52101-HR3-A20 Required per assembly: 2 $2.90 $2.70 - + Add to cart
017	NUT, SPECIAL, (6X7) Part #: 61304-958-003 Required per assembly: 2 $4.57 $4.15 - + Add to cart
018	BOLT, ENGINE, HANGER Part #: 90103-147-000 Required per assembly: 2 $12.69 $11.95 - + Add to cart
019	BOLT, FLG, (12X193) Part #: 90106-MEJ-000 Required per assembly: 1 $17.25 $16.73 - + Add to cart
020	BOLT, FLANGE, (6MM) Part #: 90111-147-000 Required per assembly: 8 $3.91 $3.55 - + Add to cart
021	BOLT, FLANGE, (6MM) Part #: 90111-187-000 Required per assembly: 4 $7.07 $6.43 - + Add to cart
022	BOLT, FLANGE, (10X50) Part #: 90120-HC4-000 Required per assembly: 2 $7.77 $6.78 - + Add to cart
023	NUT (10MM) Part #: 90305-HC0-770 Required per assembly: 2 $4.30 $3.91 - + Add to cart
024	NUT (12MM) Part #: 90305-HC4-000 Required per assembly: 3 $5.60 $5.09 - + Add to cart
025	BAND, WIRE, (165MM) Part #: 90651-KV6-003 Required per assembly: 3 $4.50 $4.09 - + Add to cart
026	JOINT, BREATHER, TUBE Part #: 90652-HF7-003 Required per assembly: 1 Note: Area: 2A $11.04 $9.43 - + Add to cart
027	CLIP, SPLASH, GUARD, (EACH) Part #: 90653-HC4-900 Required per assembly: 4 $1.67 $1.52 - + Add to cart
028	CLIP, HARN, (6MM) Part #: 90654-SA4-003 Required per assembly: 1 $1.32 $1.20 - + Add to cart
029	BAND, SUCTION, HOSE Part #: 90679-SG9-E01 Required per assembly: 2 $4.49 $4.29 - + Add to cart
030	CLIP, HARNESS Part #: 90684-ZA0-601 Required per assembly: 1 $4.51 $4.10 - + Add to cart
031	CLIP, WASHER, MOUTH Part #: 91504-SD5-901 Required per assembly: 1 $5.26 $5.15 - + Add to cart
032	CLIP, CONNECTOR Part #: 91535-STK-003 Required per assembly: 2 $7.36 $7.01 - + Add to cart
033	CLIP, CONNECTOR Part #: 91535-TF0-003 Required per assembly: 1 $3.68 - + Add to cart
034	CLIP, WIRE, HARNESS Part #: 91556-SK7-003 Required per assembly: 1 $6.53 $6.27 - + Add to cart
035	CLIP, WIRE, HARNESS Part #: 91558-SD5-003 Required per assembly: 1 $9.08 $8.52 - + Add to cart
036	NUT, FLANGE, (10MM) Part #: 94050-10000 Required per assembly: 3 $2.60 $2.41 - + Add to cart
037	BOLT, FLANGE, (8X16) Part #: 95701-08016-08 Required per assembly: 2 $2.79 $2.60 - + Add to cart
038	BOLT, FLANGE, (8X22) Part #: 95701-08022-00 Required per assembly: 2 $3.14 $2.91 - + Add to cart
039	BOLT, FLANGE, (10X60) Part #: 95701-10060-00 Required per assembly: 1 $3.01 $2.80 - + Add to cart
