Fuel Tank replacement parts for 2025 Kawasaki KLR650 S ABS

OEM Parts Kawasaki 2025 Kawasaki KLR650 S ABS Fuel Tank

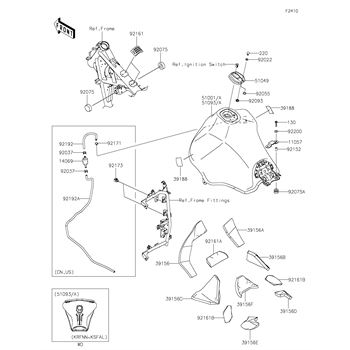

Fuel Tank Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 6X30 Part #: 130BB0630 Required per assembly: 2 ~~$4.56~~ $3.59 - + Add to cart
220	SCREW-PAN-CROSS, 5X10 Part #: 220AA0510 Required per assembly: 2 Note: Sold in multiples of 10 only ~~$0.76~~ $0.68 - + Add to cart
11057	BRACKET, SEAT Part #: 11057-4274 Required per assembly: 1 $39.06 - + Add to cart
39156	PAD, FR, LH Part #: 39156-2664 Required per assembly: 1 ~~$24.34~~ $20.44 - + Add to cart
39156A	PAD, FR, RH Part #: 39156-2665 Required per assembly: 1 ~~$10.55~~ $9.00 - + Add to cart
39156B	PAD, MID, RH Part #: 39156-2701 Required per assembly: 1 ~~$14.85~~ $12.47 - + Add to cart
39156C	PAD, MID, LH Part #: 39156-2702 Required per assembly: 1 ~~$14.85~~ $12.47 - + Add to cart
39156D	PAD, RR, RH Part #: 39156-2703 Required per assembly: 1 ~~$6.99~~ $5.37 - + Add to cart
39156E	PAD, RR, LH Part #: 39156-2704 Required per assembly: 1 ~~$6.99~~ $5.37 - + Add to cart
39156F	PAD, CNT Part #: 39156-2705 Required per assembly: 1 ~~$8.68~~ $7.48 - + Add to cart
39188	TAPE, 40X50 Part #: 39188-0049 Required per assembly: 2 $1.79 - + Add to cart
51049	CAP-TANK, FUEL Part #: 51049-0760 Required per assembly: 1 Not Available
51093	TANK-COMP-FUEL, M.C.GRAY Part #: 51093-5173-51A Required per assembly: 1 $1,290.24 - + Add to cart
51093A	TANK-COMP-FUEL, M.M.D.GREEN Part #: 51093-5173-63Y Required per assembly: 1 $1,020.62 - + Add to cart
92022	WASHER, 5.1X10X1.0 Part #: 92022-1977 Required per assembly: 2 ~~$3.75~~ $2.91 - + Add to cart
92055	RING-O Part #: 92055-1023 Required per assembly: 2 ~~$4.04~~ $3.20 - + Add to cart
92075	DAMPER, FUEL, TANK Part #: 92075-101 Required per assembly: 2 ~~$6.38~~ $4.92 - + Add to cart
92075A	DAMPER Part #: 92075-1660 Required per assembly: 2 ~~$8.34~~ $7.20 - + Add to cart
92093	SEAL, FUEL, TANK, CAP Part #: 92093-1030 Required per assembly: 1 ~~$8.00~~ $6.93 - + Add to cart
92152	COLLAR, 6.8X10X18 Part #: 92152-2726 Required per assembly: 2 ~~$3.37~~ $2.39 - + Add to cart
92161	DAMPER Part #: 92161-2372 Required per assembly: 2 ~~$4.73~~ $3.71 - + Add to cart
92161A	DAMPER, CNT Part #: 92161-2394 Required per assembly: 1 ~~$14.68~~ $12.34 - + Add to cart
92161B	DAMPER, LH&RH Part #: 92161-2395 Required per assembly: 2 ~~$11.70~~ $9.93 - + Add to cart
92200	WASHER, 6.5X20X1.6 Part #: 92200-1962 Required per assembly: 2 ~~$3.85~~ $2.99 - + Add to cart
