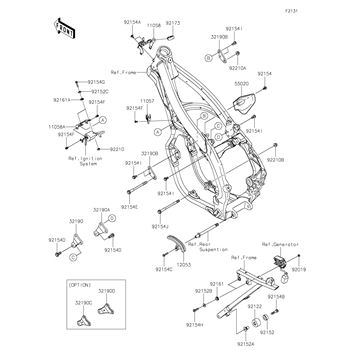

OEM Parts Kawasaki 2025 Kawasaki KX450 Frame

2025 Kawasaki KX450 KX450-MSFNN - Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
32160

FRAME-COMP, MAIN

Part #: 32160-2088 Required per assembly: 1
$2,423.97
-
+
Add to cart
32160A

FRAME-COMP, RR

Part #: 32160-1998 Required per assembly: 1
$710.07
-
+
Add to cart
92015

NUT, POP, 6MM, L=15

Part #: 92015-1791 Required per assembly: 2
$4.82
$3.79
-
+
Add to cart
92015A

NUT, STEERING, STEM, 28MM

Part #: 92015-1861 Required per assembly: 1
$18.47
$15.42
-
+
Add to cart
92022

WASHER, 25X36X2.3

Part #: 92022-250 Required per assembly: 1
$5.14
$4.02
-
+
Add to cart
92066

PLUG

Part #: 92066-1547 Required per assembly: 1
$3.72
$2.89
-
+
Add to cart
92116

BEARING-ROLLER, HI-CAP32006JRRS

Part #: 92116-1069 Required per assembly: 1
$65.67
$60.90
-
+
Add to cart
92116A

BEARING-ROLLER, HI-CAP320/28JRR

Part #: 92116-1076 Required per assembly: 1
$52.63
$48.02
-
+
Add to cart
92154

BOLT, SOCKET, 8X28

Part #: 92154-2991 Required per assembly: 2
$7.65
$6.65
-
+
Add to cart
92154A

BOLT, SOCKET, 8X20

Part #: 92154-7296 Required per assembly: 2
$5.03
$3.94
-
+
Add to cart
92210

NUT, 24MM

Part #: 92210-0066 Required per assembly: 1
$12.07
$10.23
-
+
Add to cart
92210A

NUT, LARGE, FLANGE, 6MM, L=16.5

Part #: 92210-1623 Required per assembly: 3
$3.05
$2.19
-
+
Add to cart
