Radiator replacement parts for 2025 Kawasaki Teryx KRX 1000 Blackout Edition

OEM Parts Kawasaki 2025 Kawasaki Teryx KRX 1000 Blackout Edition Radiator

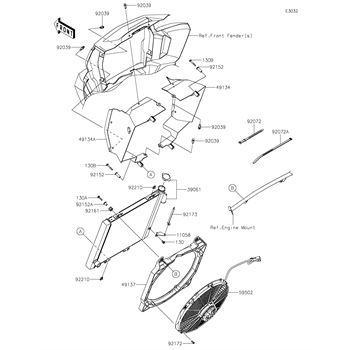

Radiator Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 6X12 Part #: 130BA0612 Required per assembly: 1 Note: Sold in multiples of 5 only $1.79 $1.32 - + Add to cart
130A	BOLT-FLANGED, 6X25 Part #: 130BA0625 Required per assembly: 4 $1.02 - + Add to cart
130B	BOLT-FLANGED, 6X40 Part #: 130BA0640 Required per assembly: 4 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
11058	BRACKET Part #: 11058-1983 Required per assembly: 1 $6.96 $5.34 - + Add to cart
39061	RADIATOR-ASSY, WITH, CAP Part #: 39061-0957 Required per assembly: 1 Not Available
49134	SHROUD, RH Part #: 49134-0001 Required per assembly: 1 $28.56 - + Add to cart
49134A	SHROUD, LH Part #: 49134-0002 Required per assembly: 1 $33.74 - + Add to cart
49137	SHROUD Part #: 49137-0010 Required per assembly: 1 $36.03 $33.21 - + Add to cart
59502	FAN-ASSY Part #: 59502-0656 Required per assembly: 1 $224.31 $220.12 - + Add to cart
92039	RIVET Part #: 92039-0776 Required per assembly: 8 Not Available
92072	BAND, L=186 Part #: 92072-056 Required per assembly: 2 $5.14 $4.02 - + Add to cart
92072A	BAND Part #: 92072-3509 Required per assembly: 2 $2.19 $1.60 - + Add to cart
92152	COLLAR Part #: 92152-1215 Required per assembly: 4 $7.59 $6.60 - + Add to cart
92152A	COLLAR Part #: 92152-3845 Required per assembly: 4 $3.94 $3.05 - + Add to cart
92161	DAMPER Part #: 92161-2578 Required per assembly: 4 $0.70 $0.63 - + Add to cart
92172	SCREW, TAPPING, 6X16 Part #: 92172-1607 Required per assembly: 4 $1.46 $1.14 - + Add to cart
92173	CLAMP Part #: 92173-1980 Required per assembly: 1 $2.89 $2.08 - + Add to cart
92210	NUT Part #: 92210-0754 Required per assembly: 4 $2.10 $1.55 - + Add to cart
