Brake Piping replacement parts for 2025 Kawasaki Z H2 SE

OEM Parts Kawasaki 2025 Kawasaki Z H2 SE Brake Piping

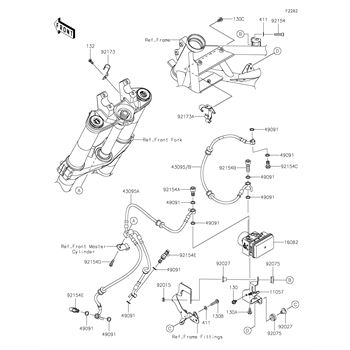

Brake Piping Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

130	BOLT-FLANGED, 6X10 Part #: 130BA0610 Required per assembly: 1 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
130A	BOLT-FLANGED, 6X14 Part #: 130BA0614 Required per assembly: 1 Note: Sold in multiples of 5 only $1.27 $1.02 - + Add to cart
130B	BOLT-FLANGED, 6X25 Part #: 130BA0625 Required per assembly: 1 $1.02 - + Add to cart
130C	BOLT-FLANGED, 6X12 Part #: 130BB0612 Required per assembly: 1 Note: (CA ONLY) Sold in multiples of 5 only $2.43 $1.77 - + Add to cart
132	BOLT-FLANGED-SMALL, 6X12 Part #: 132BB0612 Required per assembly: 1 Note: Sold in multiples of 5 only $2.13 $1.57 - + Add to cart
411	WASHER-PLAIN, 6.5X13X1 Part #: 411AA0600 Required per assembly: 2 $3.02 $2.17 - + Add to cart
11057	BRACKET, ABS, PUMP, UNIT Part #: 11057-2929 Required per assembly: 1 $15.67 $13.16 - + Add to cart
16082	PUMP-ASSY-OIL, ABS, BOSCH, 9.1MP Part #: 16082-0854 Required per assembly: 1 $1,624.47 - + Add to cart
43095	HOSE-BRAKE, ABS, UNIT-FR, M/C Part #: 43095-1710 Required per assembly: 1 $118.57 $117.66 - + Add to cart
43095A	HOSE-BRAKE, ABS, UNIT-FR, CALIPER Part #: 43095-1711 Required per assembly: 1 $221.58 $217.97 - + Add to cart
43095B	HOSE-BRAKE, FR, M/C-ABS, UNIT Part #: 43095-2075 Required per assembly: 1 $112.70 $102.64 - + Add to cart
49091	WASHER-SEAL, 10.1X14.5X1.5 Part #: 49091-0001 Required per assembly: 10 Note: Sold in multiples of 5 only $2.23 $1.65 - + Add to cart
92015	NUT, FLANGED, 6MM Part #: 92015-1367 Required per assembly: 1 $3.79 $2.66 - + Add to cart
92027	COLLAR, SEAT Part #: 92027-1062 Required per assembly: 2 $7.57 $6.59 - + Add to cart
92075	DAMPER Part #: 92075-277 Required per assembly: 2 $2.90 $2.00 - + Add to cart
92154	BOLT, SOCKET, 6X25 Part #: 92154-0477 Required per assembly: 1 Note: Sold in multiples of 5 only $2.02 $1.51 - + Add to cart
92154A	BOLT, BANJO, 10X20.8 Part #: 92154-1121 Required per assembly: 1 $26.75 $22.39 - + Add to cart
92154B	BOLT, BANJO, 10X32.3 Part #: 92154-1122 Required per assembly: 1 $30.70 $28.03 - + Add to cart
92154C	BOLT, BANJO, 10X19 Part #: 92154-1554 Required per assembly: 1 $23.95 $19.98 - + Add to cart
92154D	BOLT, FLANGED, 6X25 Part #: 92154-1849 Required per assembly: 1 $2.23 $1.65 - + Add to cart
92154E	BOLT, BANJO, 10X19 Part #: 92154-4032 Required per assembly: 2 $46.22 $42.32 - + Add to cart
92173	CLAMP Part #: 92173-2182 Required per assembly: 1 $5.72 $4.45 - + Add to cart
92173A	CLAMP Part #: 92173-2183 Required per assembly: 1 $22.23 $18.59 - + Add to cart
