Electrical 4 replacement parts for 2025 Yamaha 252XE

OEM Parts Yamaha 2025 Yamaha 252XE Electrical 4

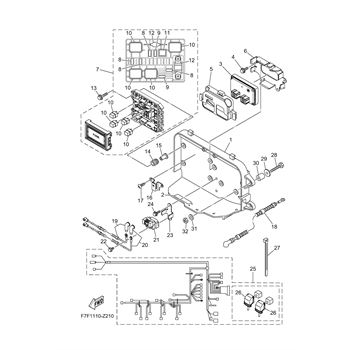

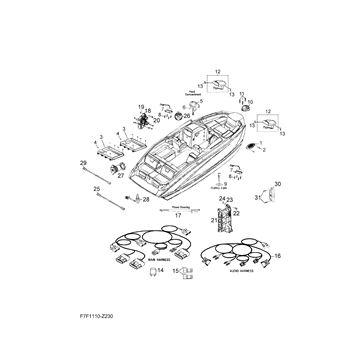

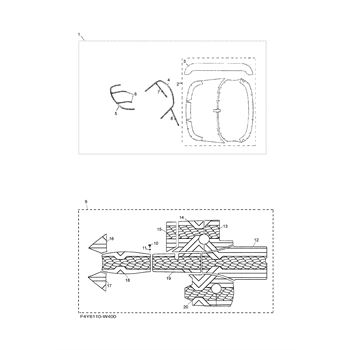

ELECTRICAL 4 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BEZEL ASSY. Part #: F6D-U15A1-00-00 Required per assembly: 1 $44.99 $33.31 - + Add to cart
2	DISPLAY UNIT Part #: F5K-U0870-10-00 Required per assembly: 1 $3,830.98 $3,764.85 - + Add to cart
3	BRACKET, CASE Part #: F6D-U591F-00-00 Required per assembly: 1 $18.98 $14.35 - + Add to cart
4	BRACKET, DISPLAY, UNIT Part #: F6D-U8K1R-00-00 Required per assembly: 1 $39.99 $29.80 - + Add to cart
5	BRACKET, CASE Part #: F6D-U591F-10-00 Required per assembly: 1 $13.99 $10.52 - + Add to cart
6	SCREW, ROUND, TAPPING Part #: 90160-12S16-00 Required per assembly: 4 $5.99 $1.29 - + Add to cart
7	BOLT, FLANGE Part #: 90105-03S16-00 Required per assembly: 4 $1.99 $0.83 - + Add to cart
8	BOLT, FLANGE, (JK3) Part #: 95880-06020-00 Required per assembly: 4 $5.49 $3.46 - + Add to cart
9	BOLT, FLANGE, DEEP, RECESS Part #: 95D95-06025-00 Required per assembly: 4 $0.95 $0.91 - + Add to cart
10	PANEL, SIDE, LH Part #: F4Y-U885D-30-00 Required per assembly: 1 Not Available
11	PANEL, SIDE, 1 Part #: F4Y-U82B6-20-00 Required per assembly: 1 $820.99 $768.08 - + Add to cart
12	SWITCH, FLAP Part #: F4X-U2336-01-00 Required per assembly: 2 $110.98 $83.14 - + Add to cart
13	WIRE HARNESS 4 Part #: F4Y-U827F-40-00 Required per assembly: 1 Not Available
14	WASHER Part #: 90209-10SB1-00 Required per assembly: 7 $5.99 $1.21 - + Add to cart
15	WASHER, LOCK, (#10) Part #: 90204-10S00-00 Required per assembly: 7 $6.99 $2.42 - + Add to cart
16	NUT Part #: 90170-08S00-00 Required per assembly: 7 Note: FOR-000821~ SEE NOTE FOR REF. # 9 $5.99 $1.21 - + Add to cart
17	START BUTTON COMP. Part #: F4Y-U8313-00-00 Required per assembly: 1 $512.99 $504.99 - + Add to cart
18	WASHER, FENDER, (1/4", X, 1") Part #: 90209-14SA2-00 Required per assembly: 3 $1.99 $0.53 - + Add to cart
19	WASHER, 1/4", LOCK Part #: 90204-14S00-00 Required per assembly: 3 $5.99 $1.06 - + Add to cart
20	NUT, U Part #: 95680-06100-00 Required per assembly: 3 $8.69 $8.24 - + Add to cart
21	HOLDER Part #: F6D-U827C-10-00 Required per assembly: 1 Not Available
22	RECEPTACLE, ACCESSORY Part #: F6A-U8284-00-00 Required per assembly: 1 $47.99 $37.77 - + Add to cart
23	ANTENA, GPS Part #: F4Y-U8K1L-01-00 Required per assembly: 1 $621.69 $565.17 - + Add to cart
24	TRANSDUCER Part #: F2D-U8K1W-01-00 Required per assembly: 1 $544.99 $494.41 - + Add to cart
25	PANEL SWITCH ASSEMBLY Part #: F3F-82570-00-00 Required per assembly: 1 $464.66 $422.42 - + Add to cart
26	MAIN SWITCH ASSEMBLY Part #: F3F-82510-00-00 Required per assembly: 1 $155.48 $141.34 - + Add to cart
27	ENGINE STOP SWITCH ASSEMBLY Part #: 688-82575-02-00 Required per assembly: 1 $37.54 $35.31 - + Add to cart
28	LANYARD, STOP, SWITCH Part #: 682-82556-00-00 Required per assembly: 1 $8.19 $7.62 - + Add to cart
29	STAY, CORD, CLAMP Part #: 64D-82581-00-00 Required per assembly: 1 $25.00 $23.51 - + Add to cart
30	PANEL SWITCH ASSEMBLY Part #: F3F-82570-10-00 Required per assembly: 1 $488.47 $444.06 - + Add to cart
31	SWITCH ASSEMBLY Part #: F3F-8259E-00-00 Required per assembly: 2 $74.99 $68.18 - + Add to cart
