Helm replacement parts for 2025 Yamaha 252SD

OEM Parts Yamaha 2025 Yamaha 252SD Helm

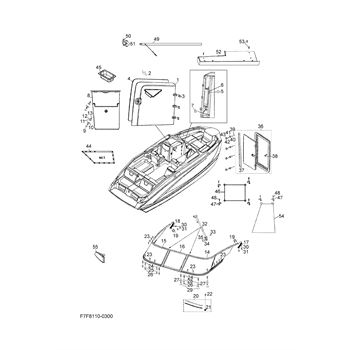

HELM Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	DOOR COMP. Part #: F4Y-U5708-01-00 Required per assembly: 1 $1,878.79 - + Add to cart
2	HOLDER, TABLE Part #: F4Y-U4853-00-00 Required per assembly: 2 $20.98 $15.86 - + Add to cart
3	SCREW, TAPPING Part #: 90162-08S12-00 Required per assembly: 6 $5.99 $1.29 - + Add to cart
4	PACKING, 7 Part #: F4Y-U266F-11-00 Required per assembly: 1 $107.98 $81.63 - + Add to cart
5	SCREW, TAPPING Part #: 90161-10S16-00 Required per assembly: 2 $0.15 $0.12 - + Add to cart
6	SUPPORT, SETTEEBIRTH, (G30) Part #: F4Y-U3898-00-00 Required per assembly: 1 $31.98 $23.42 - + Add to cart
7	STOPPER Part #: F4Y-U2368-00-00 Required per assembly: 3 $4.99 $2.86 - + Add to cart
8	CONSOLE BOX Part #: F4Y-U4991-20-00 Required per assembly: 1 $1,345.77 - + Add to cart
8	CONSOLE BOX Part #: F4Y-U4991-00-00 Required per assembly: 1 $2,637.42 $2,447.65 - + Add to cart
9	SCREW 1/4-20X1 1/2 Part #: 90149-14SA3-00 Required per assembly: 4 $5.99 $1.89 - + Add to cart
10	WASHER, FENDER, (1/4", X, 1") Part #: 90209-14SA2-00 Required per assembly: 4 $1.99 $0.53 - + Add to cart
11	WASHER, 1/4", FL Part #: 90201-14S00-00 Required per assembly: 4 $6.99 $1.59 - + Add to cart
12	NUT, SELF-LOCKING Part #: 90185-14S00-00 Required per assembly: 4 $4.99 $0.60 - + Add to cart
13	CAP Part #: F3F-U514F-00-00 Required per assembly: 4 $5.99 $1.59 - + Add to cart
14	WINDSHIELD FR. Part #: F4Y-U1811-12-00 Required per assembly: 1 $1,295.60 - + Add to cart
15	WINDSHIELD FR. (RH Part #: F4Y-U1812-11-00 Required per assembly: 1 $2,295.60 - + Add to cart
16	WIND SHIELD Part #: F4Y-U1818-10-00 Required per assembly: 1 $458.00 - + Add to cart
17	BRACKET 1 Part #: F4Y-U8571-10-00 Required per assembly: 1 $172.99 $130.71 - + Add to cart
18	BRACKET 2 Part #: F4Y-U8572-10-00 Required per assembly: 1 $212.99 $161.75 - + Add to cart
19	SCREW, #10-24X1/2 Part #: 90149-10SA6-00 Required per assembly: 4 $0.99 $0.23 - + Add to cart
20	KIT, WINDSHIELD, FITTING Part #: F4Y-U1940-00-00 Required per assembly: 1 $128.99 $97.07 - + Add to cart
21	CUSHION, RUBBER Part #: F4X-U5741-00-00 Required per assembly: 1 $11.99 $9.06 - + Add to cart
22	SCREW TRUSS HEAD Part #: 90169-10SA9-00 Required per assembly: 2 $0.30 $0.21 - + Add to cart
23	SCREW, TAPPING Part #: 90162-08S12-00 Required per assembly: 14 $5.99 $1.29 - + Add to cart
24	SCREW, COUNTERSUNK Part #: 90152-08S24-00 Required per assembly: 8 $4.99 $0.60 - + Add to cart
25	WASHER, #8, FLAT Part #: 90201-08S00-00 Required per assembly: 8 $3.99 $0.53 - + Add to cart
26	NUT, SELF-LOCKING Part #: 90185-08S00-00 Required per assembly: 8 $6.99 $1.51 - + Add to cart
27	WASHER Part #: F0C-U5248-00-00 Required per assembly: 4 $4.99 $0.91 - + Add to cart
28	WASHER Part #: 90209-10SB1-00 Required per assembly: 4 $5.99 $1.21 - + Add to cart
29	CAP (WHITE) Part #: F0R-U514F-00-00 Required per assembly: 4 $0.50 $0.36 - + Add to cart
30	WASHER, FENDER, (1/4", X, 1") Part #: 90209-14SA2-00 Required per assembly: 4 $1.99 $0.53 - + Add to cart
31	NUT, SELF-LOCKING Part #: 90185-14S00-00 Required per assembly: 4 $4.99 $0.60 - + Add to cart
32	BRACKET Part #: F3R-U5522-00-00 Required per assembly: 2 $30.98 $23.07 - + Add to cart
33	SCREW, 10-24, X, 1-1/2 Part #: 90157-10S24-00 Required per assembly: 4 $5.99 $1.44 - + Add to cart
34	WASHER, #10, FLAT Part #: 90201-10S00-00 Required per assembly: 4 $4.99 $0.56 - + Add to cart
35	NUT, SELF-LOCKING Part #: 90185-10S00-00 Required per assembly: 4 $4.99 $0.98 - + Add to cart
36	DOOR ASSEMBLY Part #: F4Y-U5720-00-00 Required per assembly: 1 $601.64 - + Add to cart
37	GUIDE Part #: F4Y-U5726-00-00 Required per assembly: 1 $141.99 $107.32 - + Add to cart
38	SCREW, TAPPING Part #: 90162-08SA1-00 Required per assembly: 10 $5.99 $1.36 - + Add to cart
39	SCREW, COUNTERSUNK Part #: 90151-08S32-00 Required per assembly: 4 $0.40 $0.30 - + Add to cart
40	WASHER Part #: 90209-10SB1-00 Required per assembly: 4 $5.99 $1.21 - + Add to cart
41	WASHER Part #: F0C-U5248-00-00 Required per assembly: 4 $4.99 $0.91 - + Add to cart
42	NUT, SELF-LOCKING Part #: 90185-08S00-00 Required per assembly: 4 $6.99 $1.51 - + Add to cart
43	CAP (WHITE) Part #: F0R-U514F-00-00 Required per assembly: 4 $0.50 $0.36 - + Add to cart
44	NET, STORAGE Part #: F4Y-U4751-00-00 Required per assembly: 1 $113.98 $86.17 - + Add to cart
45	BOX, SIDE Part #: F4Y-U4776-10-00 Required per assembly: 1 $104.98 $81.63 - + Add to cart
45	BOX, SIDE Part #: F4Y-U4776-30-00 Required per assembly: 1 $94.98 $72.56 - + Add to cart
46	INSPECTION COVER ASSEMBLY Part #: F3F-U2720-00-00 Required per assembly: 1 $182.99 $140.59 - + Add to cart
47	SNAP Part #: F3F-U5192-10-00 Required per assembly: 6 Not Available
48	SCREW, TAPPING Part #: 90162-08S20-00 Required per assembly: 6 Note: UN $5.99 $1.29 - + Add to cart
49	PIPE POLE Part #: F4Y-U491F-00-00 Required per assembly: 1 $104.98 $80.12 - + Add to cart
50	BRACKET, AWNING, 2 Part #: F0R-U3142-00-00 Required per assembly: 1 $34.99 $26.43 - + Add to cart
51	SCREW, #10, X, 3/4 Part #: 90161-10S12-00 Required per assembly: 2 $5.99 $1.29 - + Add to cart
52	HOLDER Part #: F4Y-U827C-00-00 Required per assembly: 1 $368.99 $356.92 - + Add to cart
53	SCREW, TAPPING Part #: 90162-12S24-00 Required per assembly: 3 $0.45 $0.42 - + Add to cart
54	INSPECTION COVER ASSY Part #: F5K-U2720-00-00 Required per assembly: 1 $184.99 $140.59 - + Add to cart
55	MIRROR LH Part #: F1U-U596B-00-00 Required per assembly: 1 $64.98 $49.88 - + Add to cart
