Control Cable replacement parts for 2025 Yamaha VX Limited

OEM Parts Yamaha 2025 Yamaha VX Limited Control Cable

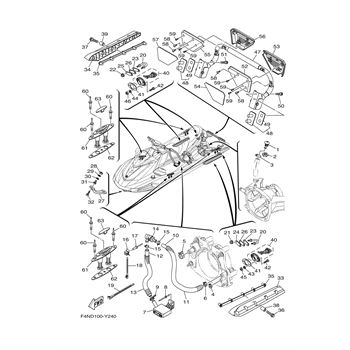

CONTROL CABLE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CABLE, STEERING Part #: F4N-61481-01-00 Required per assembly: 1 ~~$485.99~~ $485.42 - + Add to cart
2	PACKING C Part #: F1B-61438-00-00 Required per assembly: 1 $3.90 - + Add to cart
3	NUT Part #: F1B-6151S-01-00 Required per assembly: 1 $17.59 - + Add to cart
4	STUD, JOINT, BALL Part #: F1B-61461-02-00 Required per assembly: 1 ~~$95.98~~ $95.24 - + Add to cart
5	BALL JOINT ASSEMBLY Part #: F2N-61460-00-00 Required per assembly: 1 ~~$48.49~~ $48.35 - + Add to cart
6	WASHER, PLATE Part #: 90201-06906-00 Required per assembly: 2 $4.52 - + Add to cart
7	NUT Part #: 9538R-06700-00 Required per assembly: 1 ~~$6.11~~ $1.66 - + Add to cart
8	MOTOR ASSEMBLY Part #: F4N-6140B-03-00 Required per assembly: 1 ~~$1,464.99~~ $1,381.21 - + Add to cart
9	HOUSING Part #: F4S-6152K-00-00 Required per assembly: 1 ~~$299.99~~ $294.82 - + Add to cart
10	SEAL Part #: F4P-63262-00-00 Required per assembly: 1 ~~$27.48~~ $27.19 - + Add to cart
11	PLUG Part #: F3J-613D0-00-00 Required per assembly: 1 $15.29 - + Add to cart
12	BOLT, STUD Part #: F3J-67369-00-00 Required per assembly: 3 $8.69 - + Add to cart
13	COVER Part #: F3Y-6143J-00-00 Required per assembly: 1 $59.90 - + Add to cart
14	SCREW Part #: F3Y-68198-00-00 Required per assembly: 10 $5.12 - + Add to cart
15	CONTROL UNIT Part #: F4S-68197-01-00 Required per assembly: 1 ~~$872.49~~ $823.53 - + Add to cart
16	COLLAR Part #: 90387-06119-00 Required per assembly: 3 $6.75 - + Add to cart
17	DAMPER, IGNITION, COIL Part #: 6A0-82317-01-00 Required per assembly: 3 $9.53 - + Add to cart
18	BOLT Part #: F3J-613B4-20-00 Required per assembly: 3 $6.35 - + Add to cart
19	PLATE Part #: F4P-61256-00-00 Required per assembly: 1 ~~$62.99~~ $61.98 - + Add to cart
20	BOLT, HEXAGON Part #: F3Y-613B3-00-00 Required per assembly: 3 $6.35 - + Add to cart
21	SCREW Part #: F3J-68198-20-00 Required per assembly: 2 $5.12 - + Add to cart
22	WASHER, PLAIN Part #: F3J-613C3-10-00 Required per assembly: 2 $6.35 - + Add to cart
23	MAGNET, SENSOR Part #: F3J-60428-00-00 Required per assembly: 1 $26.28 - + Add to cart
24	WIRE HARNESS ASSY Part #: F4N-68270-00-00 Required per assembly: 1 ~~$502.99~~ $485.90 - + Add to cart
25	SCREW Part #: F3J-68198-00-00 Required per assembly: 4 $5.12 - + Add to cart
26	CLAMP Part #: F3J-68273-00-00 Required per assembly: 2 $4.52 - + Add to cart
27	MOTOR Part #: F4S-68352-00-00 Required per assembly: 1 ~~$176.99~~ $175.36 - + Add to cart
28	BOLT Part #: F3J-613B4-00-00 Required per assembly: 1 $6.35 - + Add to cart
29	PLATE Part #: F3Y-61348-00-00 Required per assembly: 1 $6.35 - + Add to cart
30	SCREW Part #: F3J-68198-20-00 Required per assembly: 2 $5.12 - + Add to cart
31	BOLT Part #: F3J-613B4-10-00 Required per assembly: 2 $5.12 - + Add to cart
32	SPACER Part #: F3J-61492-00-00 Required per assembly: 1 $9.79 - + Add to cart
33	GEAR 1 Part #: F4P-60211-00-00 Required per assembly: 1 ~~$117.48~~ $116.39 - + Add to cart
34	CLAMP Part #: F4P-68273-00-00 Required per assembly: 2 $5.75 - + Add to cart
35	O-RING Part #: F4P-613A5-10-00 Required per assembly: 1 $6.35 - + Add to cart
36	SHAFT, 1 Part #: F3Y-60221-10-00 Required per assembly: 1 $25.39 - + Add to cart
37	BUSH Part #: F3Y-61344-00-00 Required per assembly: 2 $6.35 - + Add to cart
38	O-RING Part #: F4P-613A5-00-00 Required per assembly: 2 $5.12 - + Add to cart
39	BUSH Part #: F4P-61344-00-00 Required per assembly: 1 $7.54 - + Add to cart
40	SENSOR, ANGLE Part #: F4S-85887-00-00 Required per assembly: 1 Not Available
41	PLATE Part #: F4P-U8285-00-00 Required per assembly: 1 ~~$19.37~~ $17.59 - + Add to cart
42	BOLT, WITH, WASHER Part #: 90119-06894-00 Required per assembly: 1 $2.20 - + Add to cart
43	BOLT, WITH, WASHER Part #: 90119-08852-00 Required per assembly: 2 ~~$9.16~~ $5.93 - + Add to cart
44	NUT, LOCK Part #: F3Y-U142L-00-00 Required per assembly: 3 ~~$7.12~~ $4.00 - + Add to cart
45	SHIFT ARM ASSEMBLY Part #: F3Y-6150F-00-00 Required per assembly: 1 ~~$65.98~~ $65.00 - + Add to cart
46	BOLT, JOINT Part #: 6R7-42316-00-00 Required per assembly: 1 $34.75 - + Add to cart
47	ROD ASSEMBLY 2 Part #: F3J-6150D-00-00 Required per assembly: 1 ~~$51.99~~ $51.39 - + Add to cart
