Frame replacement parts for 2025 Yamaha Wolverine RMAX4 1000 R Spec Compact

OEM Parts Yamaha 2025 Yamaha Wolverine RMAX4 1000 R Spec Compact Frame

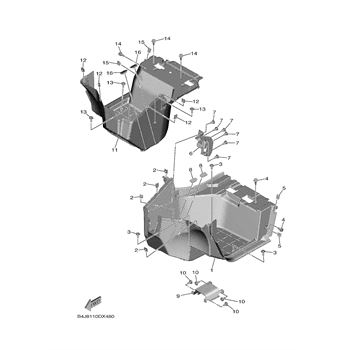

FRAME Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: BLU-F1110-01-00 Required per assembly: 1 $4,792.28 $4,356.62 - + Add to cart
2	ENGINE BRACKET COMP. Part #: BKP-21410-10-00 Required per assembly: 1 $96.98 $87.73 - + Add to cart
3	ENGINE BRACKET COMP. 2 Part #: BKP-21420-10-00 Required per assembly: 1 $96.98 $87.73 - + Add to cart
4	BOLT, FLANGE, DEEP, RECESS Part #: 95D32-10025-00 Required per assembly: 4 $1.55 $1.27 - + Add to cart
5	BRACKET 5 Part #: BG4-F161F-00-00 Required per assembly: 1 $13.49 $9.65 - + Add to cart
6	BRACKET 3 Part #: BG4-F161A-00-00 Required per assembly: 1 $8.99 $7.30 - + Add to cart
7	BOLT, FLANGE, DEEP, RECESS Part #: 95D32-12065-00 Required per assembly: 2 $3.95 $3.30 - + Add to cart
8	BOLT, FLANGE, DEEP, RECESS Part #: 95D32-10016-00 Required per assembly: 4 $1.39 $1.15 - + Add to cart
9	BRACKET, ENGINE, 1 Part #: BKP-21490-00-00 Required per assembly: 2 Not Available
10	BOLT, FLANGE, DEEP, RECESS Part #: 95D32-12065-00 Required per assembly: 2 $3.95 $3.30 - + Add to cart
11	NUT Part #: 90179-10033-00 Required per assembly: 2 Not Available
12	SUPPORT, ENGINE Part #: B4J-F1283-04-00 Required per assembly: 1 $20.98 $17.37 - + Add to cart
13	SUPT., ENGINE, 2 Part #: B4J-F1284-05-00 Required per assembly: 1 $20.98 $17.37 - + Add to cart
14	BOLT, FLANGE, DEEP, RECESS Part #: 95D37-10025-00 Required per assembly: 4 $2.50 $1.68 - + Add to cart
15	GROMMET Part #: BKP-F1773-00-00 Required per assembly: 1 $5.49 $4.51 - + Add to cart
16	BRACKET 2 Part #: B4J-F1239-00-00 Required per assembly: 1 $3.75 $3.08 - + Add to cart
17	BOLT, FLANGE Part #: 95812-12020-00 Required per assembly: 2 $9.49 $6.12 - + Add to cart
18	BRACKET Part #: B4J-F1249-00-00 Required per assembly: 1 $4.25 $3.52 - + Add to cart
19	BOLT, FLANGE Part #: 95812-12020-00 Required per assembly: 2 $9.49 $6.12 - + Add to cart
20	LUG, SEAT, RAIL, LH. Part #: BG4-F1143-11-00 Required per assembly: 1 $33.99 $29.76 - + Add to cart
21	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 4 $1.95 $1.47 - + Add to cart
22	MEMBER, SEAT, SUPPORT Part #: BG4-F255G-01-00 Required per assembly: 1 $36.99 $32.99 - + Add to cart
23	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 4 $1.95 $1.47 - + Add to cart
24	BRACKET, LOCK, 2 Part #: BG4-F287M-00-00 Required per assembly: 1 $20.98 $15.98 - + Add to cart
25	BOLT, FLANGE Part #: 95817-10020-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
26	DAMPER, BRACE, ASSEMBLY Part #: B4J-F110J-01-00 Required per assembly: 1 $411.87 - + Add to cart
27	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 6 $1.95 $1.47 - + Add to cart
28	STAY, MUFFLER, 2 Part #: BG4-F1446-11-00 Required per assembly: 1 $2.20 $1.83 - + Add to cart
29	PROTECTOR 1 Part #: B4J-F834V-00-00 Required per assembly: 1 $28.98 $18.95 - + Add to cart
30	BOLT, FLANGE Part #: 95817-10020-00 Required per assembly: 4 $8.49 $5.15 - + Add to cart
31	COVER 3 Part #: 2MB-F198J-01-00 Required per assembly: 2 $8.49 $5.07 - + Add to cart
32	RIVET, SPEC'L, SHAPE Part #: 90269-07805-00 Required per assembly: 2 $1.75 $1.13 - + Add to cart
33	PLUG (FRONT BUMPER) Part #: 5UG-F2417-00-00 Required per assembly: 2 $7.49 $5.22 - + Add to cart
34	BRACKET, FOOTREST, 3 Part #: BG4-F144H-00-00 Required per assembly: 2 $188.99 $142.48 - + Add to cart
35	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 4 $1.95 $1.47 - + Add to cart
36	REINFORCEMENT, FRAME, 1 Part #: BYP-F1986-00-00 Required per assembly: 1 $233.99 $191.90 - + Add to cart
37	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 3 $1.95 $1.47 - + Add to cart
38	DAMPER 1 Part #: B4J-F2483-00-00 Required per assembly: 2 $4.79 $3.96 - + Add to cart
39	POUCH Part #: 1P0-F8186-01-00 Required per assembly: 1 $2.89 $2.62 - + Add to cart
