Rear Brake Master Cylinder replacement parts for 2026 Honda CMX1100A2

OEM Parts Honda 2026 Honda CMX1100A2 Rear Brake Master Cylinder

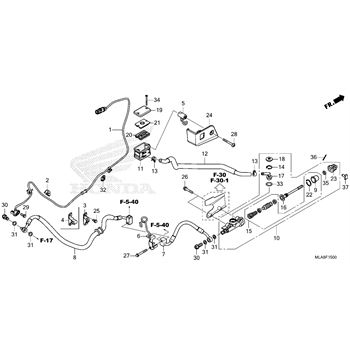

REAR BRAKE MASTER CYLINDER Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

F 15
001	SENSOR, RR. WHEEL SPEED Part #: 38510-MLA-AA1 Required per assembly: 1 ~~$66.20~~ $52.79 - + Add to cart
002	CLAMP, ABS, WIRE, (12) Part #: 38517-MGE-003 Required per assembly: 1 $3.41 - + Add to cart
003	CLAMP, BRAKE HOSE Part #: 43155-K2Y-A00 Required per assembly: 1 ~~$1.76~~ $1.41 - + Add to cart
005	COLLAR, OIL, CUP Part #: 43156-MLA-A00 Required per assembly: 1 ~~$13.40~~ $10.85 - + Add to cart
006	GUIDE, RR. MASTER CYLINDER HOSE Part #: 43157-MLA-AA0 Required per assembly: 1 ~~$8.36~~ $6.67 - + Add to cart
007	HOSE A, RR. BRAKE Part #: 43314-MLA-AA1 Required per assembly: 1 ~~$32.37~~ $25.81 - + Add to cart
008	HOSE D, RR. BRAKE Part #: 43317-MLA-AA1 Required per assembly: 1 ~~$49.81~~ $39.72 - + Add to cart
009	BOOT Part #: 43504-MB2-006 Required per assembly: 1 ~~$11.64~~ $9.93 - + Add to cart
010	MASTER CYLINDER SUB-ASSEMBLY, RR.BRAKE (NISSIN) Part #: 43510-MLA-AA1 Required per assembly: 1 ~~$136.90~~ $109.17 - + Add to cart
011	CUP, OIL Part #: 43511-KV3-831 Required per assembly: 1 ~~$27.48~~ $22.91 - + Add to cart
012	HOSE, RR. BRAKE MASTER CYLINDER Part #: 43512-MLA-AA1 Required per assembly: 1 ~~$23.01~~ $18.36 - + Add to cart
013	CLAMP Part #: 43514-KS6-701 Required per assembly: 2 ~~$15.21~~ $12.67 - + Add to cart
014	CIRCLIP, RR. Part #: 43517-KS6-701 Required per assembly: 1 ~~$5.18~~ $4.71 - + Add to cart
015	PISTON SET Part #: 43520-MJ6-315 Required per assembly: 1 ~~$54.98~~ $43.85 - + Add to cart
016	ROD, PUSH Part #: 43530-MLA-AA1 Required per assembly: 1 ~~$21.54~~ $17.18 - + Add to cart
017	CONNECTOR Part #: 45503-KV3-006 Required per assembly: 1 ~~$10.89~~ $9.32 - + Add to cart
018	COVER, DUST Part #: 45505-KV3-006 Required per assembly: 1 ~~$5.56~~ $5.05 - + Add to cart
019	CAP, MASTER, CYLINDER, (COO) Part #: 45513-HR0-305 Required per assembly: 1 ~~$5.22~~ $5.16 - + Add to cart
020	DIAPHRAGM Part #: 45520-MG7-006 Required per assembly: 1 ~~$12.29~~ $10.24 - + Add to cart
021	PLATE, DIAPHRAGM Part #: 45521-HA2-006 Required per assembly: 1 ~~$12.59~~ $10.48 - + Add to cart
022	CIRCLIP Part #: 46182-MEL-D21 Required per assembly: 1 ~~$2.92~~ $2.71 - + Add to cart
023	JOINT, BRAKE, ROD Part #: 46504-MAL-601 Required per assembly: 1 ~~$14.63~~ $11.85 - + Add to cart
024	COVER, OIL, CUP Part #: 80112-MLA-A00 Required per assembly: 1 ~~$8.78~~ $7.69 - + Add to cart
025	BOLT, FLANGE, (6X12) Part #: 90013-GHB-610 Required per assembly: 1 ~~$3.29~~ $3.06 - + Add to cart
026	BOLT, FLANGE, (6X35) Part #: 90013-GHB-700 Required per assembly: 2 ~~$3.19~~ $2.97 - + Add to cart
027	BOLT, FLANGE, (6X45) Part #: 90013-GHB-720 Required per assembly: 1 ~~$2.01~~ $1.86 - + Add to cart
028	BOLT, SOCKET, SPECIAL, (6X50) Part #: 90113-K87-A00 Required per assembly: 1 ~~$1.64~~ $1.51 - + Add to cart
029	BOLT, FLANGE, (6X16) Part #: 90116-MKA-D80 Required per assembly: 1 ~~$3.11~~ $2.90 - + Add to cart
030	BOLT, OIL, (10X22) Part #: 90145-MS9-612 Required per assembly: 2 ~~$8.20~~ $7.84 - + Add to cart
031	WASHER, OIL, BOLT Part #: 90545-300-000 Required per assembly: 4 ~~$4.80~~ $4.09 - + Add to cart
032	CLIP, CABLE, (10MM) Part #: 90690-MJE-D11 Required per assembly: 1 ~~$3.18~~ $2.96 - + Add to cart
033	O-RING (14.8X2.4) Part #: 91212-422-006 Required per assembly: 1 ~~$3.59~~ $3.26 - + Add to cart
034	SCREW, FLAT, (4X40) Part #: 93600-04040-1G Required per assembly: 2 ~~$1.55~~ $1.42 - + Add to cart
035	NUT, HEX., (8MM) Part #: 94002-08070-0S Required per assembly: 1 ~~$2.33~~ $2.16 - + Add to cart
036	PIN, SPLIT, (2.0X15) Part #: 94201-20150 Required per assembly: 1 ~~$2.07~~ $1.91 - + Add to cart
037	PIN, D, JOINT Part #: 95015-54000 Required per assembly: 1 ~~$5.63~~ $5.12 - + Add to cart
