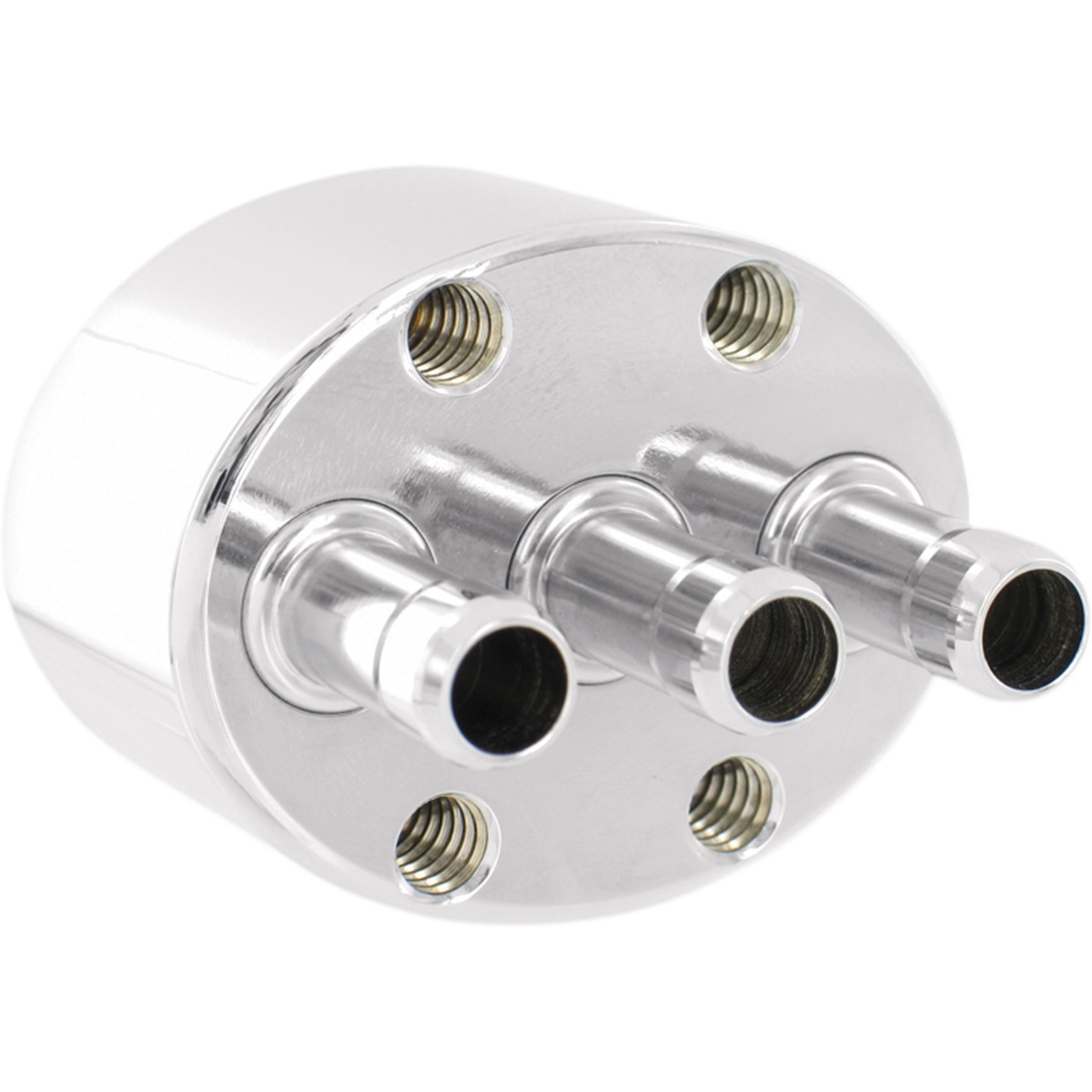

Pingel Chopper Fuel Valve

Chrome
$273.26 You save $7.69
Free Shipping!Free Shipping!
Currently not available
but we can email you when it's back in stock


Submit

Product Details

Manufacturer: Pingel

Manufacturer Part Number: 9000-CO

Item Number: AD3024834

Requires two hoses to be routed from the tank: one for on and one for reserve.
  • Designed for use on bikes with custom fuel tanks that are raised high in front, which doesn't allow proper fuel pickup with a standard reserve fuel valve
  • Keeps the bottom of the tank clean from fuel lines, giving universal options for mounting the fuel valve with mounting holes on the back of the valve
  • Smooth, clean lines with a compact design that measures 2 L x 1-1/2 H x 1-3/8 D
  • Easy-to-operate position selector knob with a ball detent for positive on/off/reserve locating
  • Two 5/16 hose inlets with one 5/16 hose outlet
  • Provides exceptional fuel flow to feed the thirstiest big-inch motors
  • CNC-machined from billet brass, polished and chromed
  • Made in the USA
Specifications
Base Color Silver
Color/Finish Chrome
Fuel Tank Outlet Size 3/8 NPT
Material Billet Brass, CNC-Machined
Petcock Body Shape Round
Petcock Outlet Direction Inward
Product Name Fuel Valve
Style Chopper
Units Each
Valve Outlet Connector Type 5/16 Hose Barb, 7.9 mm Hose Barb
