Honda Power Equipment EU2000I - Air Cleaner

TUBE, BREATHER

Part #: 15721-Z07-000 Required per assembly: 1 Note: (Honda Code 6727754)

ELEMENT, AIR, CLEANER

Part #: 17211-Z07-000 Required per assembly: 1 Note: (Honda Code 6727820)

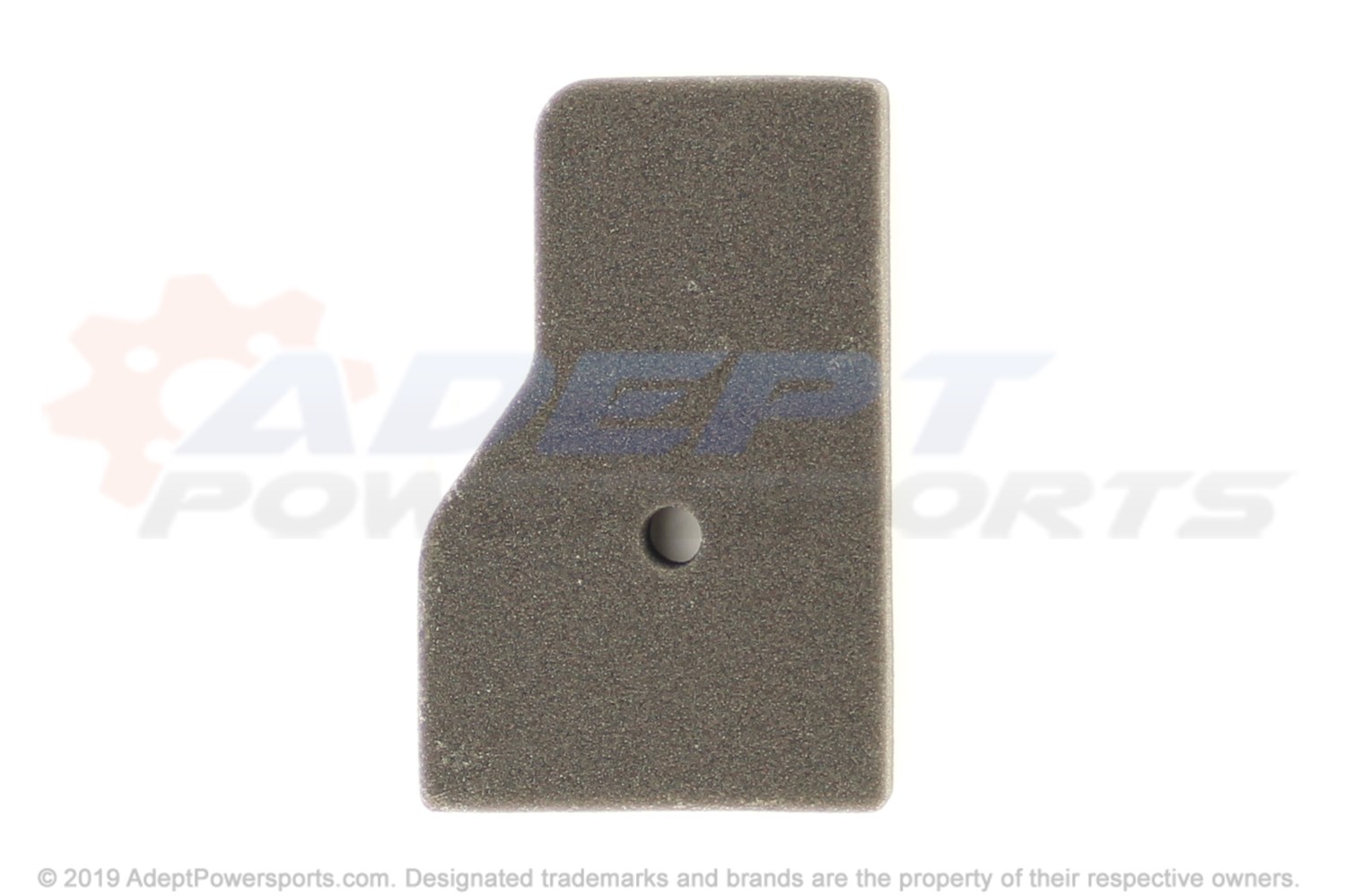

FILTER (OUTER)

Part #: 17218-Z07-000 Required per assembly: 1 Note: (OUTER) (Honda Code 6727838)

HOUSING, AIR, CLEANER

Part #: 17220-Z07-010 Required per assembly: 1

COVER, AIR, CLEANER

Part #: 17231-Z07-000 Required per assembly: 1 Note: (Honda Code 6727853)

SEAL A

Part #: 17233-Z07-000 Required per assembly: 1 Note: (Honda Code 6727861)

GSKT, AIR, IN., JOINT

Part #: 17274-ZT3-000 Required per assembly: 1 Note: (Honda Code 6022073)

BOLT, FLANGE, (5X16)

Part #: 90012-892-000 Required per assembly: 1 Note: (5X16) (Honda Code 0941096)

BOLT

Part #: 90028-ZC3-000 Required per assembly: 1 Note: (Honda Code 2734838)

NUT, FLANGE, (5MM)

Part #: 94050-05080 Required per assembly: 2

COLLAR

Part #: 90129-463-770 Required per assembly: 1

COLLAR, AIR, CLEANER

Part #: 91551-Z07-000 Required per assembly: 2 Note: (Honda Code 6728778)

TUBE, A, BREATHER

Part #: 15721-Z07-C40

TUBE, B, BREATHER

Part #: 15722-Z07-C40

INSULATOR L

Part #: 15723-Z07-C40

SUB-WIRE ASSEMBLY

Part #: 32198-Z07-C40

HEATER, BREATHER

Part #: 39310-Z07-C42

SCREW (6X16)

Part #: 90102-Z07-003 Required per assembly: 1 Note: (6X16) (Honda Code 8964611)

HEATER, KIT, BREATHER

Part #: 06390-Z07-C20
