Honda Power Equipment EU2000I - Carburetor

GASKET SET

Part #: 16010-ZM7-D01 Required per assembly: 1 Note: (Honda Code 6021869)

VALVE, SET, FLOAT

Part #: 16011-ZE0-005 Required per assembly: 1 Note: (Honda Code 1441476)

FLOAT SET

Part #: 16013-ZDJ-801 Required per assembly: 1

CHAMBER, SET, FLOAT

Part #: 16015-ZM7-003 Required per assembly: 1 Note: (Honda Code 6005599)

SCREW, SET, PILOT

Part #: 16016-ZH7-W01 Required per assembly: 1 Note: (Honda Code 4219879)

SCREW, SET, DRAIN

Part #: 16024-ZB9-005 Required per assembly: 1 Note: (Honda Code 4006458)

SCREW SET

Part #: 16028-ZW6-611 Required per assembly: 1 Note: (Honda Code 7120249)

CHOKE SET

Part #: 16044-ZM7-D01 Required per assembly: 1 Note: (Honda Code 6021877)

CARBURETOR ASSEMBLY

Part #: 16100-Z0D-D03 Required per assembly: 1

JOINT, AIR, VENT, TUBE

Part #: 16112-ZM7-D01 Required per assembly: 1 Note: (Honda Code 6021893) (CARBURETOR NO.)

SCREW, THROTTLE, STOP

Part #: 16124-ZE0-005 Required per assembly: 1 Note: (Honda Code 1441559)

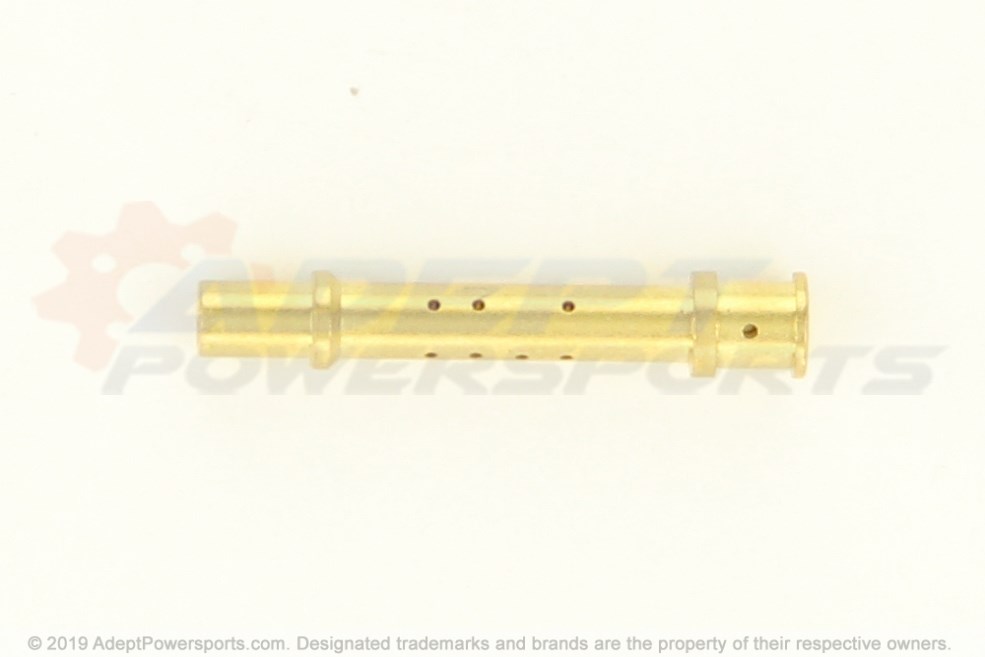

NOZZLE, MAIN

Part #: 16166-Z0D-D01 Required per assembly: 1 Note: (Honda Code 6727770)

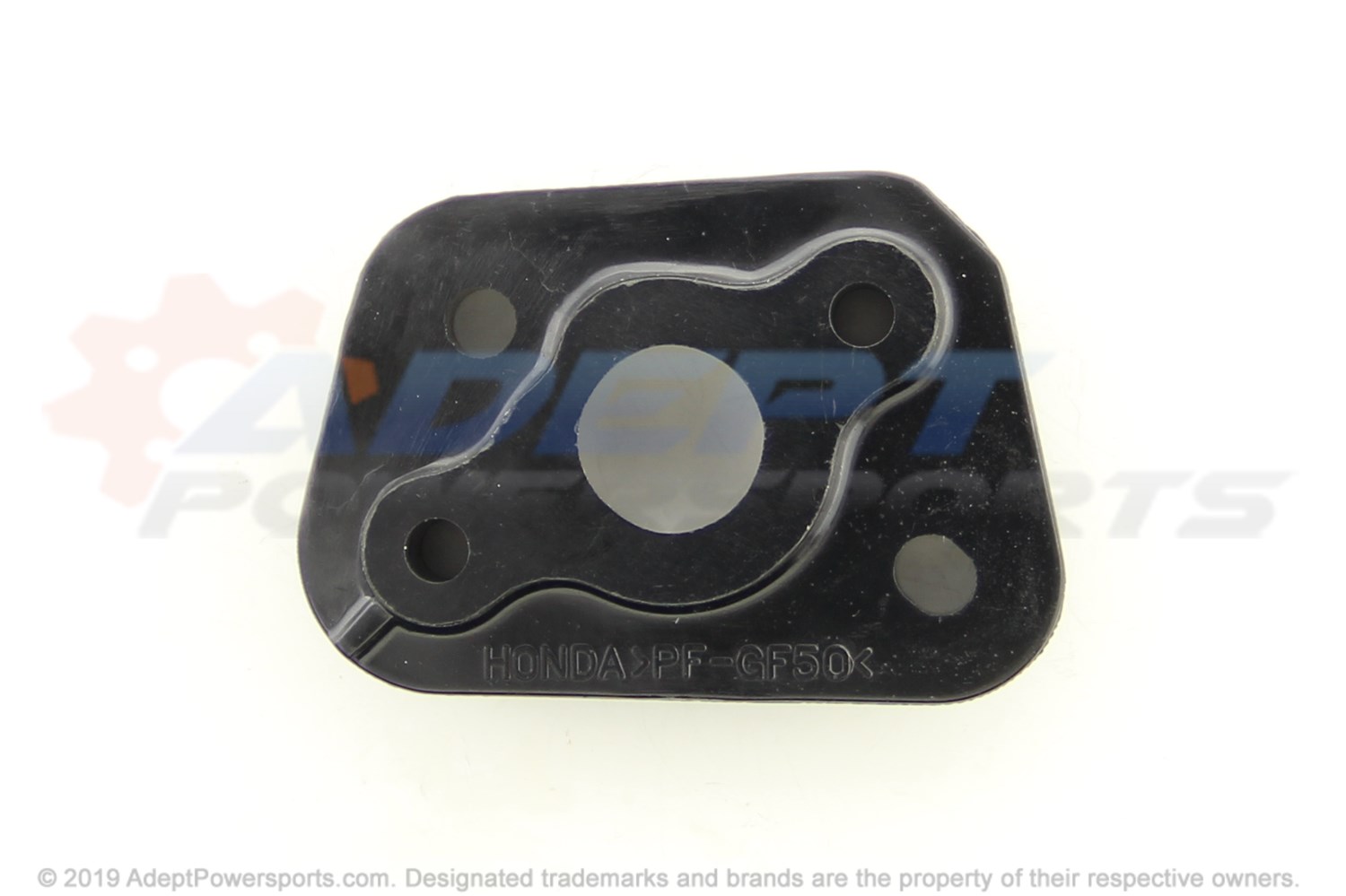

INSULATOR, CARB

Part #: 16211-Z0D-D01 Required per assembly: 1 Note: (Honda Code 6879852)

GASKET, INSULATOR

Part #: 16212-Z0D-D00 Required per assembly: 1 Note: (Honda Code 6727796)

GASKET, CARBURETOR

Part #: 16221-ZG0-801 Required per assembly: 1

SUB-WIRE ASSEMBLY

Part #: 32196-Z07-C00 Required per assembly: 1 Note: (Honda Code 6728299)

MOTOR ASSEMBLY

Part #: 36160-ZM7-D01 Required per assembly: 1 Note: (Honda Code 6048821)

LEVER, LINK

Part #: 36161-ZL0-D31 Required per assembly: 1 Note: (Honda Code 6005896) (CARBURETOR NO.)

SPRING

Part #: 36162-ZL0-D31 Required per assembly: 1 Note: (Honda Code 6042840) (CARBURETOR NO.)

MOTOR

Part #: 36165-ZL0-D31 Required per assembly: 1 Note: (Honda Code 5990098)

CVR, THROTTLE, MOTOR

Part #: 36168-ZT3-C01 Required per assembly: 1 Note: (Honda Code 6022552)

BOLT, FLANGE, (6X25)

Part #: 90004-GHB-670 Required per assembly: 2

SCREW-WASHER (3X8)

Part #: 90003-ZL0-D30 Required per assembly: 2 Note: (3X8) (Honda Code 5990577)

BOLT, HEX., (5X95)

Part #: 90010-Z0D-D00 Required per assembly: 2 Note: (5X95) (Honda Code 6728737)

CLAMP, TUBE, (7X8)

Part #: 90601-Z0D-D00 Required per assembly: 1 Note: (7X8) (Honda Code 6728760)

CLIP, HARN, (25MM)

Part #: 90683-SA0-003 Required per assembly: 1

SCREW-WASHER (4X10)

Part #: 93893-04010-08 Required per assembly: 2

BULK, HOSE, VINYL

Part #: 95003-05008-60M Note: (3.5X6.5X240)

BULK HOSE (4X7X8000)

Part #: 95003-07008-60M Required per assembly: 2

JET, MAIN, (#58)

Part #: 99101-ZG0-0580 Note: (#58) (Honda Code 5378278) (Optional)

JET, MAIN, (#60)

Part #: 99101-ZG0-0600 Note: (#60) (Honda Code 5775002) (Optional)

JET, MAIN, (#62)

Part #: 99101-ZG0-0620 Required per assembly: 1

JET, SET, PILOT, (#35)

Part #: 99204-ZE0-0350 Required per assembly: 1 Note: (#35) (Honda Code 1441609) (CARBURETOR NO.)
