Honda Power Equipment EX800 - Carburetor

FLOAT SET

Part #: 16013-883-005 Required per assembly: 1

SCREW SET A

Part #: 16016-892-005 Required per assembly: 1 Note: (Honda Code 0897645)

Not Available

SCREW SET

Part #: 16028-ZK7-S91 Required per assembly: 1 Note: (Honda Code 8866253)

SCREW SET B

Part #: 16028-892-005 Required per assembly: 1 Note: (Honda Code 0897660) (NOT AVAILABLE)

Not Available

VALVE, FLOAT

Part #: 16155-883-005 Required per assembly: 1

GASKET, INSULATOR

Part #: 16212-896-306 Required per assembly: 1 Note: (Honda Code 4593596)

GASKET, AIR, CLEANER

Part #: 16269-892-306 Required per assembly: 1 Note: (Honda Code 4513404) (Optional)

Not Available

SPRING

Part #: 16562-ZA7-000 Required per assembly: 1 Note: (Honda Code 1410430)

Not Available

BULK HOSE (4.5X1000)

Part #: 95001-45001-50M

CLIP, TUBE, (B6.5)

Part #: 95002-02650 Required per assembly: 2

CLAMP, TUBE, (D8.5)

Part #: 95002-40850-08 Required per assembly: 2

BULK HOSE (4X7X8000)

Part #: 95003-07008-60M

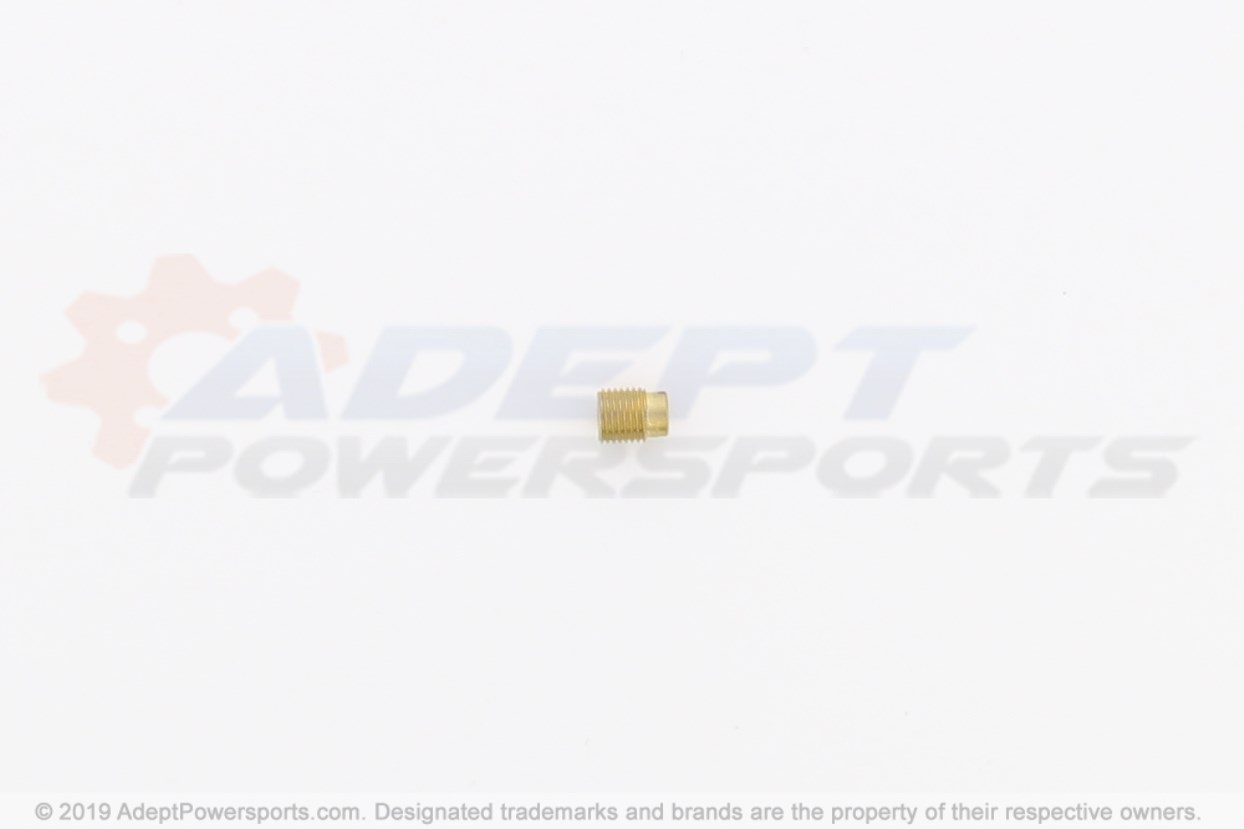

JET, MAIN, (#55)

Part #: 99101-124-0550 Note: (#55) (Honda Code 0635458)

JET, MAIN, (#58)

Part #: 99101-124-0580 Required per assembly: 1 Note: (#58) (Honda Code 0635466)

JET, MAIN, (#52)

Part #: 99101-124-0520 Note: (#52) (Honda Code 0897736) (Optional)
