Crankcase replacement parts for Piaggio Fly 50

OEM Parts Piaggio Piaggio Fly 50 Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CRANKCASE Part #: 8429215 Currently Not Available
2	STUD BOLT Part #: 969012 Currently Not Available
3	BUSH Part #: 431860 Currently Not Available
4	GASKET RING 17X28X07 Part #: 969028 Currently Not Available
5	BEARING Part #: 435363 Currently Not Available
6	DRIVEN PULLEY SHAFT Part #: 4808485 Currently Not Available
7	PIN Part #: 483785 Currently Not Available
8	SILENT-BLOCK Part #: 486081 $5.50 $4.50 - + Add to cart
9	SHOCK ABS.SUPP.SILENT-BLOCK Part #: 267823 Currently Not Available
10	SPACER Part #: 266625 Currently Not Available
11	SNAP RING Part #: 480953 Currently Not Available
12	GASKET RING Part #: 480066 Currently Not Available
12	BEARING Part #: 82671R Currently Not Available
14	PIN D.9,5 H=15 Part #: 239388 Currently Not Available
15	LOCATING DOWEL Part #: 478115 Currently Not Available
16	SCREW W/ FLANGE Part #: 484123 Currently Not Available
17	OIL BULHEAD Part #: 969625 Currently Not Available
18	GASKET RING Part #: 827085 Currently Not Available

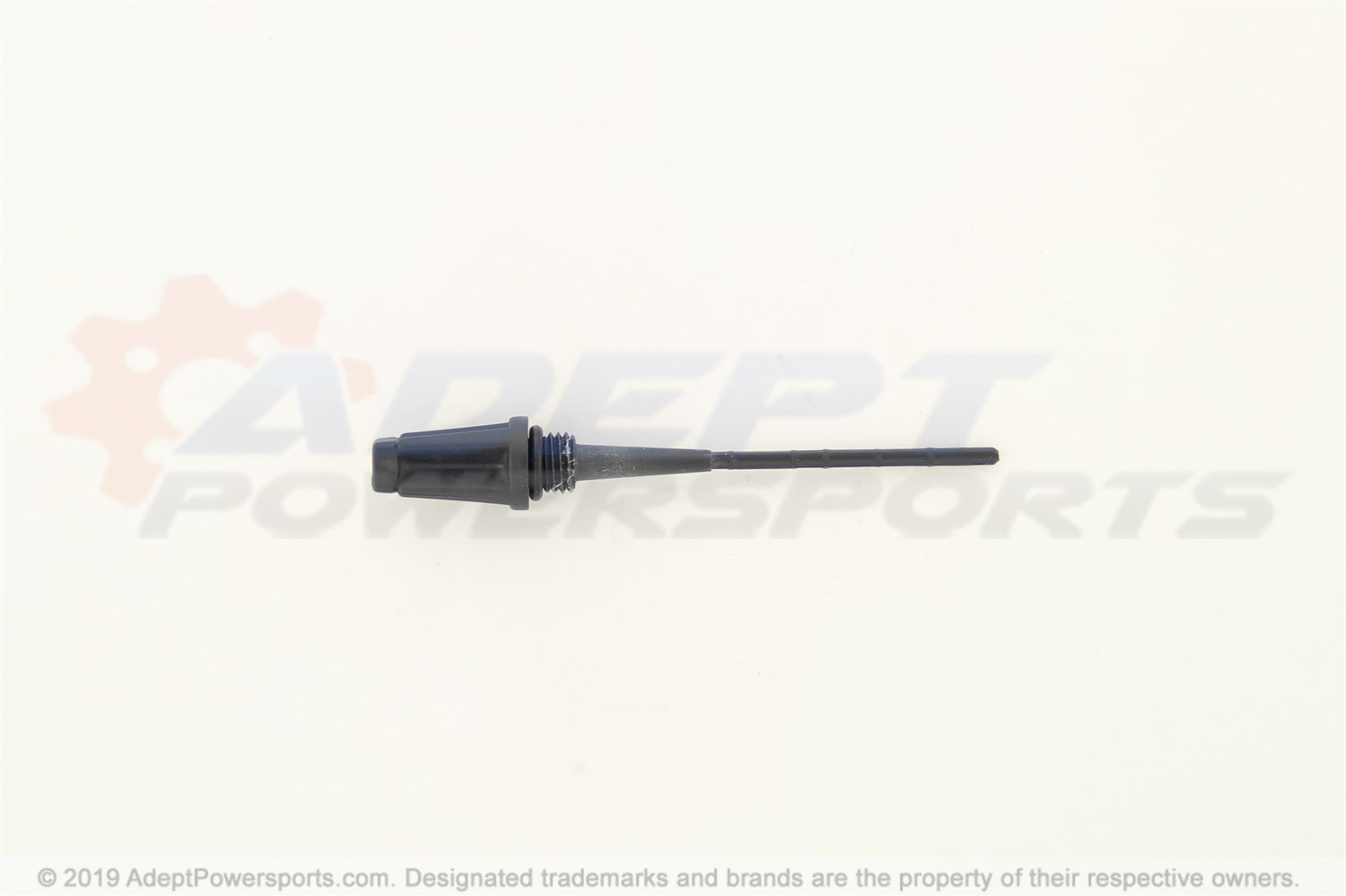

19	OIL LEVEL ROD CPL. Part #: 832130 Currently Not Available
20	SCREW W/ FLANGE Part #: 478895 Currently Not Available
