Oil Pump Assembly replacement parts for Piaggio Fly 50

OEM Parts Piaggio Piaggio Fly 50 Oil Pump Assembly

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	OIL PUMP ASSY Part #: 969319 Currently Not Available
2	SCREW W/ FLANGE Part #: 433477 Currently Not Available
3	CARTER-OIL PUMP GASKET Part #: 436751 Currently Not Available
4	O-RING 12,42X1 Part #: 434947 Currently Not Available
5	OIL PUMP GEAR Part #: 287913 Currently Not Available
6	BELLEVILLE SPRING Part #: 436695 Currently Not Available
7	SCREW W/ FLANGE Part #: 833722 Currently Not Available
8	OIL PUMP CHAIN Part #: 434447 Currently Not Available
9	MOTOR OIL CUP Part #: 844871 Currently Not Available
10	SCREW W/ FLANGE Part #: 414837 Currently Not Available
11	HOSE CLAMP Part #: 487824 Currently Not Available
12	SUMP GASKET Part #: 969132 Currently Not Available
13	OIL LEVEL ROD CPL. Part #: 844721 Currently Not Available
14	O-RING Part #: 479986 Currently Not Available
15	COVER Part #: 4783245 Currently Not Available
16	OIL PUMP CHAIN DRIFT Part #: 434345 Currently Not Available
17	GASKET RING Part #: 2879633 Currently Not Available
18	GASKET RING Part #: 844888 Currently Not Available
19	SCREW W/ FLANGE Part #: 484123 Currently Not Available
20	OIL PUMP CONTROL PINION Part #: 833495 Currently Not Available
21	WASHER Part #: 430535 Currently Not Available
22	TIMING SYSTEM CHAIN PINION CPL Part #: 969747 Currently Not Available
23	SLIDING BLOCK Part #: 969877 Currently Not Available
24	CAMSHAFT CHAIN Part #: 96933R Currently Not Available
25	CHAIN TENSIONER ROD Part #: 828561 Currently Not Available
26	SCREW Part #: 031089 Currently Not Available
27	SPACER Part #: 478247 Currently Not Available
28	CHAIN TENSIONER ASSY. Part #: 82650R Currently Not Available
29	SCREW W/ FLANGE Part #: 833722 Currently Not Available

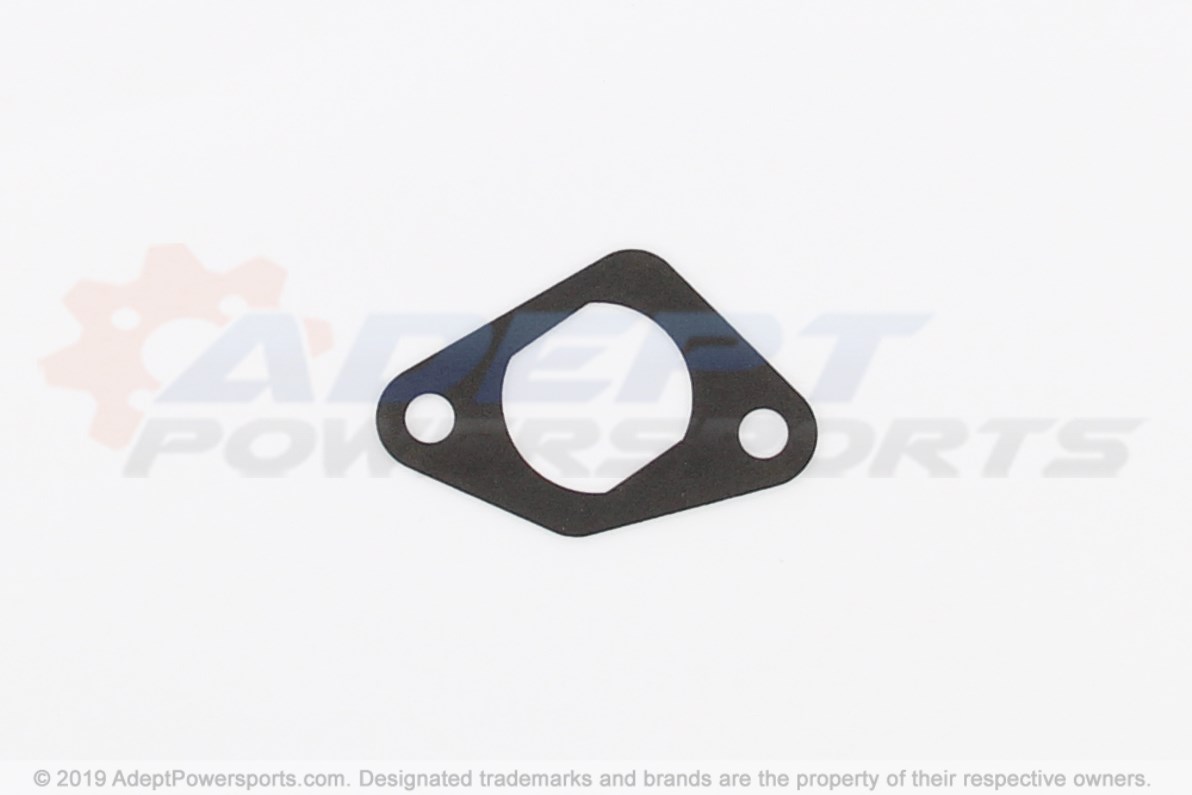

30	GASKET Part #: 847928 $5.18 $4.24 - + Add to cart
