Base Gasket All 50Cc Air U replacement parts for Piaggio Typhoon

OEM Parts Piaggio Piaggio Typhoon Base Gasket All 50Cc Air U

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

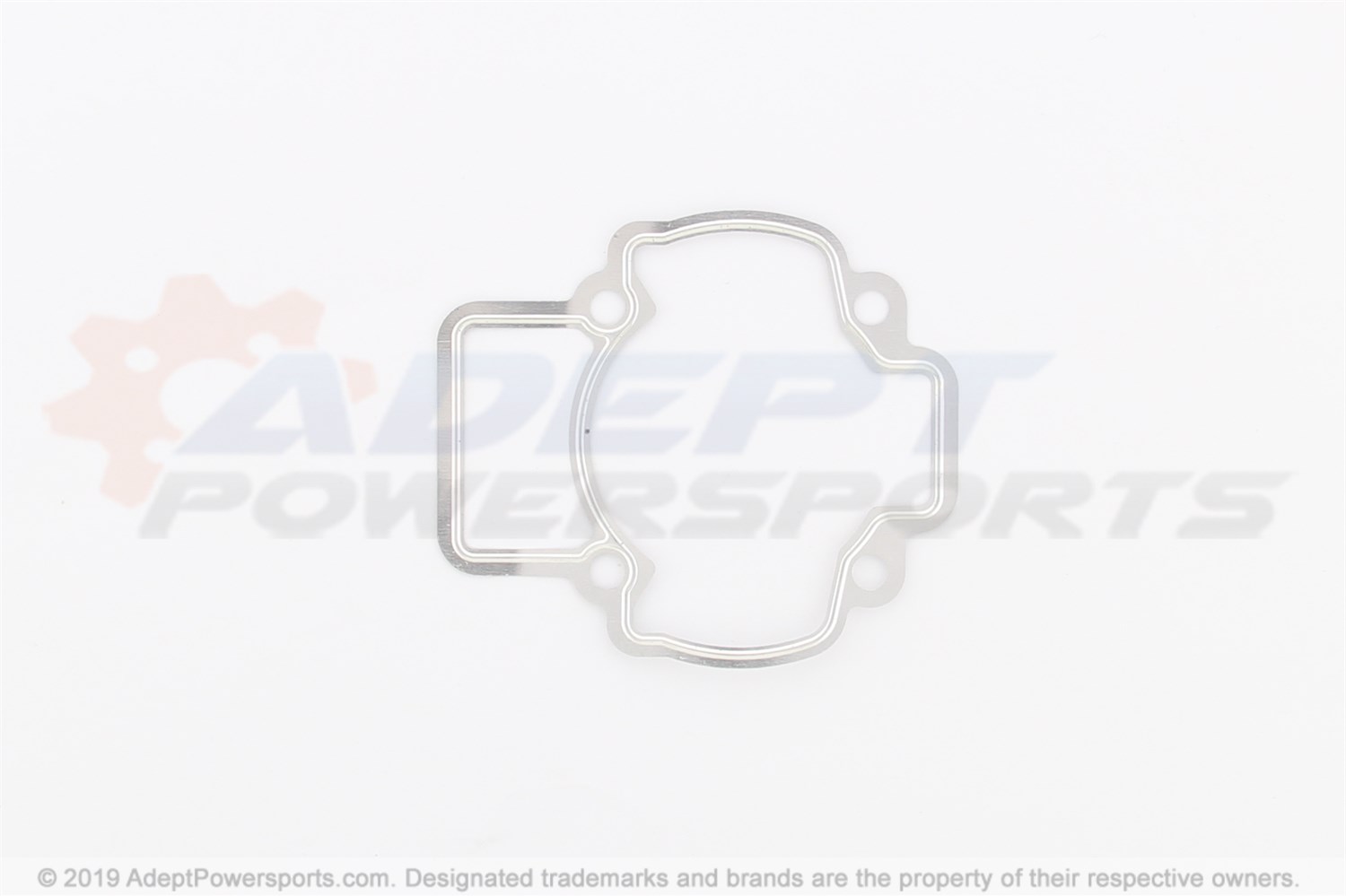

1	CYLINDER BASE GASKET Part #: 286810 Currently Not Available
2	PISTON PIN Part #: 239404 Currently Not Available
3	STOP RING Part #: 239455 Currently Not Available
4	GASKET RING Part #: 825416 Currently Not Available
4	GASKET RING Part #: 827854 Currently Not Available
4	GASKET RING Part #: 827853 Currently Not Available
5	STUD BOLT Part #: 239397 Currently Not Available
6	PISTON ASSY 2M CARB Part #: 825185 Currently Not Available
6	PISTON ASSY. 1ST OVER Part #: 825182 Not Available
6	PISTON ASSY 50CC CAT 3 Part #: 4878020003-6 Currently Not Available
6	PISTON ASSY 4CAT.(P) Part #: 4878020004 Currently Not Available
6	PISTON ASSY 2CAT.(N) Part #: 4878020002 Currently Not Available
6	PISTON ASSY 1CAT.(M) Part #: 4878020001 Currently Not Available
7	CYLINDER WITH PISTON 45KM Part #: 831116 Currently Not Available
