Cap For Oil Mix Tank replacement parts for Piaggio Typhoon

OEM Parts Piaggio Piaggio Typhoon Cap For Oil Mix Tank

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

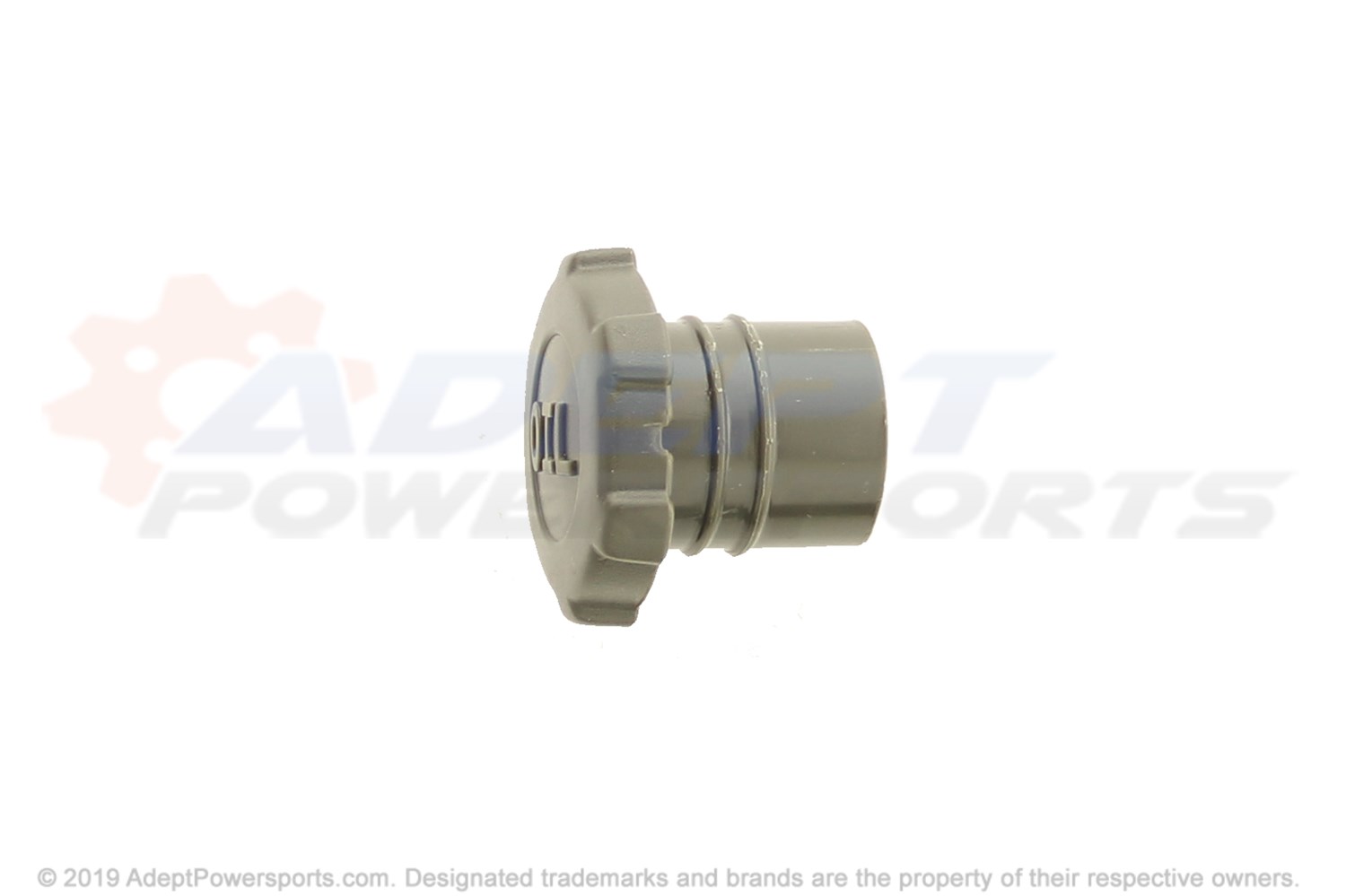

1	CAP FOR OIL MIX TANK Part #: 259829 Currently Not Available
2	OIL TANK RUBBER GASKET Part #: 295522 Currently Not Available
3	OIL LEVEL GAUGE Part #: 573458 Currently Not Available
4	SCREW Part #: 259348 $1.44 $1.18 - + Add to cart
5	HOSE CLAMP Part #: 577557 Currently Not Available
6	GASKET Part #: 196868 Currently Not Available
7	UNION CPL. Part #: 574362 Currently Not Available
8	HOSE CLAMP Part #: CM002903 Currently Not Available
9	COMPLETE OIL TANK Part #: 573636 Currently Not Available
