Emissions Control >317246 replacement parts for Triumph Bonneville & Bonneville T100 Carbs

OEM Parts Triumph Bonneville & Bonneville T100 Carbs Emissions Control >317246

Emissions Control >317246 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

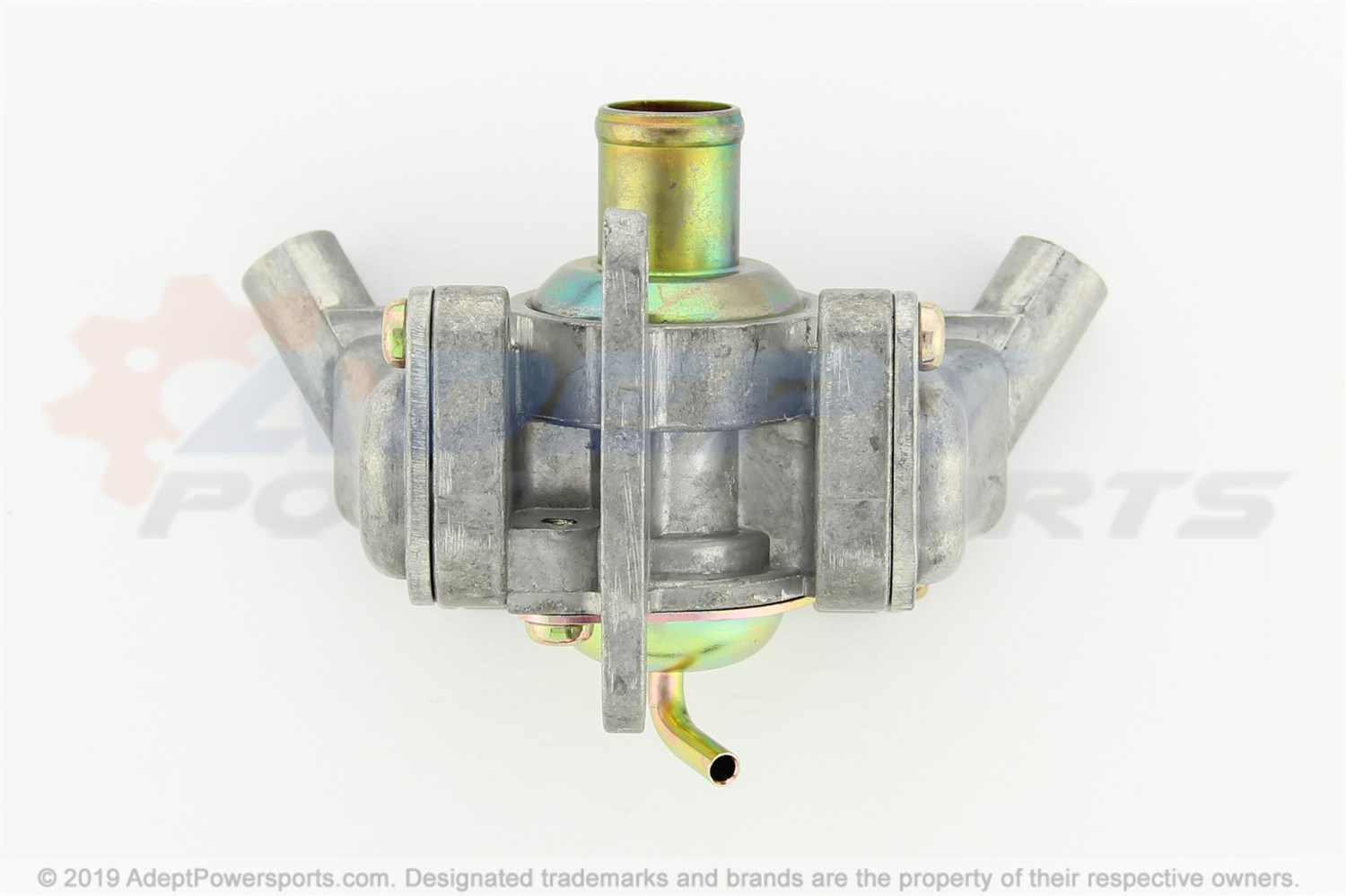

1	REED VALVE ASSEMBLY Part #: T1250070 Required per assembly: 1 Not Available
2	REED VALVE Part #: T1250151 Required per assembly: 2 ~~$55.43~~ $54.46 - + Add to cart
3	COVER, REED, VALVE, RH Part #: T1250035 Required per assembly: 1 Note: RH ~~$15.42~~ $15.15 - + Add to cart
4	COVER, REED, VALVE, LH Part #: T1250030 Required per assembly: 1 Note: LH ~~$15.42~~ $15.15 - + Add to cart
5	RESTRICTOR, VACUUM, LINE, SAI Part #: T1252500 Required per assembly: 1 ~~$10.49~~ $10.30 - + Add to cart
6	SCREW, M5, SAI Part #: T1250040 Required per assembly: 4 ~~$3.50~~ $3.18 - + Add to cart
7	TUBE, ASSEMBLY, CASTELLATED, I.D.8 Part #: T1250050 Required per assembly: 2 Note: > ENG NO 142159 Not Available
7	FAB, PIPE, OD, 12.7, CASTELLATED Part #: T1250045 Required per assembly: 2 Note: ENG NO 142160 > Not Available
8	VACUUM, LINE, ASSEMBLY, 447LG Part #: T1252550 Required per assembly: 1 ~~$25.75~~ $25.30 - + Add to cart
9	CLIP, HOSE, OETIKERS, STEPLESS Part #: T3700083 Required per assembly: 2 ~~$7.59~~ $6.90 - + Add to cart
10	PIPE, ID, 8MM, M12 Part #: T1250065 Required per assembly: 2 Note: ENG NO 142160 > ~~$22.27~~ $21.88 - + Add to cart
10	PIPE, ID, 8MM, M12 Part #: T1250100 Required per assembly: 2 Note: > ENG NO 142159 Not Available
11	PIPE, FEED, SECONDARY, AIR, INJ Part #: T1251001 Required per assembly: 1 Not Available
12	HOSE, ID, 9.5, FORMED Part #: T1250060 Required per assembly: 2 ~~$10.71~~ $10.52 - + Add to cart
13	BOLT, HHF, LGHTD, M6, X, 16, SLV Part #: T3205063 Required per assembly: 2 ~~$3.67~~ $3.34 - + Add to cart
14	SEAL, ID10, OD16, L20 Part #: T1250055 Required per assembly: 2 ~~$14.38~~ $13.71 - + Add to cart
15	CLIP, BREATHER, PIPE Part #: T3700051 Required per assembly: 4 ~~$2.36~~ $2.15 - + Add to cart
16	WASHER, 12X18X1 Part #: T1250001 Required per assembly: 2 Not Available
17	TWIN, CLIP, BRAKE, HOSE Part #: T2040811 Required per assembly: 1 ~~$2.75~~ $2.50 - + Add to cart
