Fuel Tank & Fittings-Bonneville >317246 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FUEL, TANK/HEAT, PAD, ASSEMBLY, G'WD Part #: T2400162HK Required per assembly: 1 Note: Goodwood Green 210262 > Not Available
1	FUEL TANK ASSEMBLY Part #: T2400162PG Required per assembly: 1 Note: Jet Black 161318 > ~~$1,891.09~~ $1,858.55 - + Add to cart
1	FUEL TANK ASSEMBLY Part #: T2400360CR Required per assembly: 1 Note: Scarlet Red > 161317 Not Available
1	FUEL TANK ASSEMBLY Part #: T2400365CL Required per assembly: 1 Note: Cardinal Red 161318 > 210261 Not Available
1	FUEL TANK ASSEMBLY Part #: T2400162MH Required per assembly: 1 Note: Aluminium Silver 241570 > ~~$2,289.21~~ $2,249.83 - + Add to cart
1	FUEL TANK ASSEMBLY Part #: T2400360JJ Required per assembly: 1 Note: Cobalt Blue > 161317 Not Available
1	FUEL TANK ASSEMBLY Part #: T2400360HI Required per assembly: 1 Note: Forest Green > 161317 Not Available
1	FUEL TANK ASSEMBLY Part #: T2400365JH Required per assembly: 1 Note: Aegean Blue 210262 > 241569 Not Available
1	FUEL TANK ASSEMBLY Part #: T2400360JQ Required per assembly: 1 Note: Sky blue > 161317 Not Available

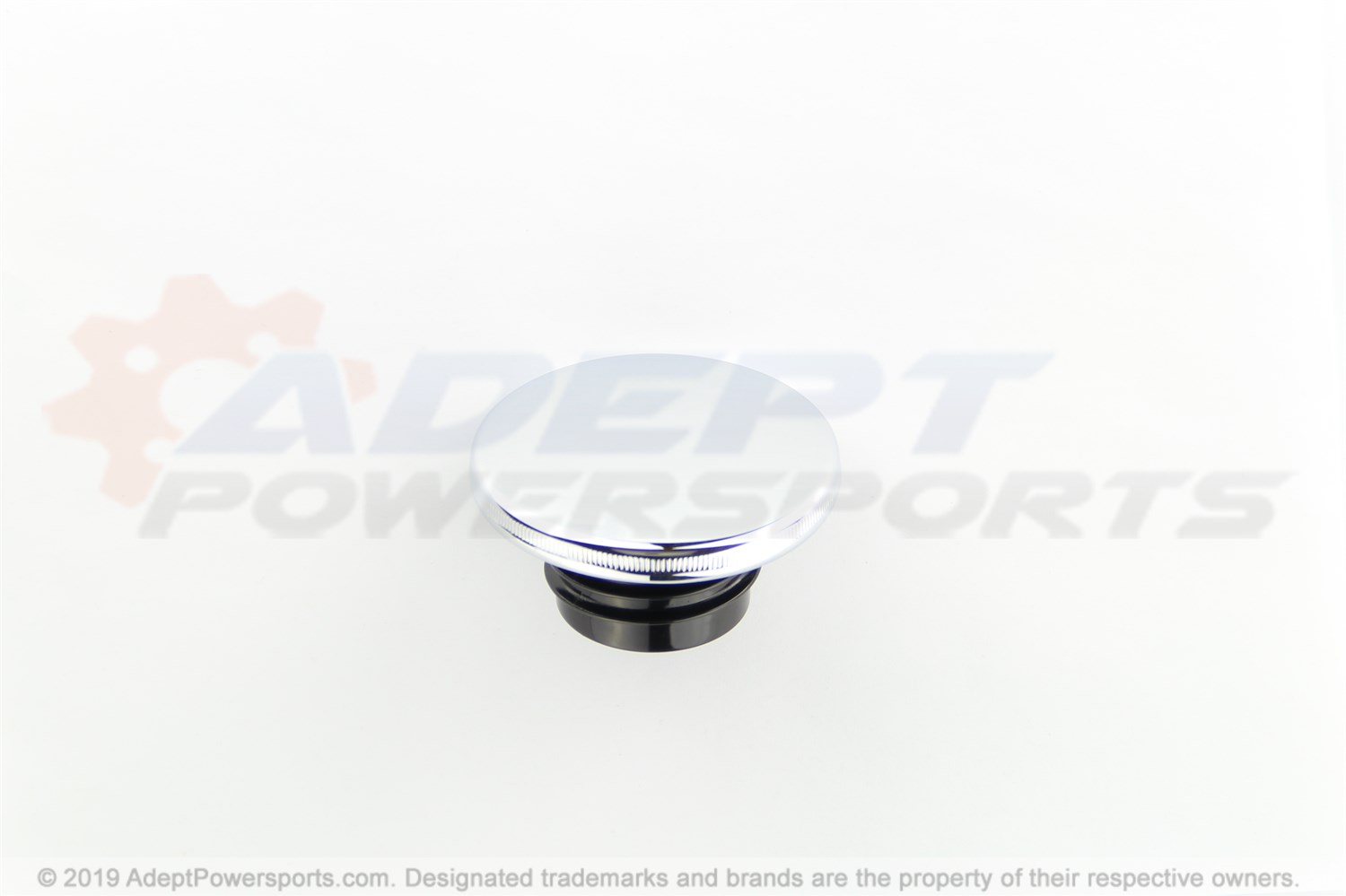

2	FUEL, FILLER, CAP, SCREW, TYPE Part #: T2400597 Required per assembly: 1 ~~$102.11~~ $100.35 - + Add to cart

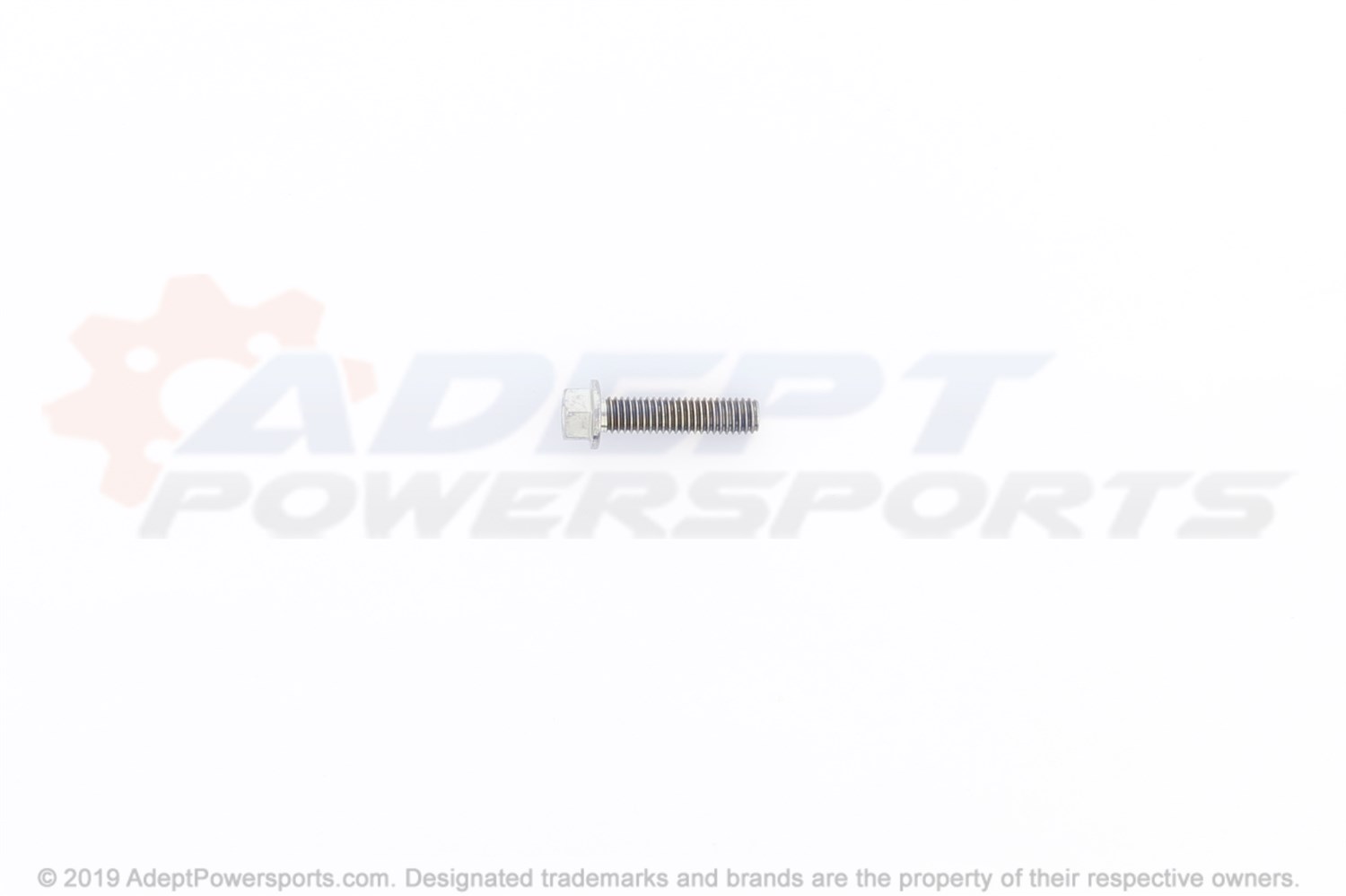

3	SCREW, SECURE, M5X16 Part #: T3330529 Required per assembly: 4 Note: M5 x 16mm ~~$6.46~~ $5.87 - + Add to cart
4	BADGE, FUEL, TANK, RH Part #: T3900341 Required per assembly: 1 Not Available
5	BADGE, FUEL, TANK, LH Part #: T3900340 Required per assembly: 1 ~~$56.36~~ $55.38 - + Add to cart
6	LOGO, FUEL, TANK, BADGE Part #: T3900078 Required per assembly: 1 Note: PART NO LONGER AVAILABLE Not Available
7	SPIDERFIX PUSHON FASTENER DIA3 Part #: T3500071 Required per assembly: 4 ~~$1.19~~ $1.08 - + Add to cart
8	GASKET, TANK, BADGE, RH Part #: T3660140 Required per assembly: 1 ~~$11.27~~ $10.24 - + Add to cart
9	GASKET, TANK, BADGE, LH Part #: T3660141 Required per assembly: 1 ~~$11.27~~ $10.24 - + Add to cart
10	BUSH, TANK, MOUNT Part #: T2400603 Required per assembly: 2 ~~$2.75~~ $2.50 - + Add to cart
11	FUEL TAP ASSEMBLY Part #: T2400150 Required per assembly: 1 Note: T309RT ~~$114.40~~ $112.43 - + Add to cart
12	SEAL FUEL TAP (EN) Part #: 2400086T0301 Required per assembly: 2 ~~$5.42~~ $4.93 - + Add to cart
13	SPACER, FUEL, TAP Part #: T2400151 Required per assembly: 1 Not Available
14	BOLT, HHF, M6, X, 25, S/S Part #: T3331102 Required per assembly: 2 Not Available
15	SEALING WASHER Part #: 3550150T0301 Required per assembly: 2 ~~$1.54~~ $1.40 - + Add to cart
16	BOLT, HHF, LGHTD, M6X1.0X28, SLV Part #: T3205083 Required per assembly: 2 ~~$2.59~~ $2.35 - + Add to cart
17	FLANGED, SLEEVE, M6X10X18 Part #: T3010042 Required per assembly: 2 ~~$1.87~~ $1.70 - + Add to cart
18	GROMMET, LONG, TANK, REAR, MOUNT Part #: T2400602 Required per assembly: 2 ~~$2.20~~ $2.00 - + Add to cart
19	HEAT, PAD, FUEL, TANK, RH Part #: T2301091 Required per assembly: 1 ~~$53.34~~ $52.42 - + Add to cart
20	HEAT, PAD, FUEL, TANK, LH Part #: T2301092 Required per assembly: 1 ~~$53.34~~ $52.42 - + Add to cart
21	ROLL, OVER, VALVE, SPARES, KIT Part #: T2401560 Required per assembly: 1 Note: > 265150 ~~$51.92~~ $51.01 - + Add to cart
21	HOSE, TANK, BREATHER, FORMED Part #: T2401550 Required per assembly: 1 Note: 265151 > ~~$14.07~~ $13.82 - + Add to cart
22	VALVE, ROLL, OVER Part #: T2400074 Required per assembly: 1 Note: 265151 > ~~$37.31~~ $36.67 - + Add to cart
22	ROLL, OVER, VALVE, SPARES, KIT Part #: T2401560 Required per assembly: 1 Note: > 265150 ~~$51.92~~ $51.01 - + Add to cart
23	CLIP, BRAKE, HOSE Part #: T3700233 Required per assembly: 1 ~~$6.19~~ $5.63 - + Add to cart
24	HOSE, TANK, BREATHER, FORMED Part #: T2400774 Required per assembly: 1 ~~$14.07~~ $13.82 - + Add to cart
25	CABLE TIE Part #: T3700015 Required per assembly: 1 ~~$0.93~~ $0.84 - + Add to cart
