Clutch replacement parts for Triumph Rocket III Touring

OEM Parts Triumph Rocket III Touring Clutch

Clutch Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLUTCH ASSEMBLY Part #: T1170066 Required per assembly: 1 $1,324.57 $1,301.79 - + Add to cart
2	OUTER, COMP, CLUTCH Part #: T1170046 Required per assembly: 1 $692.20 $680.29 - + Add to cart
3	BEARING, PRESSURE, PLATE Part #: T1170067 Required per assembly: 1 $29.87 $29.35 - + Add to cart
4	BUSH, CLUTCH Part #: T1170055 Required per assembly: 1 $60.65 $59.60 - + Add to cart
5	]PROCKET, AUXILIARY, DRIVE Part #: T1170943 Required per assembly: 1 $158.94 $156.20 - + Add to cart
6	BRG, NEEDLE, K32X37X13 Part #: T1175200 Required per assembly: 1 $17.59 $17.28 - + Add to cart
7	BUSH, SPROCKET Part #: T1174900 Required per assembly: 1 $8.64 $7.86 - + Add to cart
8	WASHER, THRUST Part #: T1170941 Required per assembly: 1 $5.81 $5.28 - + Add to cart
9	CENTRE, CLUTCH Part #: T1170027 Required per assembly: 1 $341.82 $335.94 - + Add to cart
10	SPARES, KIT, FRICTION, DISCS Part #: T1171055 Required per assembly: 1 $512.76 $503.93 - + Add to cart
11	DISC A FRICTION Part #: T1170051 Required per assembly: 1 $25.16 $24.72 - + Add to cart
12	DISC A FRICTION Part #: T1170052 Required per assembly: 8 $25.23 $24.78 - + Add to cart
13	DISC B FRICTION Part #: T1170026 Required per assembly: 1 $17.14 $16.84 - + Add to cart
14	PLATE, CLUTCH Part #: T1170053 Required per assembly: 9 $20.51 $20.15 - + Add to cart
15	SEAT, JUDDER, SPG Part #: T1170024 Required per assembly: 1 $11.35 $11.14 - + Add to cart
16	SPG, JUDDER Part #: T1170023 Required per assembly: 1 $21.96 $21.58 - + Add to cart

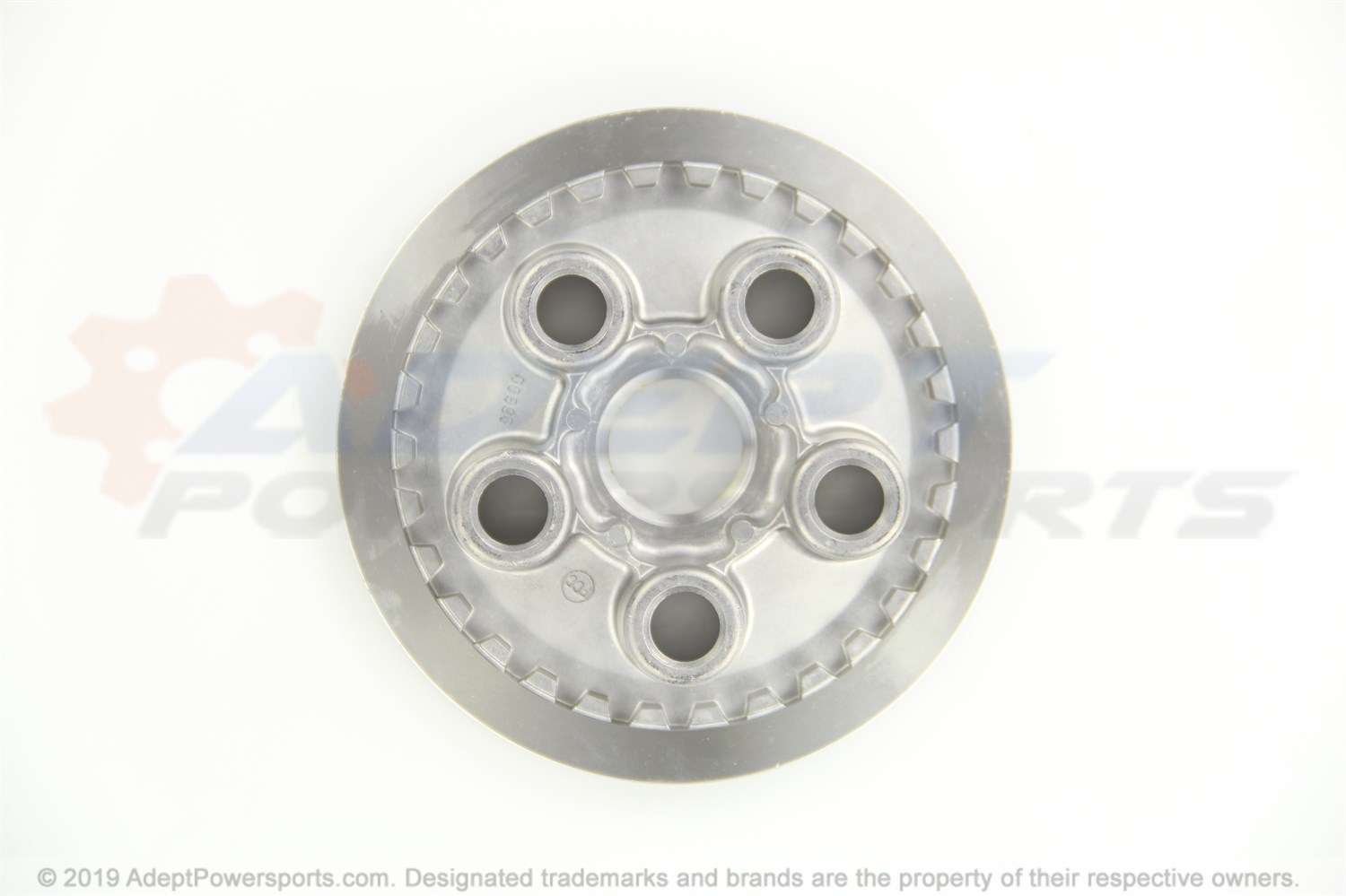

17	PLATE, CLUTCH, PRESSURE Part #: T1170061 Required per assembly: 1 $229.01 $225.06 - + Add to cart
18	SPRING, CLUTCH Part #: T1171201 Required per assembly: 5 $10.09 $9.18 - + Add to cart
19	SPECIAL, BOLT, M6X30 Part #: T1170022 Required per assembly: 5 $2.90 $2.64 - + Add to cart
20	NUT, CLUTCH, 22MM Part #: T1170106 Required per assembly: 1 $12.15 $11.93 - + Add to cart
21	WASHERC CLUTCH Part #: T1179999 Required per assembly: 1 $10.52 $10.33 - + Add to cart
22	WASHER, ID, 22, OD34 Part #: T1171282 Required per assembly: 1 $4.74 $4.31 - + Add to cart
23	SPACER, CLUTCH, ASSEMBLY Part #: T1172727 Required per assembly: 1 $9.52 $8.65 - + Add to cart
24	LIFTER, PIECE, CLUTCH Part #: T1172023 Required per assembly: 1 $78.63 $77.26 - + Add to cart
25	WASHER, WAVE Part #: T3550380 Required per assembly: 1 $3.85 $3.50 - + Add to cart
26	WASHER, 14.0X20.0X1.6 Part #: T3550236 Required per assembly: 1 Note: > Eng No 369111; Fitted with T1170029, T1170057 & T1170059 (issue1). NOT required with T1170059 (issue 2), T1170159 or T1172023 lifter pieces dut to 4.1mm shoulder width $3.01 $2.74 - + Add to cart
