Side & Infill Panels replacement parts for Triumph Rocket III Touring

OEM Parts Triumph Rocket III Touring Side & Infill Panels

Side & Infill Panels Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SIDEPANEL, LH Part #: T2307221PR Required per assembly: 1 Note: Phantom Black - ABS Version > 574820 ~~$420.76~~ $382.51 - + Add to cart
1	SIDEPANEL, LH Part #: T2307221PG Required per assembly: 1 Note: Jet Black ~~$420.76~~ $382.51 - + Add to cart
1	SIDEPANEL, LH Part #: T2307222CX Required per assembly: 1 Note: Cranberry Red - ABS Version - 574821 > ~~$379.04~~ $372.51 - + Add to cart
1	SIDEPANEL, LH Part #: T2307221JN Required per assembly: 1 Note: Eclipse Blue ~~$420.76~~ $382.51 - + Add to cart
1	SIDEPANEL, LH Part #: T2307222PR Required per assembly: 1 Note: Phantom Black - ABS Version - 574821 > ~~$379.04~~ $372.51 - + Add to cart
2	SIDEPANEL, RH Part #: T2307225PR Required per assembly: 1 Note: Phantom Black - ABS Version - 574821 > ~~$379.04~~ $372.51 - + Add to cart
2	SIDEPANEL, RH Part #: T2307224JN Required per assembly: 1 Note: Eclipse Blue ~~$420.76~~ $382.51 - + Add to cart
2	SIDEPANEL, RH Part #: T2307225CX Required per assembly: 1 Note: Cranberry Red - ABS Version - 574821 > ~~$379.04~~ $372.51 - + Add to cart
2	SIDEPANEL, RH Part #: T2307224PR Required per assembly: 1 Note: Phantom Black - ABS Version > 574820 ~~$422.99~~ $384.54 - + Add to cart
2	SIDEPANEL, RH Part #: T2307224PG Required per assembly: 1 Note: Jet Black ~~$420.76~~ $382.51 - + Add to cart

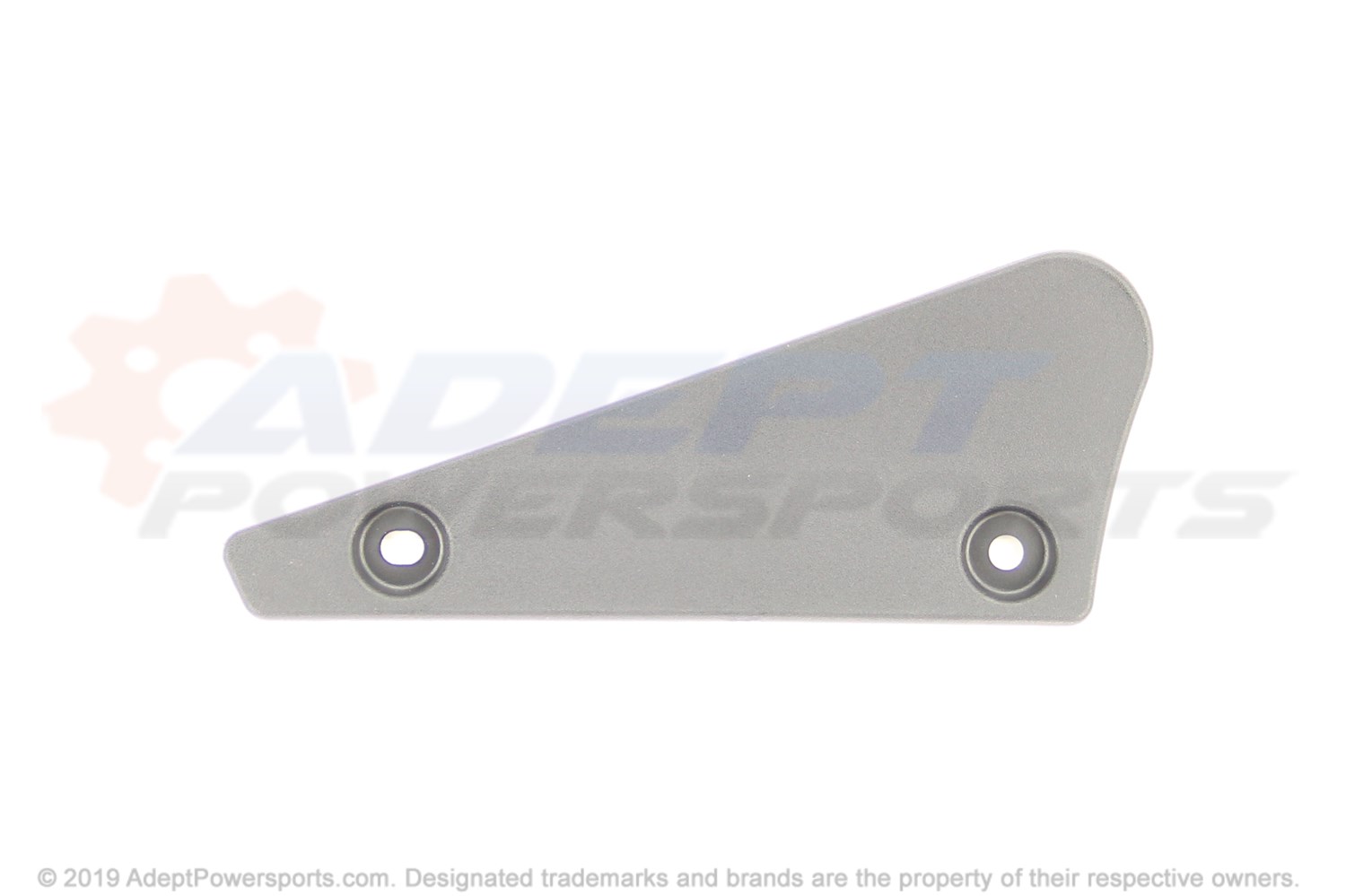

3	MOULDING, INFILL, SIDEPANEL, LH Part #: T2307435 Required per assembly: 1 Not Available
4	MOULDING, INFILL, SIDEPANEL, RH Part #: T2307436 Required per assembly: 1 ~~$13.50~~ $13.26 - + Add to cart
5	INFILL, ENGINE, LHS Part #: T2301930 Required per assembly: 1 ~~$17.58~~ $17.27 - + Add to cart
6	INFILL, ENGINE, RHS Part #: T2301931 Required per assembly: 1 ~~$17.58~~ $17.27 - + Add to cart
7	GROMMET, DIA, 20X3X6.2, ID Part #: T3020003 Required per assembly: 2 ~~$2.10~~ $1.91 - + Add to cart
8	BOLT, HHF, M8X1.25X43, SLV Part #: T3202325 Required per assembly: 2 ~~$1.70~~ $1.54 - + Add to cart
9	PLUG, DIA, 17.5MM Part #: T3451400 Required per assembly: 1 ~~$2.20~~ $2.00 - + Add to cart
10	SCREW, PAN/HD, TX, M6X1.0X12, SLV Part #: T3331043 Required per assembly: 4 ~~$1.01~~ $0.92 - + Add to cart
11	GROMMET, SIDE, PANEL Part #: T3020029 Required per assembly: 4 ~~$2.68~~ $2.43 - + Add to cart
12	SCREW, TX, PAN/HD, M6X1.0X16, SLV Part #: T3330334 Required per assembly: 2 ~~$2.75~~ $2.50 - + Add to cart
