Handlebars, Top Yoke, Cables & Mirrors replacement parts for Triumph Scrambler EFI

OEM Parts Triumph Scrambler EFI Handlebars, Top Yoke, Cables & Mirrors

Handlebars, Top Yoke, Cables & Mirrors Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HANDLEBAR, ASSEMBLY, 22.2MM Part #: T2040394 Required per assembly: 1 Note: > 606026 See Tech News 149 $204.91 - + Add to cart
1	HANDLEBAR, ASSEMBLY, BLACK Part #: T2044497 Required per assembly: 1 Note: 606027 > See Tech News 149 $204.91 - + Add to cart
2	WEIGHT, BAR, END Part #: T2043403 Required per assembly: 2 ~~$30.19~~ $29.67 - + Add to cart
3	SCREW, CSK, M5X0.8X30, SLV, ENC Part #: T3330643 Required per assembly: 2 $2.63 - + Add to cart
4	GRIP, HANDLEBAR, LH Part #: T2040740 Required per assembly: 1 $19.60 - + Add to cart
5	GRIP, HANDLEBAR, RH Part #: T2040254 Required per assembly: 1 Note: Includes Throttle Tube $19.60 - + Add to cart
6	THROTTLE, ACTUATOR, TWIN, CABLE Part #: T2040252 Required per assembly: 1 ~~$59.83~~ $58.79 - + Add to cart
7	SWITCH, ASSEMBLY, HANDLEBAR, RH Part #: T2040096 Required per assembly: 1 ~~$170.73~~ $167.79 - + Add to cart
8	SCREW, M5, X, 22 Part #: T3331800 Required per assembly: 2 $1.59 - + Add to cart

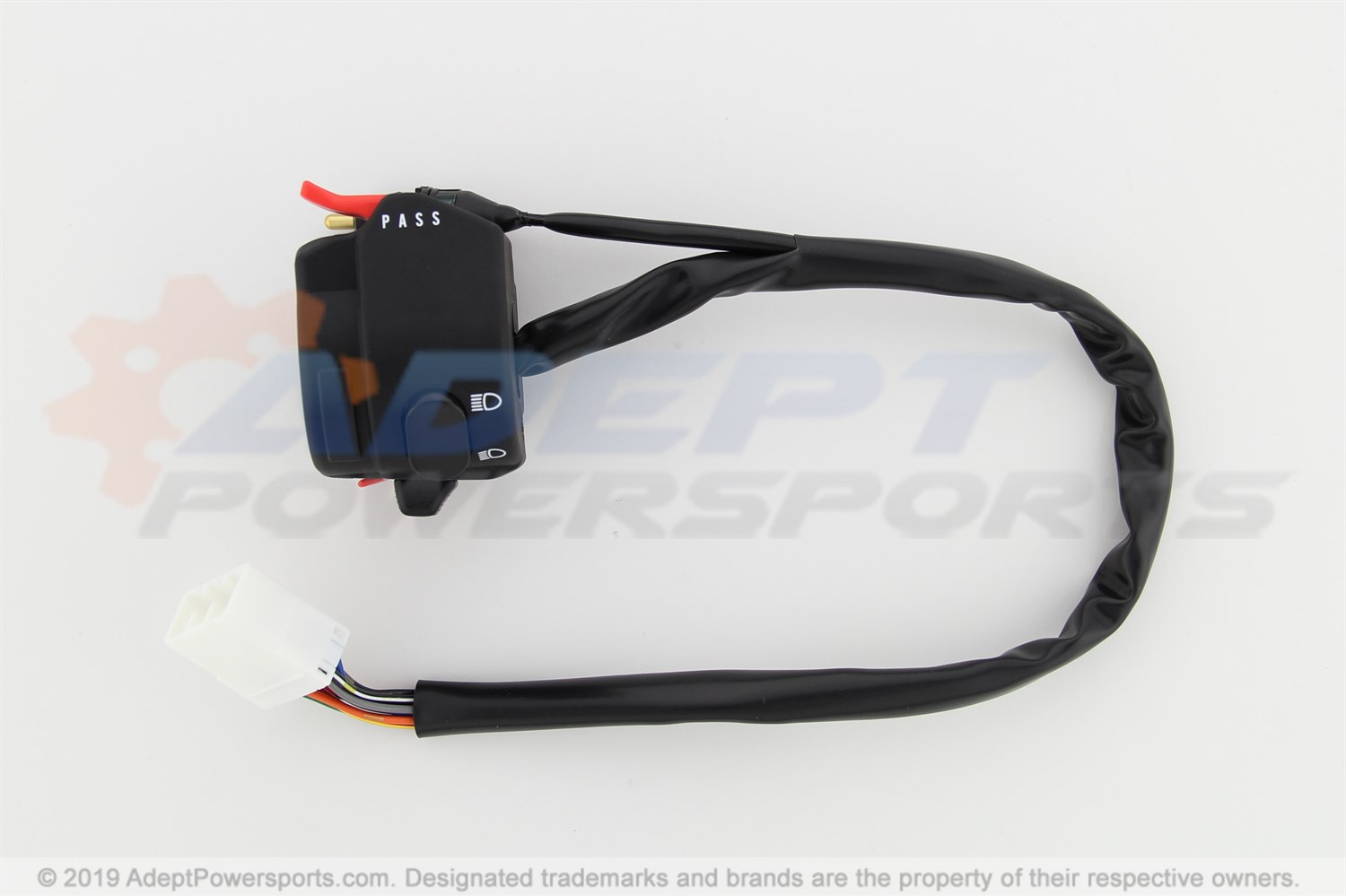

9	SWITCH, ASSEMBLY, LIGHTS, ON, LH Part #: T2040328 Required per assembly: 1 ~~$200.66~~ $197.20 - + Add to cart
10	SCREW, M5, X, 40 Part #: T3331810 Required per assembly: 1 Not Available
11	SCREW, M5, X, 30 Part #: T3331790 Required per assembly: 1 $1.18 - + Add to cart
12	YOKE, ASSEMBLY, UPPER Part #: T2042565 Required per assembly: 1 Note: 447046 > See Tech News 118 ~~$248.22~~ $243.95 - + Add to cart
12	YOKE, ASSEMBLY, UPPER, MG Part #: T2042555 Required per assembly: 1 Note: > 447045 See Tech News 118 ~~$248.22~~ $243.95 - + Add to cart
13	NUT Part #: T2043082 Required per assembly: 2 $9.92 - + Add to cart
14	WASHER, 10.5, X, 30, X, 2.5 Part #: T3555030 Required per assembly: 2 $8.31 - + Add to cart
15	RUBBER, BUSH, H/BAR, CLAMP Part #: T2047041 Required per assembly: 4 $8.08 - + Add to cart
16	SLEEVE, DIA, 13X43 Part #: T2040807 Required per assembly: 2 Not Available
17	YOKE, UPPER, 909MG Part #: T2042556 Required per assembly: 1 Note: > 447045 See Tech News 118 ~~$239.39~~ $235.27 - + Add to cart
17	YOKE, UPPER, M/C Part #: T2047005 Required per assembly: 1 Note: 447046 > See Tech News 118 ~~$239.39~~ $235.27 - + Add to cart
18	CAPSCREW, M10X35 Part #: T2047044 Required per assembly: 2 $9.92 - + Add to cart
19	RISER, TOP, YOKE Part #: T2042559 Required per assembly: 2 ~~$45.75~~ $44.95 - + Add to cart
20	BOLT, M10, 14AF Part #: T2047040 Required per assembly: 2 $10.11 - + Add to cart
21	CABLE, GUIDE, WIRE Part #: T2043492 Required per assembly: 1 $17.82 - + Add to cart
22	SCREW, BUT/HD, M8X1.25X12, SLV Part #: T3331625 Required per assembly: 2 Note: > 340428-F2; > 352597-F4 $2.29 - + Add to cart
22	SCREW, BUT/HD, M8X1.25X12, SLV Part #: T3331625 Required per assembly: 2 Note: 340429 > F2; 352598 > F4 $2.29 - + Add to cart
23	CLAMP, HANDLEBAR Part #: T2042558 Required per assembly: 1 Note: > 447045 See Tech News 118 ~~$59.83~~ $58.79 - + Add to cart
24	SCREW, CAP/HD, M8X1.25X25, BLK Part #: T3051097 Required per assembly: 4 $5.28 - + Add to cart
25	WASHER Part #: T2040061 Required per assembly: 1 $8.86 - + Add to cart
26	NUT Part #: T2040060 Required per assembly: 1 $24.37 - + Add to cart
27	PLUG, CHROME Part #: T3450200 Required per assembly: 4 Note: > 675897 $5.39 - + Add to cart
28	MIRROR, ASSEMBLY, BLACK Part #: T2300833 Required per assembly: 2 Note: 421965 > ~~$124.99~~ $122.83 - + Add to cart
28	MIRROR, ASSEMBLY, PACKED Part #: T2300781P Required per assembly: 2 Note: > 421964 ~~$124.99~~ $47.78 - + Add to cart
29	CABLE, CLUTCH Part #: T2040485 Required per assembly: 1 ~~$44.01~~ $43.24 - + Add to cart
30	TWIN, CLIP, BRAKE, HOSE Part #: T2040811 Required per assembly: 2 $3.42 - + Add to cart
31	CABLE, SPEEDOMETER Part #: T2040481 Required per assembly: 1 Note: > 447045 See Tech News 118 ~~$46.55~~ $45.74 - + Add to cart
32	SCREW., PHIL, CSK., M5, X, 20, SLV Part #: T3331017 Required per assembly: 1 Note: > 447045 See Tech News 118 $5.47 - + Add to cart
33	CABLE, THROTTLE, TWIN Part #: T2040569 Required per assembly: 1 Note: > 421437 ~~$46.55~~ $45.74 - + Add to cart
33	CABLE, THROTTLE, TWIN Part #: T2040569 Required per assembly: 1 Note: 421438 > ~~$46.55~~ $45.74 - + Add to cart
34	KNOCKBACK, COVER, MIRROR Part #: T2300595 Required per assembly: 2 $9.68 - + Add to cart
35	TOP, CAP, RISER Part #: T2040534 Required per assembly: 2 Note: 447046 > ~~$46.64~~ $45.83 - + Add to cart
