Bodywork - Side Panels replacement parts for Triumph Sprint RS 139277 >

OEM Parts Triumph Sprint RS 139277 > Bodywork - Side Panels

Bodywork - Side Panels Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SIDEPANEL.LH.PNTD, DEC, LAQD Part #: T2301899PG Required per assembly: 1 Note: 161318 > 186150 Not Available
1	SIDEPANEL, REAR, LH, P, D, L Part #: T2301899HA Required per assembly: 1 Note: 186151 > British Racing Green Not Available
1	SIDEPANEL, LH, PNTD, DEC&LAQ'D Part #: T2301923JD Required per assembly: 1 Note: > 186150 Caspian Blue Not Available
1	SIDEPANEL, LH, PNTD, DEC, &, LAQD Part #: T2301918PG Required per assembly: 1 Note: > 161317 Jet Black Not Available
1	SIDEPANEL, LH, PNTD, DEC, &, LAQD Part #: T2301918FD Required per assembly: 1 Note: > 161317 Acidic Yellow Not Available
2	SIDEPANEL, RH, PNTD, DEC, &, LAQD Part #: T2301920PG Required per assembly: 1 Note: > 161317 Jet Black Not Available
2	SIDEPANEL, RH, PNTD, DEC, &, LAQD Part #: T2301920FD Required per assembly: 1 Note: > 161317 Acidic Yellow Not Available
2	SIDEPANEL, RH, PNTD, DEC&LAQ'D Part #: T2301924JD Required per assembly: 1 Note: Caspian Blue > 186150 Not Available
2	SIDEPANEL, RH, PNTD, DEC, &, LAQ Part #: T2301898PG Required per assembly: 1 Note: 161318 > 186150 Not Available
2	SIDEPANEL, REAR, RH, P, D, L Part #: T2301898HA Required per assembly: 1 Note: 186151 > British Racing Green Not Available
3	ENDCAP, BLK Part #: T2301907PG Required per assembly: 1 Note: > 186150 Jet Black Not Available
3	ENDCAP, PNTD, &, LAQ'D Part #: T2301907JD Required per assembly: 1 Note: > 186150 Caspian Blue Not Available
3	END, CAP, PNT, LAQ, DKG Part #: T2301907HA Required per assembly: 1 Note: 186151 > British Racing Green Not Available
3	ENDCAP, PNTD, &, LAQ'D Part #: T2301907FD Required per assembly: 1 Note: > 161317 Acidic Yellow Not Available
4	SCREW, BUTTON, HD, M5, X, 16, S/S Part #: T3330696 Required per assembly: 4 $5.81 $5.28 - + Add to cart
5	BOLT, DOG, POINT, M8X45 Part #: T3200135 Required per assembly: 2 Note: M8 x 35mm Not Available
6	FLANGED, SLEEVE, M8 Part #: T3010280 Required per assembly: 2 $6.88 $6.25 - + Add to cart
7	GROMMET, DIA, 18, 0, X, 4.0, PANEL Part #: T3021250 Required per assembly: 2 $3.01 $2.74 - + Add to cart
8	SCREW, BUT/HD, M6X1.0X20, SLV Part #: T3330727 Required per assembly: 2 Note: M6 x 24mm $3.46 $3.15 - + Add to cart
9	WASHER PLASTIC Part #: 3550060T0301 Required per assembly: 2 Not Available
10	NUT, CAPTIVE, M, 4-5.5MM Part #: T3351052 Required per assembly: 4 $4.44 $4.04 - + Add to cart
11	GROMMET, SIDE, PANEL Part #: T3020029 Required per assembly: 2 $2.59 $2.35 - + Add to cart
12	SEAT WITH STRAP Part #: T2301764 Required per assembly: 1 Not Available
13	SEAT ASSEMBLY Part #: T2301760 Required per assembly: 1 Not Available
14	SEAT STRAP Part #: T2301765 Required per assembly: 1 Not Available
15	WASHER, 24, X, 7, X, 2 Part #: T2307374 Required per assembly: 2 $1.42 $1.29 - + Add to cart
16	SCREW, TX, PAN/HD, M6X1.0X16, SLV Part #: T3330334 Required per assembly: 2 $2.68 $2.43 - + Add to cart
19	LABEL, DAILY, CHECKS, DIAGRAMATIC Part #: T3900152 Required per assembly: 1 $5.81 $5.28 - + Add to cart
20	MACHINED, BOSS, SEAT, COVER Part #: T2300028 Required per assembly: 2 Note: M8 Not Available
21	NUT, FLGD, M8X1.25, SLV Part #: T3350301 Required per assembly: 2 $0.82 $0.75 - + Add to cart
22	SEAT COWL Part #: A2301727PG Required per assembly: 1 Note: > 186150 Jet Black Not Available
22	SEAT, COWL, PNTD, &, LAQ'D Part #: T2301727JD Required per assembly: 1 Note: > 186150 Caspian Blue Not Available
22	SEAT, COWL, PNT, LAQ, GREEN Part #: T2301727HA Required per assembly: 1 Note: 186151 > British Racing Green Not Available
22	SEAT, COWL, PNTD, &, LAQD Part #: T2301727FD Required per assembly: 1 Note: > 161317 Acidic Yellow Not Available
23	BOLT, BUT/HD, M5X0.8X17, SHLD, SLV Part #: T3331063 Required per assembly: 2 $2.20 $2.00 - + Add to cart
24	WASHER, NYLON, 12.45, X, 7.14X0.76 Part #: T3550094 Required per assembly: 2 $1.12 $1.02 - + Add to cart

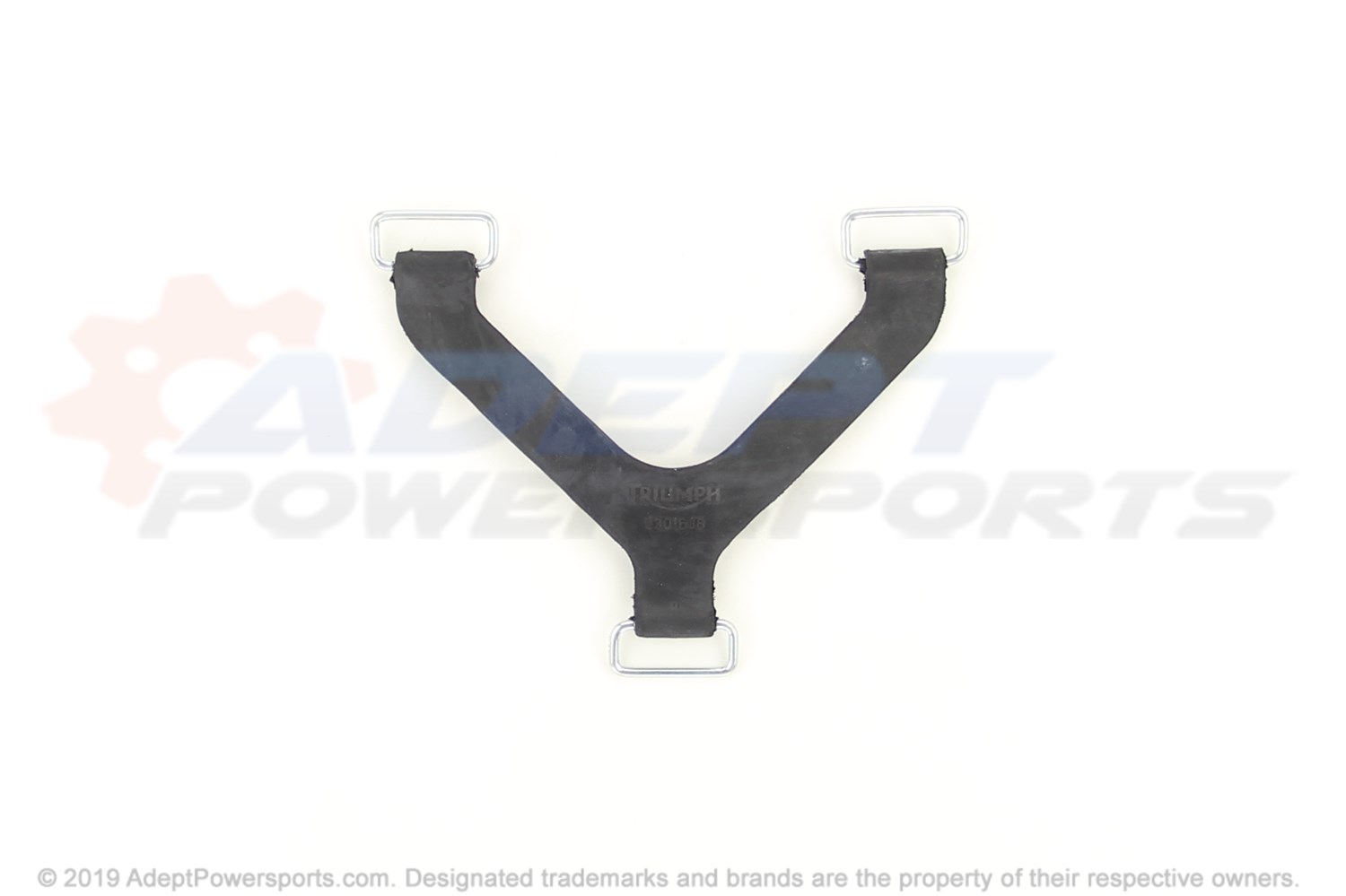

25	STRAP, TOOLKIT Part #: T2301636 Required per assembly: 1 $10.00 $9.83 - + Add to cart
