OEM Parts Triumph Sprint RS 139277 > Front Brake Master Cylinder

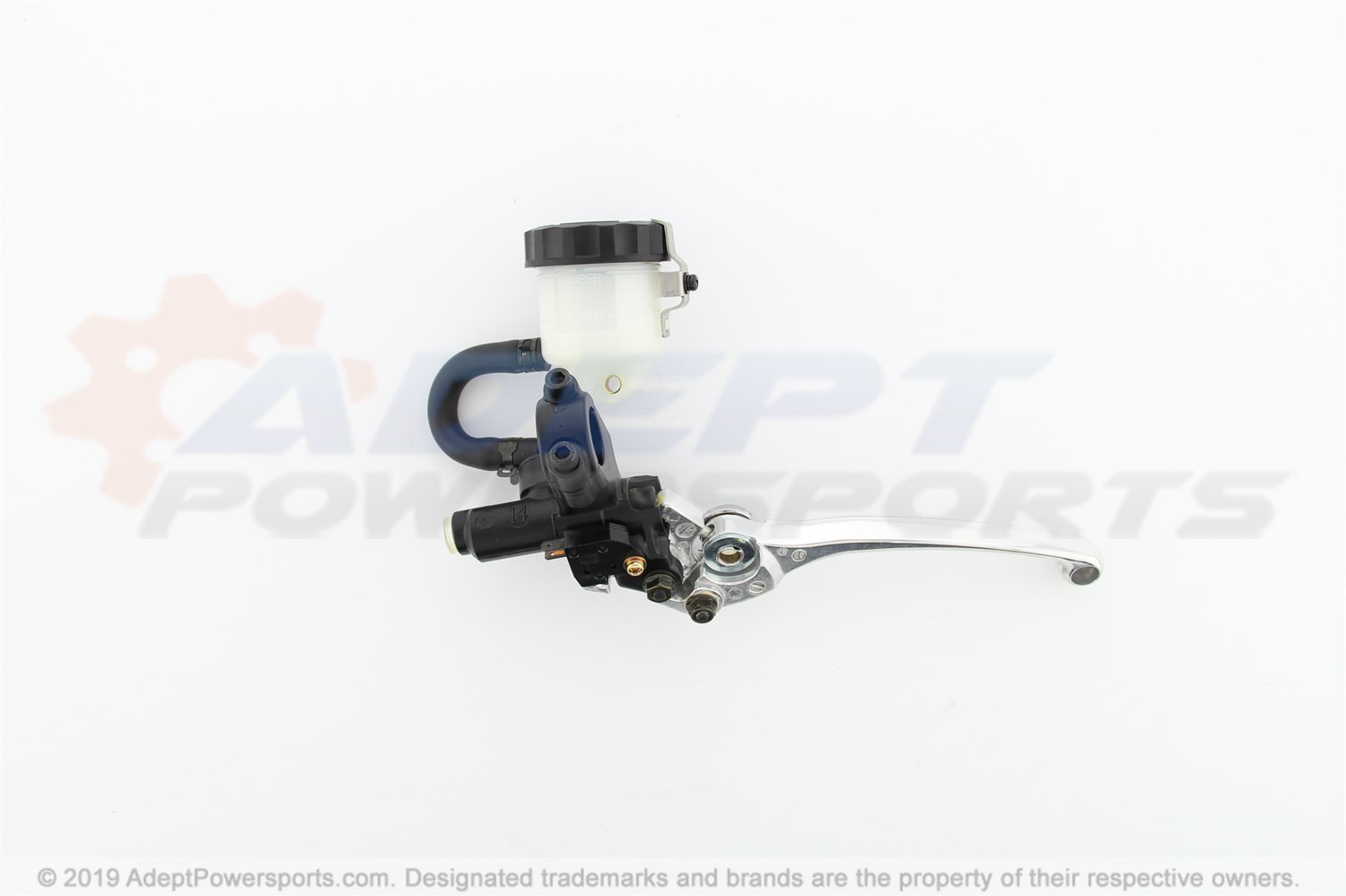

Front Brake Master Cylinder Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRONT BRAKE LEVER ASSEMBLY Part #: T2025470 Required per assembly: 1 Not Available
2	M/CYL, RESERVOIR, ASSEMBLY, FRONT Part #: T2026221 Required per assembly: 1 ~~$116.17~~ $114.17 - + Add to cart
3	PISTON, SET, M'CYLINDER, 14.0 Part #: T2020003 Required per assembly: 1 ~~$52.81~~ $51.89 - + Add to cart
4	MC HOLDER SET Part #: T2025403 Required per assembly: 1 ~~$12.51~~ $12.29 - + Add to cart
5	LEVER, ASSEMBLY, ADJUSTABLE Part #: T2025441 Required per assembly: 1 ~~$81.41~~ $80.00 - + Add to cart
6	LEVER, BOLT, FRONT, M/CYL Part #: T2020158 Required per assembly: 1 ~~$12.56~~ $12.34 - + Add to cart
7	SWITCH SET Part #: T2021217 Required per assembly: 1 ~~$22.62~~ $22.23 - + Add to cart
8	BOLT, HHF, LGHTD, M6, X, 16, SLV Part #: T3205063 Required per assembly: 1 ~~$3.67~~ $3.34 - + Add to cart
9	HOSE, BRAIDED, FRT, PTFE, LINED Part #: T2020759 Required per assembly: 1 ~~$73.93~~ $72.65 - + Add to cart
10	HOSE, BRAIDED, BRAKE, BRIDGE Part #: T2020730 Required per assembly: 1 ~~$66.01~~ $64.86 - + Add to cart
11	BOLT, BANJO, M10X1.25X21 Part #: T3250125 Required per assembly: 2 ~~$7.38~~ $6.71 - + Add to cart
12	BOLT, BANJO, M10X1.25X31 Part #: T3250019 Required per assembly: 1 ~~$6.61~~ $6.01 - + Add to cart
13	WASHER, 15.2, X, 10, X, 1.0, PLATED Part #: T3550229 Required per assembly: 7 ~~$1.12~~ $1.02 - + Add to cart
14	CLIP, BRAKE, HOSE Part #: T3700233 Required per assembly: 2 ~~$6.19~~ $5.63 - + Add to cart
15	TWIN, CLIP, BRAKE, HOSE Part #: T2040811 Required per assembly: 1 ~~$2.75~~ $2.50 - + Add to cart
16	CLIP, CABLE, RETAINING Part #: T3700025 Required per assembly: 1 ~~$2.20~~ $2.00 - + Add to cart
17	CLIP CABLE DOUBLE ID 6MM Part #: T3700061 Required per assembly: 2 ~~$5.58~~ $5.07 - + Add to cart
