Footrests & Mountings replacement parts for Triumph Thruxton 900 EFI

OEM Parts Triumph Thruxton 900 EFI Footrests & Mountings

Footrests & Mountings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

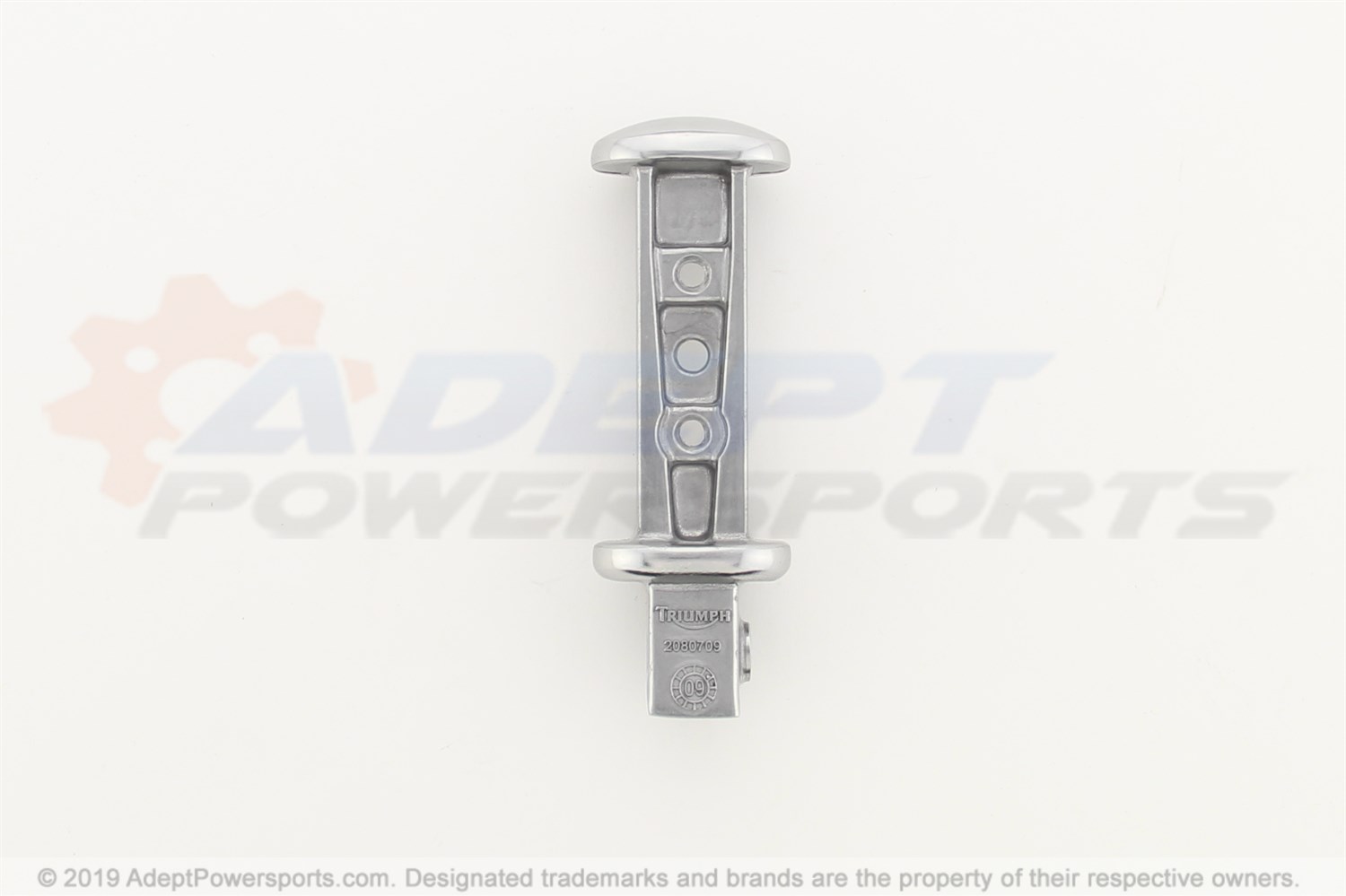

1	FOOTREST, ASSEMBLY, LHR Part #: T2080737 Required per assembly: 1 $90.57 $89.01 - + Add to cart
2	FOOTREST, ASSEMBLY, RHR Part #: T2080738 Required per assembly: 1 $90.57 $89.01 - + Add to cart
3	CLEVIS, FOOTREST Part #: T2080708 Required per assembly: 2 $14.43 $14.17 - + Add to cart
4	RUBBER, FOOTREST Part #: T2080714 Required per assembly: 4 $9.92 $9.74 - + Add to cart
5	PIN, CLEVIS, FOOTREST Part #: T2081414 Required per assembly: 2 $6.68 $6.08 - + Add to cart
6	E-RING CIRCLIP 8.0 Part #: T3500062 Required per assembly: 2 $5.02 $4.56 - + Add to cart
7	SPRING, DETENT, 6.2X13.5 Part #: T2081670 Required per assembly: 2 $6.68 $6.08 - + Add to cart
8	BALL, DETENT, DIA, 6.3 Part #: T2081671 Required per assembly: 2 $2.05 $1.86 - + Add to cart
9	SCREW, TORX, PAN, HD, M5X0.8X16 Part #: T3330173 Required per assembly: 8 $5.02 $4.56 - + Add to cart
10	FOOTREST, ASSEMBLY, RHF Part #: T2080704 Required per assembly: 1 $86.97 $85.47 - + Add to cart
11	FOOTREST, ASSEMBLY, LHF Part #: T2080703 Required per assembly: 1 $86.97 $85.47 - + Add to cart
12	BANK ANGLE PEG Part #: T2080680 Required per assembly: 2 $9.56 $9.39 - + Add to cart
13	FOOTREST, CASTING, LH Part #: T2080813 Required per assembly: 2 $83.73 $82.28 - + Add to cart
14	FOOTREST, CASTING, RH Part #: T2080814 Required per assembly: 2 $83.73 $82.28 - + Add to cart
15	PIN, PIVOT, FOOTREST Part #: T2080546 Required per assembly: 2 $6.68 $6.08 - + Add to cart
16	CIRCLIP, EXT, 8X0.89 Part #: T3500207 Required per assembly: 2 $2.90 $2.64 - + Add to cart
17	RETURN, SPRING, FOOTREST Part #: T2080819 Required per assembly: 2 $6.42 $5.84 - + Add to cart
18	FOOTREST CASTING Part #: T2080709 Required per assembly: 2 $70.90 $69.67 - + Add to cart
