Triumph Thruxton 900 EFI - Various / Exhaust System Assy, Arrow 2:2

Various / Exhaust System Assy, Arrow 2:2 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ARROW 2:2 EXHAUST SYSTEM

Part #: A9600469 Required per assembly: 1 Note: Not For Road Use - N/A to TH
Not Available
2

EXHAUST PIPE SEALING RING

Part #: T2200229 Required per assembly: 2
$12.65
$12.43
-
+
Add to cart
3

WASHER, M18X21.9, OD, COPPER

Part #: T3550905 Required per assembly: 2
$2.52
$2.29
-
+
Add to cart
4

MAIN, JET, 112

Part #: A9600361 Required per assembly: 2
Not Available
5

HDR, PIPE, RH, ARROW, 2:2(5210545)

Part #: A9600337 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
6

HDR, PIPE, LH, ARROW, 2:2(5210544)

Part #: A9600338 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
7

SILENCER, RH, ARROW, 2:2

Part #: A9600470 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
8

SILENCER, LH, ARROW, 2:2(5870046)

Part #: A9600340 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
9

BRACKET, STOP, S.STAND, (5030216)

Part #: A9750554 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
10

SCREW, C/HD, M10X1.5X30(3896198)

Part #: A9910855 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
11

LOCKNUT, M10X1.5, (3048035)

Part #: A9910856 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
12

SPACER, PLATE, 2MM, S/S, (5011160)

Part #: A9600344 Required per assembly: 2 Note: Not structured in kit, spares condition only
Not Available
13

STOP, SHORT, RUBBER, (3240001)

Part #: A9600345 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
14

STOP, LONG, RUBBER, (3240041)

Part #: A9600346 Required per assembly: 1 Note: Not structured in kit, spares condition only
Not Available
15

B/PLUG, EXHAUST, M12, (5175003)

Part #: A9601052 Required per assembly: 2 Note: Not structured in kit, spares condition only
Not Available
16

DB, KILLER, ARROW, 2:2, (5930086)

Part #: A9608136 Required per assembly: 2 Note: Not structured in kit, spares condition only
Not Available
17

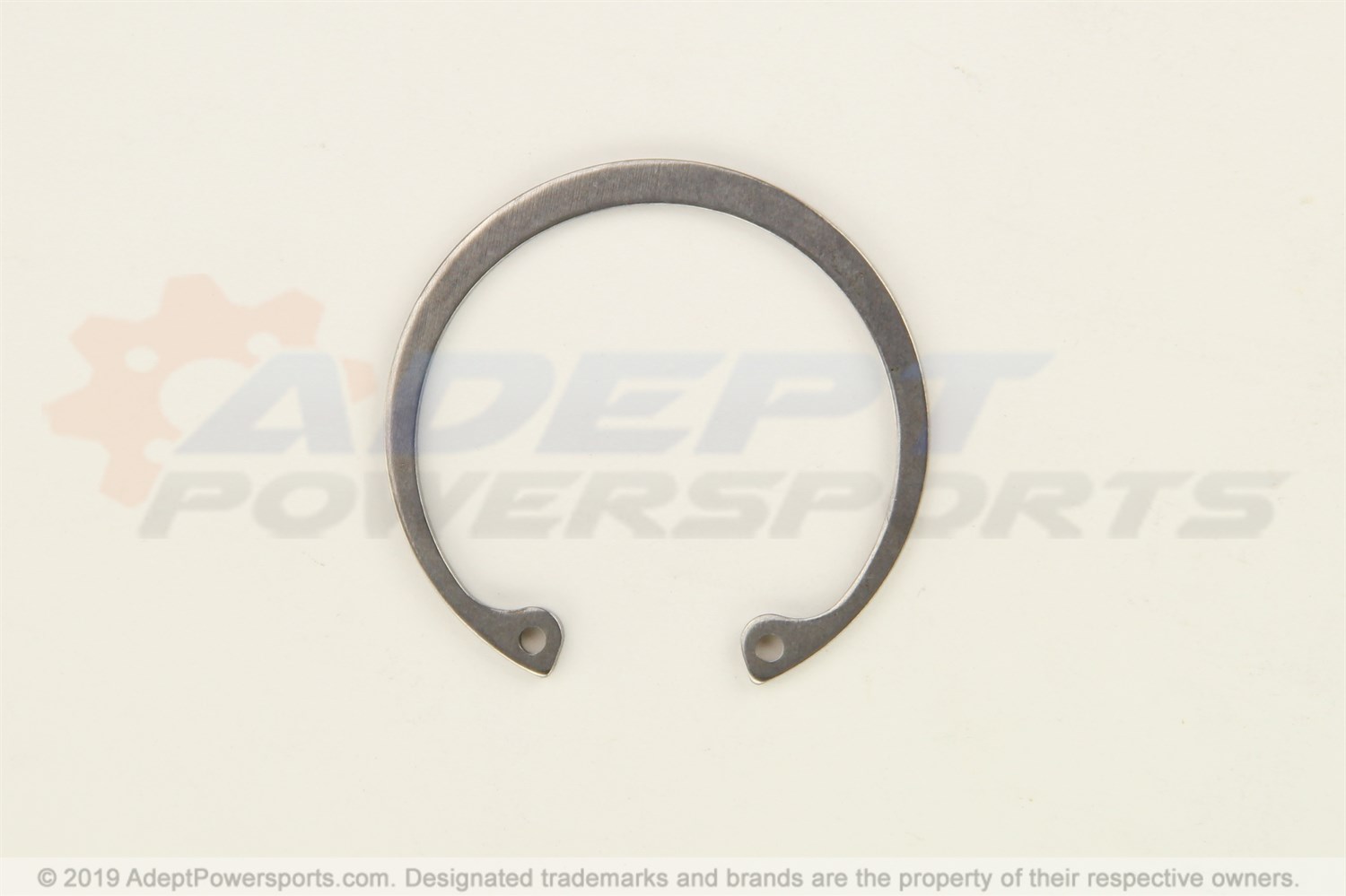

CIRCLIP, INTERNAL, DIA, 50.0

Part #: A9910862 Required per assembly: 2 Note: Not structured in kit, spares condition only
Not Available
