Starter Drive Gears replacement parts for Triumph Tiger 955i 198875 >

OEM Parts Triumph Tiger 955i 198875 > Starter Drive Gears

Starter Drive Gears Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	GEAR, IDLER, 14/71T Part #: T1221104 Required per assembly: 1 ~~$200.66~~ $197.20 - + Add to cart
2	SHAFT, OD, 12, L44.15 Part #: T1221107 Required per assembly: 1 ~~$7.00~~ $6.36 - + Add to cart
3	BEARING, NEEDLE, ROLLER Part #: T3800087 Required per assembly: 1 Not Available
4	WASHER, 12.5X22.75X2 Part #: T3550617 Required per assembly: 2 ~~$4.22~~ $3.83 - + Add to cart
5	GEAR, IDLER, 16T/18T Part #: T1221618 Required per assembly: 1 ~~$117.94~~ $115.91 - + Add to cart
6	SHAFT, OD14, ID, 8, L52.7 Part #: T1221106 Required per assembly: 1 ~~$7.59~~ $6.90 - + Add to cart
7	WASHER, WAVE Part #: T3550380 Required per assembly: 1 ~~$3.95~~ $3.59 - + Add to cart
8	WASHER, WAVE, 19X13X2 Part #: T3550381 Required per assembly: 1 ~~$2.50~~ $2.27 - + Add to cart
9	KIT, SPRAG, &, GEAR Part #: T1221112 Required per assembly: 1 Note: (Description) > Eng No 246571 - Kit Contains Sprag Clutch Assy & Hub & Gear, 51T ~~$598.53~~ $548.23 - + Add to cart
9	HUB, AND, GEAR, 51T Part #: T1221110 Required per assembly: 1 Note: Eng No 246572 > ~~$267.57~~ $262.97 - + Add to cart

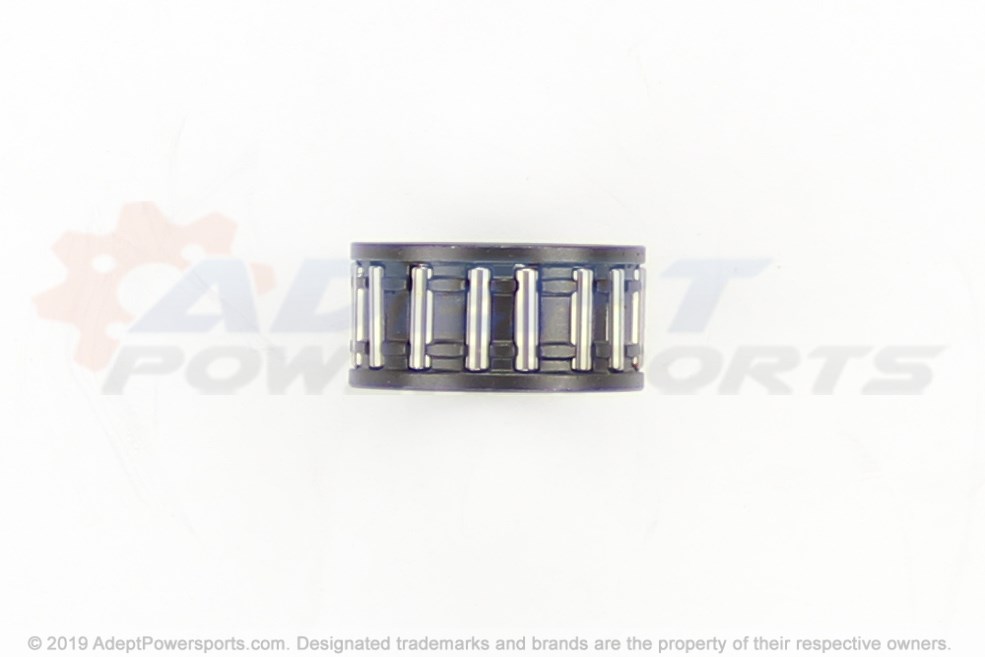

10	BEARING, NEEDLE, K28X34X17 Part #: T3800086 Required per assembly: 1 ~~$31.84~~ $31.28 - + Add to cart
11	BOLT, CAP/HD, M10X1.25X30, RAW Part #: T3330841 Required per assembly: 1 ~~$7.02~~ $6.38 - + Add to cart
12	WASHER, 10.75, X, 30, X, 4 Part #: T3550763 Required per assembly: 1 ~~$3.95~~ $3.59 - + Add to cart
13	WASHER, 42X20.45X2 Part #: T3550367 Required per assembly: 1 ~~$6.19~~ $5.63 - + Add to cart

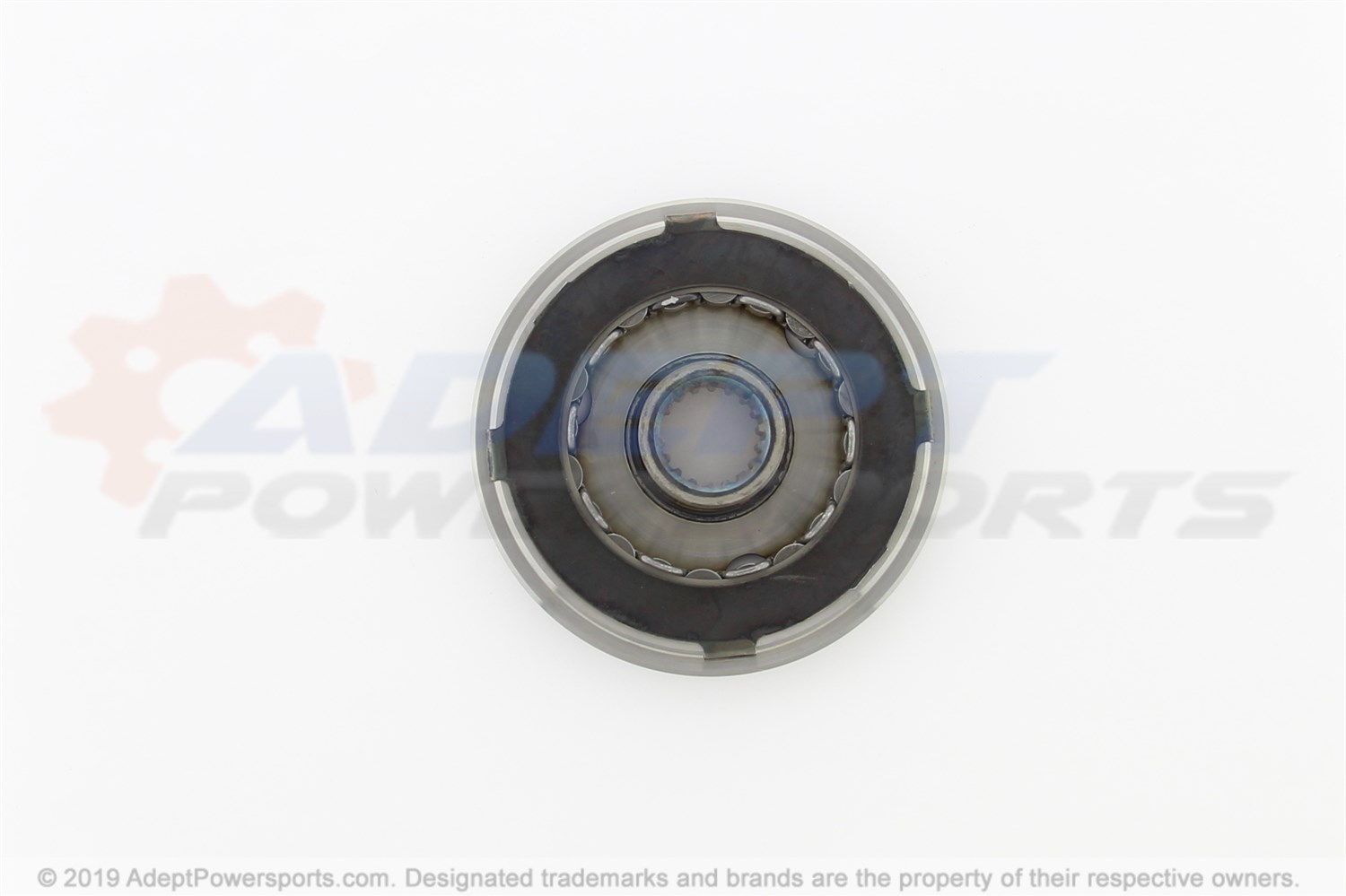

14	SPRAG, CLUTCH, ASSEMBLY (PLEASE CONFIRM YOUR ENGINE / SERIAL NUMBER) Part #: T1221111 Required per assembly: 1 Note: Eng No 246572 > ~~$329.18~~ $323.51 - + Add to cart
14	KIT, SPRAG, &, GEAR Part #: T1221112 Required per assembly: 1 Note: (Description) > Eng No 246571 - Kit Contains Sprag Clutch Assy & Hub & Gear, 51T ~~$598.53~~ $548.23 - + Add to cart
