Lh Side Fairings replacement parts for Triumph Trophy 1215

OEM Parts Triumph Trophy 1215 Lh Side Fairings

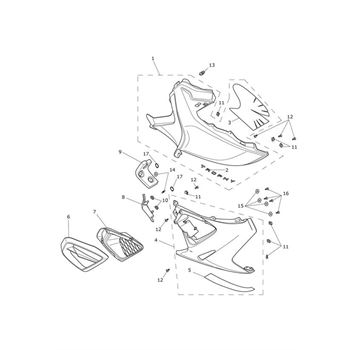

LH Side Fairings Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	KIT, SIDE, PANEL, UPPER, LH Part #: T2302667MM Required per assembly: 1 Note: Lunar Silver > 657552 ~~$637.00~~ $626.04 - + Add to cart
1	KIT, SIDE, PANEL, UPPER, LH Part #: T2302667JI Required per assembly: 1 Note: Pacific Blue ~~$637.00~~ $626.04 - + Add to cart
1	KIT, SIDE, PANEL, UPPER, LH Part #: T2302667PR Required per assembly: 1 Note: Phantom Black - 657553 > ~~$637.00~~ $626.04 - + Add to cart
2	BADGE, FAIRING, TROPHY Part #: T2304768 Required per assembly: 1 ~~$55.43~~ $54.46 - + Add to cart
3	PAD, HEATSHIELD, UPPER, LH Part #: T2304764 Required per assembly: 1 ~~$21.13~~ $20.76 - + Add to cart
4	KIT, SIDE, PANEL, LOWER, LH Part #: T2302853PR Required per assembly: 1 Note: Phantom Black - 657553 > ~~$418.05~~ $410.86 - + Add to cart
4	KIT, SIDE, PANEL, LOWER, LH Part #: T2302853JI Required per assembly: 1 Note: Pacific Blue ~~$418.05~~ $410.86 - + Add to cart
4	KIT, SIDE, PANEL, LOWER, LH Part #: T2302853MM Required per assembly: 1 Note: Lunar Silver > 657552 ~~$350.30~~ $344.27 - + Add to cart
5	PAD, HEATSHIELD, LOWER, LH Part #: T2304763 Required per assembly: 1 ~~$19.97~~ $19.63 - + Add to cart
6	KIT, FINISHER, LH Part #: T2303626 Required per assembly: 1 Note: > 583432 ~~$116.17~~ $114.17 - + Add to cart
6	COOLING, DUCT, FINISHER, LH Part #: T2302876LS Required per assembly: 1 Note: Graphite - 583433 > ~~$119.44~~ $117.38 - + Add to cart
7	GRILLE, RADIATOR, DUCT, LH Part #: T2308521 Required per assembly: 1 Note: 583433 > ~~$154.92~~ $152.24 - + Add to cart
7	KIT, GRILLE, LH Part #: T2303195 Required per assembly: 1 Note: > 583432 ~~$165.48~~ $162.63 - + Add to cart
8	ENGINE, INFILL, LH Part #: T2072720 Required per assembly: 1 ~~$22.44~~ $22.04 - + Add to cart
9	PAD, FOAM, LH, UPPER Part #: T2308563 Required per assembly: 1 ~~$11.88~~ $11.67 - + Add to cart
10	GROMMET, SIDE, PANEL Part #: T3020029 Required per assembly: 2 ~~$2.68~~ $2.43 - + Add to cart
11	NUT, CAPTIVE, M, 4-5.5MM Part #: T3351052 Required per assembly: 7 ~~$4.58~~ $4.17 - + Add to cart
12	SCREW, BUT/HD, M5X0.8X16, SLV Part #: T3330941 Required per assembly: 7 ~~$7.09~~ $6.44 - + Add to cart
13	CAPTIVE, BOSS, M5 Part #: T3351111 Required per assembly: 1 ~~$7.30~~ $6.63 - + Add to cart
14	WASHER, RUBBER, 8.4, X, 24.0, X, 2.0 Part #: T3552553 Required per assembly: 2 ~~$2.10~~ $1.91 - + Add to cart
15	WASHER M5X15X1.6 Part #: T3551178 Required per assembly: 4 Note: 583433 > ~~$1.01~~ $0.92 - + Add to cart
16	SCREW, BUT/HD, M5X0.8X16, SLV Part #: T3330941 Required per assembly: 4 Note: > 583432 ~~$7.09~~ $6.44 - + Add to cart
16	SCREW, HHF, 50X16, SLV Part #: T3331414 Required per assembly: 4 Note: 583433 > ~~$1.59~~ $1.45 - + Add to cart
17	NUT, CAPTIVE, M5 Part #: T3350129 Required per assembly: 1 ~~$3.57~~ $3.24 - + Add to cart
18	RIVET, PLASTIC, SCREW, TYPE Part #: T3701170 Required per assembly: 2 ~~$1.81~~ $1.65 - + Add to cart
19	CIRCLIP, EXT, 8X1 Part #: T3500210 Required per assembly: 2 ~~$2.26~~ $2.05 - + Add to cart
