Rear Master Cylinder replacement parts for Triumph Trophy 1215

OEM Parts Triumph Trophy 1215 Rear Master Cylinder

Rear Master Cylinder Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	REAR, MASTER, CYLINDER, ASSEMBLY, 15.87MM Part #: T2028014 Required per assembly: 1 $278.60 $273.81 - + Add to cart
2	RESERVOIR, BODY, M/CYL, REAR Part #: T2022115 Required per assembly: 1 $97.40 $95.72 - + Add to cart
3	RESERVOIR, SEAL, M/CYL, REAR Part #: T2022117 Required per assembly: 1 $16.49 $16.19 - + Add to cart
4	RESERVOIR, CAP, REAR, M/CYL Part #: T2022126 Required per assembly: 1 $35.62 $35.00 - + Add to cart
5	RESERVOIR, SCREW, M/CYL, REAR Part #: T2022118 Required per assembly: 2 $1.82 $1.65 - + Add to cart
6	HOSE CLAMP Part #: T2023188 Required per assembly: 2 $3.57 $3.24 - + Add to cart
7	HOSE, RESERVOIR Part #: T2028016 Required per assembly: 1 $34.67 $34.07 - + Add to cart
8	CONNECTOR SET Part #: T2023189 Required per assembly: 1 $24.07 $23.65 - + Add to cart
9	PISTON, SET, M/CYL, 15.87MM Part #: T2028017 Required per assembly: 1 $61.50 $60.43 - + Add to cart
10	CIRCLIP, M'CYLINDER, REAR Part #: T2020472 Required per assembly: 1 $2.78 $2.53 - + Add to cart
11	ROD ASSEMBLY Part #: T2024099 Required per assembly: 1 $47.01 $46.19 - + Add to cart
12	SCREW, CAP/HD, M6X1.0X16, SLV, ENC Part #: T3050331 Required per assembly: 1 $2.24 $2.04 - + Add to cart
13	WASHER, 6.4, X, 14, X, 1.6 Part #: T3555004 Required per assembly: 1 $1.42 $1.29 - + Add to cart
14	CLIP, CABLE, 14.3, X, 107 Part #: T3700108 Required per assembly: 2 $3.31 $3.01 - + Add to cart
15	BRACKET, REAR, M/CYL Part #: T2028015 Required per assembly: 1 $51.27 $50.38 - + Add to cart
16	SCREW, CAP/HD, M8X1.25X40, SLV Part #: T3051032 Required per assembly: 2 $1.54 $1.40 - + Add to cart
17	SCRW, CAP/HD, M8X1.25X25, SLV, ENC Part #: T3050410 Required per assembly: 2 $6.53 $5.93 - + Add to cart
18	BRAKE PEDAL ASSEMBLY Part #: T2028019 Required per assembly: 1 $128.17 $125.96 - + Add to cart
19	BOLT, SHLD, M8, X, 1.25, SLV, ENC Part #: T3331520 Required per assembly: 1 $9.56 $9.39 - + Add to cart
20	BOLT RHHF DOMED S/S M6 X 16 Part #: T3205064 Required per assembly: 1 $4.09 $3.72 - + Add to cart
21	PIN, CLEVIS, 8, X, 13.7 Part #: T3000301 Required per assembly: 1 $4.37 $3.98 - + Add to cart
22	CLIP, 8MM, CLEVIS, PIN Part #: T3000302 Required per assembly: 1 $6.19 $5.63 - + Add to cart
23	MOULDING, BRAKE, SWITCH, BRACKET Part #: T2028282 Required per assembly: 1 $54.72 $53.77 - + Add to cart
24	SWITCH, BRAKE, DUAL Part #: T2020906 Required per assembly: 1 $39.39 $38.71 - + Add to cart

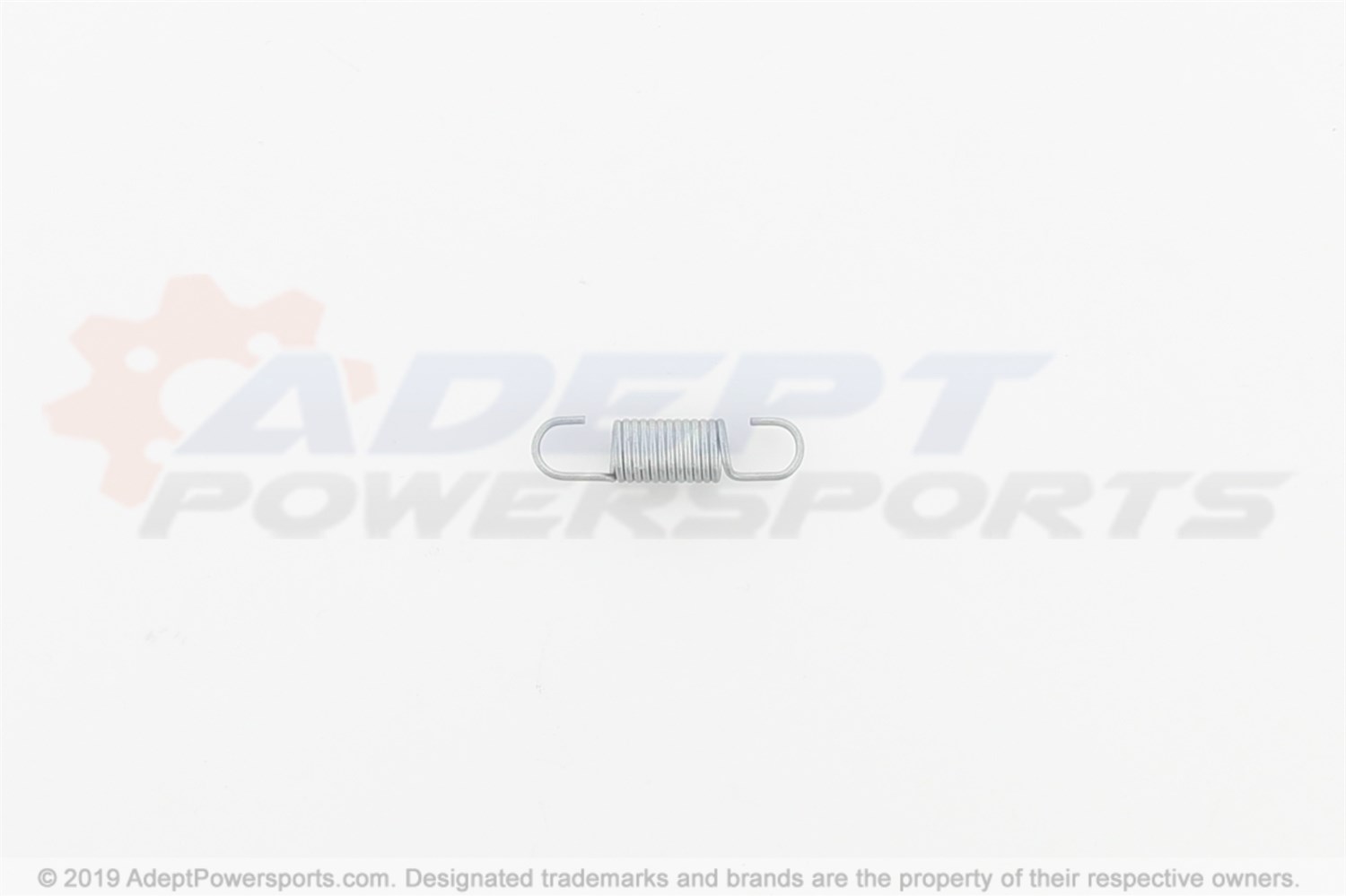

25	SPRING, BRAKE, LEVER, RETURN Part #: T2020897 Required per assembly: 2 $2.29 $2.08 - + Add to cart
