Carburetor-Piston/Nozzle Needle replacement parts for 1982-1984 BMW R80RT (2477)

OEM Parts Bmw 1982-1984 Bmw R80RT (2477) Carburetor-Piston/Nozzle Needle

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	CSK.FILLISTER HEAD SCREW Part #: 13111337361 Required per assembly: 8 Note: FG 01/80* Currently Not Available
04	NOZZLE NEEDLE Part #: 13111255840 Required per assembly: 2 Currently Not Available
04	NOZZLE NEEDLE (FROM 05/83) Part #: 13111337692 Required per assembly: 2 Currently Not Available
05	GASKET Part #: 13111256353 Required per assembly: 2 Currently Not Available
06	CHOKE BODY LEFT (FROM 11/79) Part #: 13111337563 Required per assembly: 1 Currently Not Available
06	CHOKE BODY RIGHT (FROM 11/79) Part #: 13111337564 Required per assembly: 1 Currently Not Available
08	WAVE WASHER Part #: 13111254759 Required per assembly: 2 Currently Not Available
09	NUT Part #: 13111254760 Required per assembly: 2 Currently Not Available
10	CSK.FILLISTER HEAD SCREW Part #: 13111337367 Required per assembly: 8 Note: FG R100/7(USA) 6 170415 / R100S(USA) 61 65102 / R100RS(USA) 6185421 / R100RT(USA ) 6196044* Currently Not Available
11	GASKET RING Part #: 13111257819 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
13	PISTON (TO 09/80) Part #: 13111337552 Required per assembly: 2 Currently Not Available
13	PISTON Part #: 13111338248 Required per assembly: 2 Currently Not Available
14	DIAPHRAGM Part #: 13111254774 Required per assembly: 2 Currently Not Available
15	SUPPORTING RING Part #: 13111337358 Required per assembly: 2 Currently Not Available
16	SPRING WASHER Part #: 13111335306 Required per assembly: 8 Currently Not Available
17	FILLISTER-HEAD SCREW Part #: 13111337359 Required per assembly: 8 Currently Not Available
18	COVER Part #: 13111337360 Required per assembly: 2 Currently Not Available
19	LEVER Part #: 13111337369 Required per assembly: 2 Currently Not Available
20	LEVER Part #: 13111337368 Required per assembly: 2 Currently Not Available

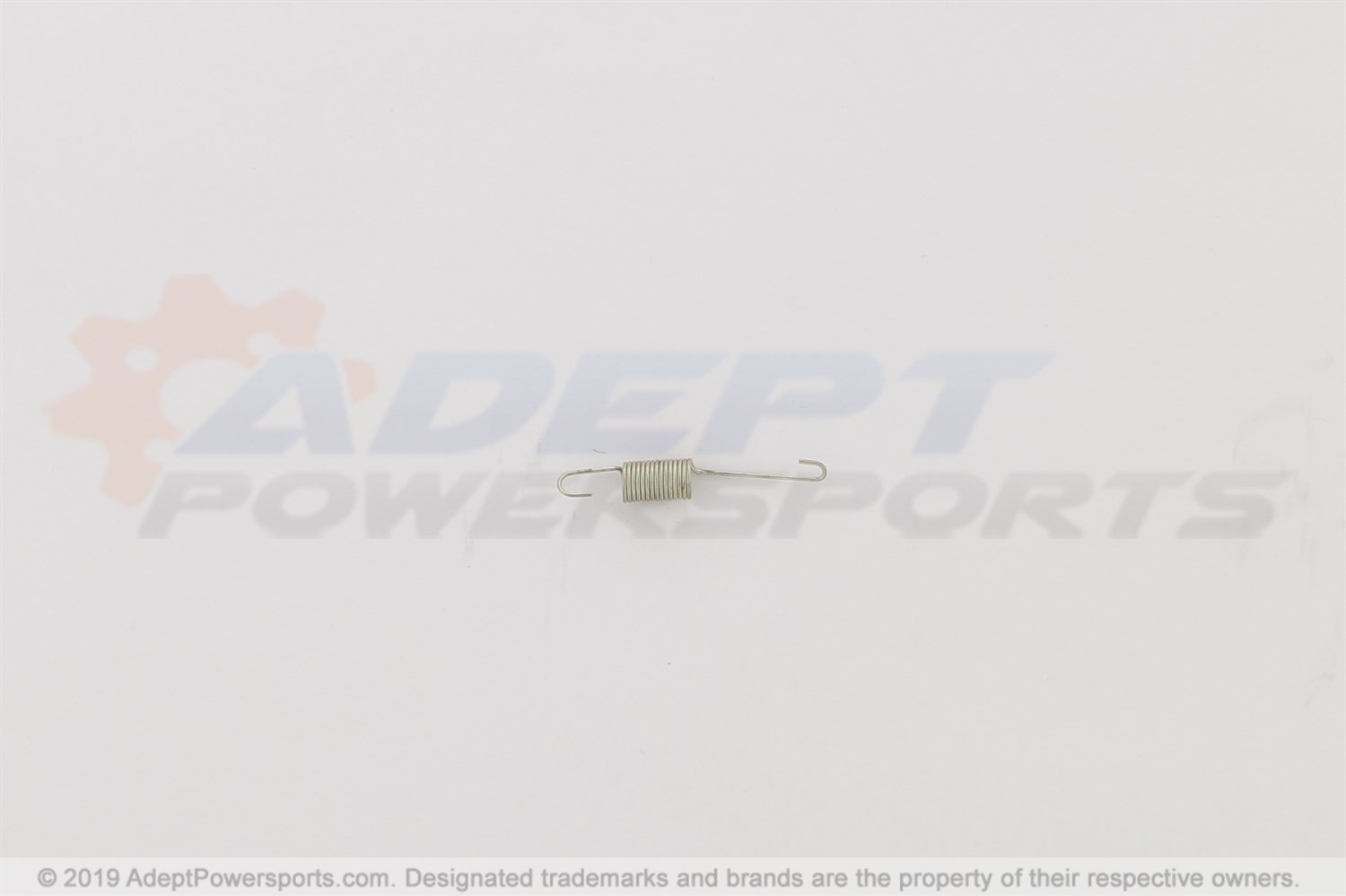

21	TENSION SPRING Part #: 13111337370 Required per assembly: 2 Currently Not Available
23	HOUSING Part #: 13111254754 Required per assembly: 2 Currently Not Available
24	SPRING Part #: 13111335324 Required per assembly: 2 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available
