Rear Wheel Fork replacement parts for 1985-1987 BMW R65 (2472)

OEM Parts Bmw 1985-1987 Bmw R65 (2472) Rear Wheel Fork

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	REAR WHEEL FORK Part #: 33171452094 Required per assembly: 1 Currently Not Available
02	TAPERED ROLLER BEARING - 40X17X17 Part #: 33171241546 Required per assembly: 2 Currently Not Available
03	PIVOT PIN - L=42,5MM Part #: 33171236955 Required per assembly: 2 Currently Not Available
04	HEX NUT Part #: 33533054174 Required per assembly: 2 Currently Not Available

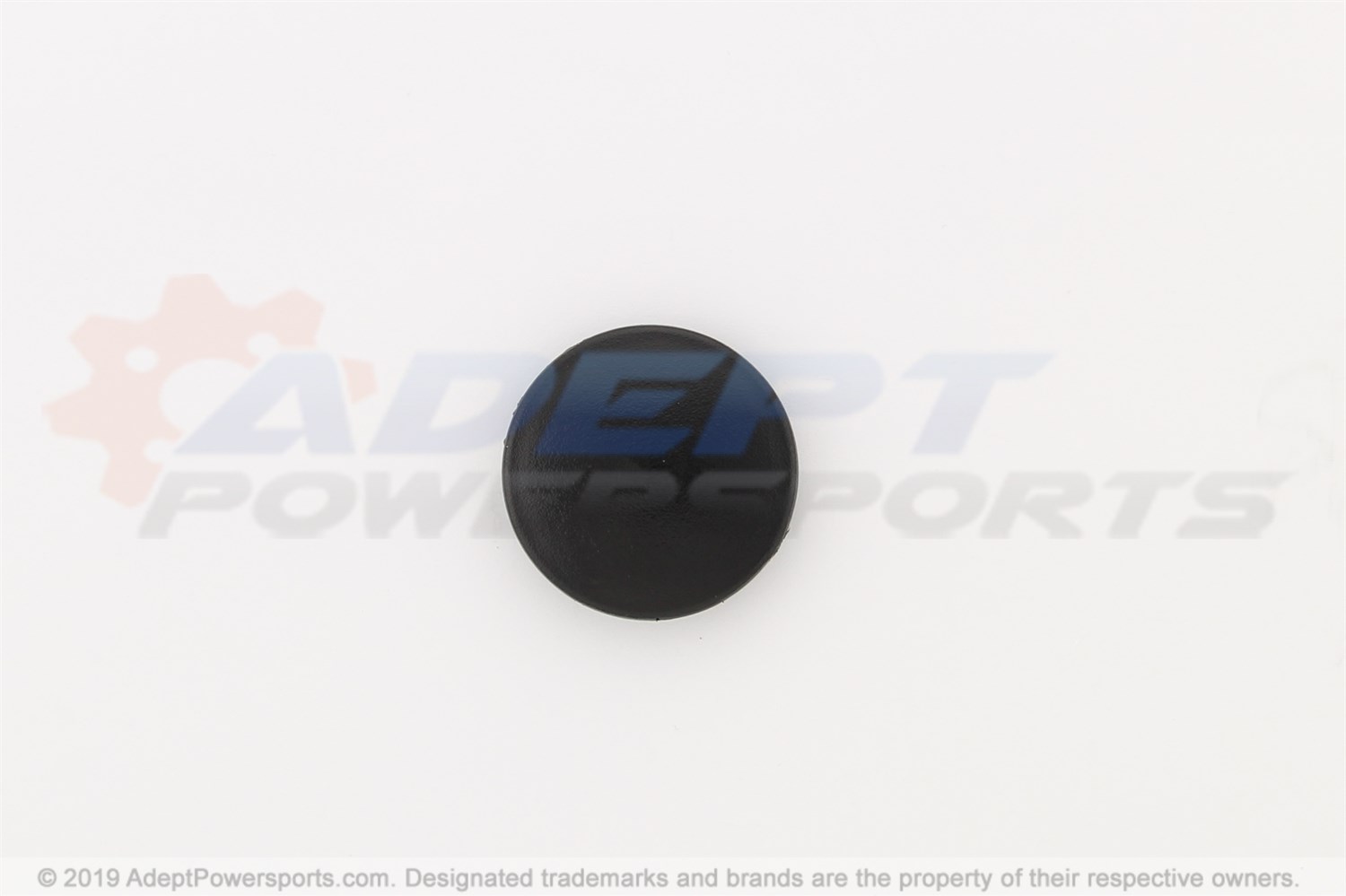

05	CAP Part #: 33171230296 Required per assembly: 2 Currently Not Available
06	NUT Part #: 33171237789 Required per assembly: 4 Note: FG R50/5 2 906 305 / R60/5 2 947 967 / R75/5 2 997 987* Currently Not Available
07	RUBBER COVER Part #: 33171230304 Required per assembly: 1 Currently Not Available
08	TENSION STRAP - D=83MM Part #: 33171458346 Required per assembly: 2 Currently Not Available
