Side Stand replacement parts for 1985-1987 BMW R65 (2472)

OEM Parts Bmw 1985-1987 Bmw R65 (2472) Side Stand

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

01	SIDE STAND Part #: 46531454673 Required per assembly: 1 Currently Not Available
02	CAP Part #: 46521236522 Required per assembly: 1 Currently Not Available
03	BUSH Part #: 46531452359 Required per assembly: 1 Currently Not Available
04	SPRING RETAINER Part #: 46532310721 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
05	TENSION SPRING Part #: 46532310739 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
06	SHACKLE - LEFT Part #: 46711452115 Required per assembly: 1 Currently Not Available
07	HEX NUT - M12X1,5 Part #: 07119922940 Required per assembly: 2 Note: NOT FOR VEHICLES WITH AUTHORITIES DENMARK 35 KW (CODE: V005A) AND OFFICIAL VEHICLE, DENMARK (CODE: X101A) AND AUTHORITIES FRANCE R65GS (CODE: X105A) Currently Not Available
08	WASHER - 13 Part #: 07119936442 Required per assembly: 2 Currently Not Available

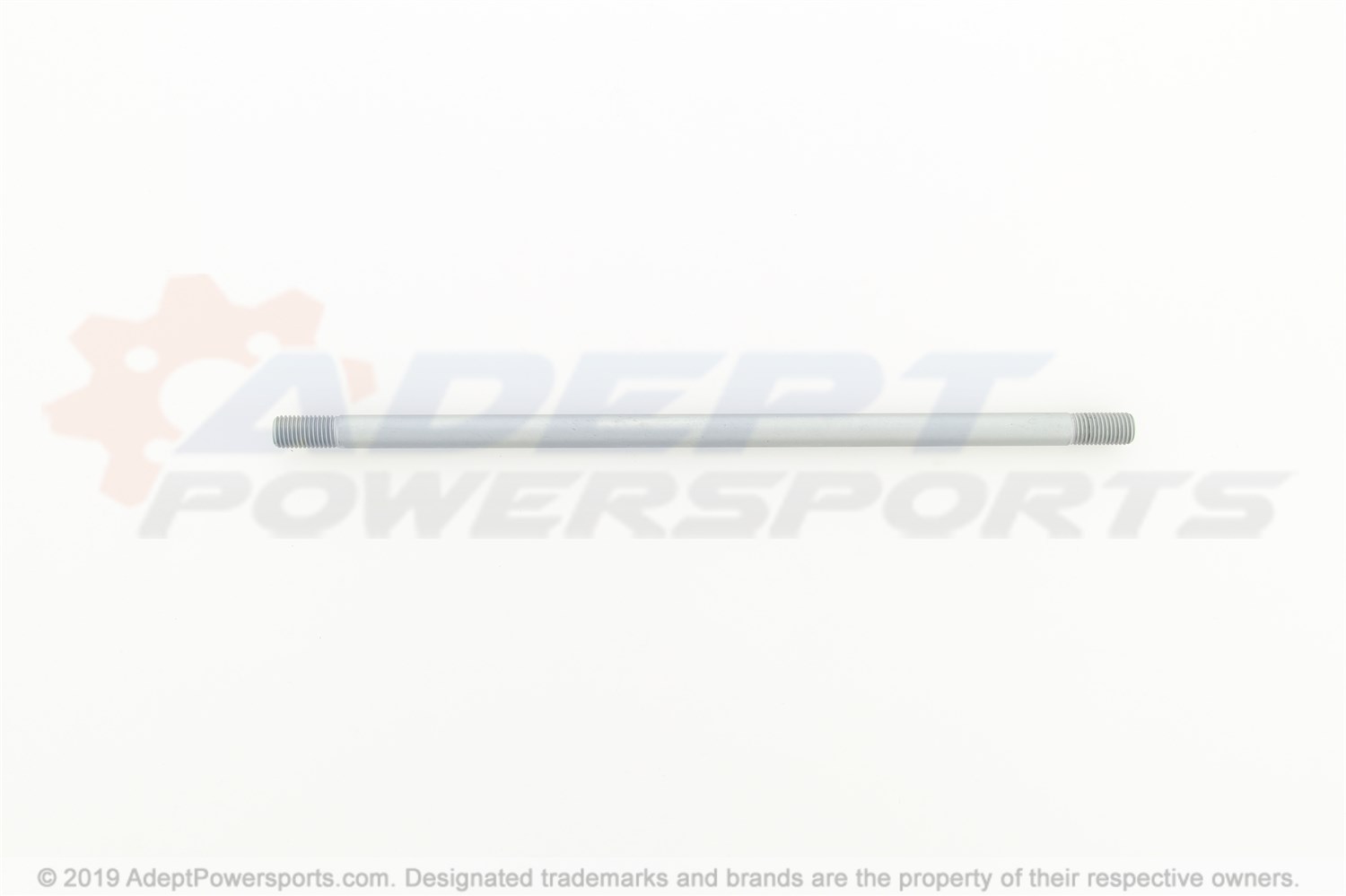

10	PIN - 306MM Part #: 46711230762 Required per assembly: 2 Currently Not Available
11	BEARING BOLT Part #: 46511231233 Required per assembly: 1 Currently Not Available
--	SPRING RETAINER Part #: 46532310721 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
--	TENSION SPRING Part #: 46532310739 Required per assembly: 2 Note: ONLY IN CONJUNCTION WITH Currently Not Available
