Crankcase replacement parts for 1985 Honda Elite 250 (CH250)

OEM Parts Honda 1985 Honda Elite 250 (CH250) Crankcase

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	CRANKCASE, R. Part #: 11140-KM1-315 Required per assembly: 1 Not Available

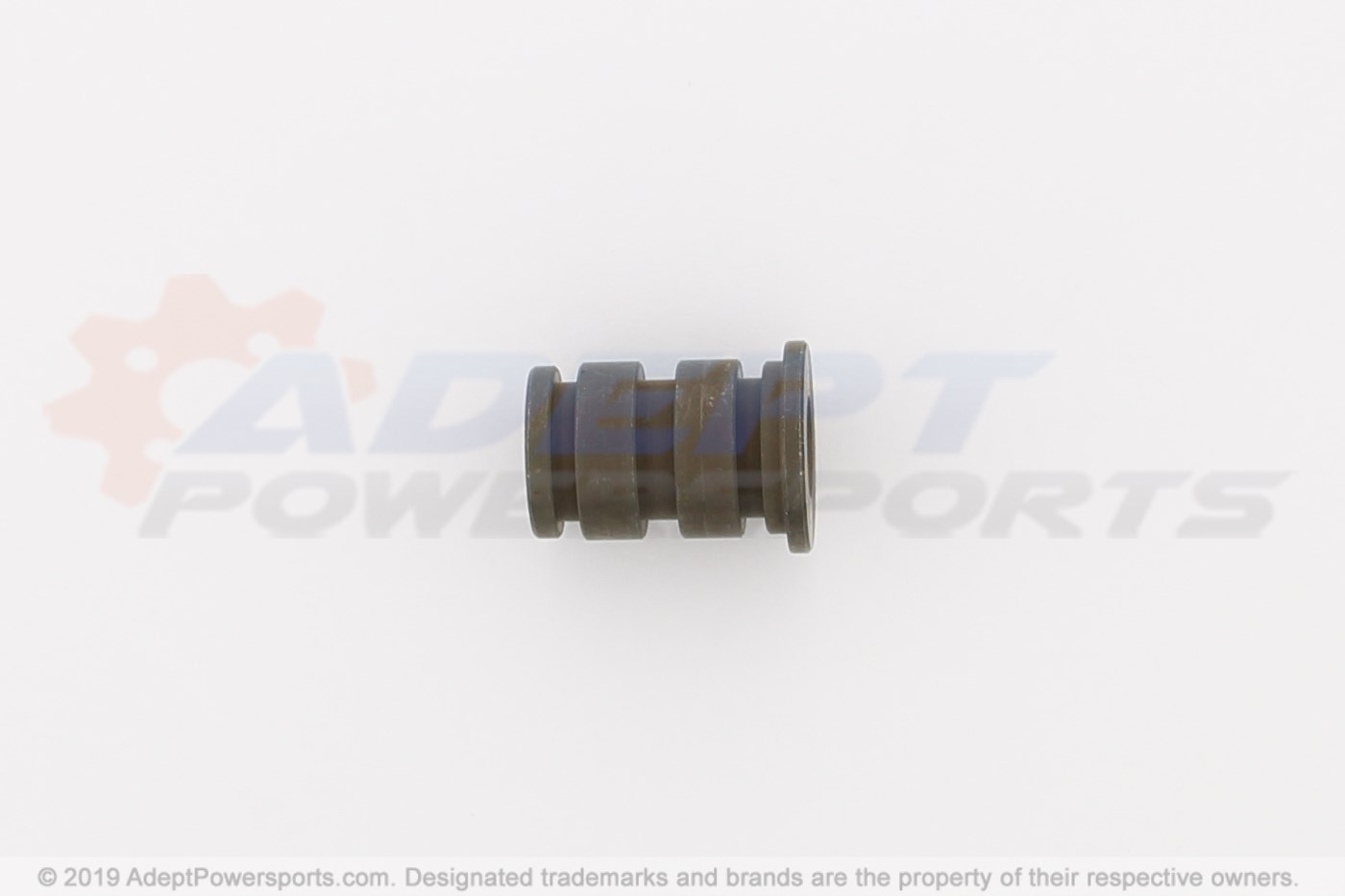

005	BUSH, ENGINE, HANGER Part #: 11105-KM1-670 Required per assembly: 2 Not Available
006	RUBBER, OIL, FENCE Part #: 11121-KM1-000 Required per assembly: 1 Not Available
007	GASKET, R., CRANKCASE Part #: 11191-KS4-690 Required per assembly: 1 Not Available
008	CRANKCASE Part #: 11200-KM1-040 Required per assembly: 1 Not Available
010	RUBBER, SPRING, GUIDE Part #: 11202-GC7-300 Required per assembly: 2 $3.49 - + Add to cart
011	BUSH, RR., (LOWER) Part #: 11203-GC7-300 Required per assembly: 1 $12.42 $10.05 - + Add to cart
012	PIPE, B, OIL Part #: 15520-KM1-000 Required per assembly: 1 $24.77 $20.04 - + Add to cart
013	SEAL, RUBBER Part #: 15525-KM1-000 Required per assembly: 2 $4.03 - + Add to cart
014	INSULATOR, HEAT Part #: 19600-KM1-671 Required per assembly: 1 Not Available
015	BOLT, A, STUD, (8MM) Part #: 90031-KM1-010 Required per assembly: 4 $8.42 $7.32 - + Add to cart
016	BOLT, B, STUD, (8MM) Part #: 90032-KM1-010 Required per assembly: 1 Not Available
018	PIN, DOWEL, (10X8X15) Part #: 90701-KM1-000 Required per assembly: 2 Not Available
020	OIL SEAL (34X52X5) Part #: 91253-KM1-003 Required per assembly: 1 $10.04 $8.62 - + Add to cart
021	OIL SEAL (27.9X40X8) Part #: 91261-KM1-003 Required per assembly: 1 $11.07 $9.46 - + Add to cart
022	O-RING (14.8X2.4) Part #: 91354-671-004 Required per assembly: 4 $4.26 - + Add to cart
023	BOLT, HEX., (6X12) Part #: 92101-06012-0A Required per assembly: 2 $2.42 $2.25 - + Add to cart
024	BOLT, FLANGE, (6X60) Part #: 96001-06060-00 Required per assembly: 2 $3.14 $2.91 - + Add to cart
025	BOLT, FLANGE, (6X70) Part #: 96001-06070-00 Required per assembly: 2 $2.94 $2.67 - + Add to cart
026	BOLT, FLANGE, (6X125) Part #: 96001-06125-00 Required per assembly: 1 Not Available
027	BEARING (6301TMB) Part #: 91003-KS4-003 Required per assembly: 1 $29.23 $23.66 - + Add to cart
027	BEARING (6301) Part #: 96100-63010-00 Required per assembly: 1 Not Available
028	BEARING (6205UU) Part #: 96150-62053-10 Required per assembly: 1 Not Available
