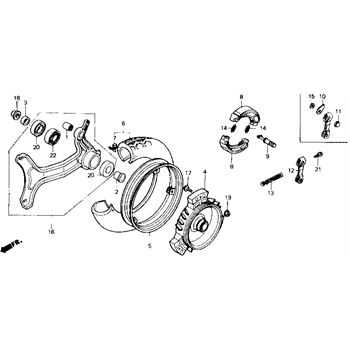

Rear Wheel replacement parts for 1985 Honda Elite 250 (CH250)

OEM Parts Honda 1985 Honda Elite 250 (CH250) Rear Wheel

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

001	BUSH, RR., (LOWER) Part #: 11203-GC7-300 Required per assembly: 1 $12.42 $10.05 - + Add to cart
002	COLLAR, A, RR., AXLE Part #: 42311-KM1-000 Required per assembly: 1 Not Available
003	COLLAR, B, RR., AXLE Part #: 42312-KM1-000 Required per assembly: 1 $7.95 $6.94 - + Add to cart
004	HUB, RR., YR112MU, (SUPER, GOLD, METALLIC-U) Part #: 42601-KM1-020ZA Required per assembly: 1 Not Available
005	RIM, WHEEL Part #: 42701-KM1-030ZA Required per assembly: 1 Not Available
006	TIRE (4.00-10) (4PR) Part #: 42710-KM1-771 Required per assembly: 1 Not Available
007	VALVE, RIM Part #: 42753-KJ9-003 Required per assembly: 1 $20.28 $16.91 - + Add to cart
008	SHOE, KIT, BRAKE Part #: 06430-KM1-405 Required per assembly: 1 Not Available
012	ARM, RR., BRAKE Part #: 43410-KM1-770 Required per assembly: 1 Not Available
013	SPRING, RR. Part #: 43472-KG8-000 Required per assembly: 1 $4.64 - + Add to cart
014	SPRING, BRAKE, SHOE Part #: 45133-028-000 Required per assembly: 4 $3.01 $2.80 - + Add to cart
015	DUST, SEAL, BRAKE, CAM Part #: 45134-250-000 Required per assembly: 1 $3.77 - + Add to cart
016	SWINGARM, ASSEMBLY, RR. Part #: 52000-KM1-020 Required per assembly: 1 Not Available
017	BOLT, FLANGE, (8X32) Part #: 90105-GM9-740 Required per assembly: 3 $4.97 - + Add to cart
018	NUT, FLANGE, (16MM) Part #: 90305-ME5-003 Required per assembly: 1 $5.64 $5.13 - + Add to cart
019	NUT, FLG, (M8X1.25) Part #: 90309-428-731 Required per assembly: 1 $4.68 $4.25 - + Add to cart
020	SEAL (25X47X5) Part #: 91259-KM1-003 Required per assembly: 1 $10.04 $8.62 - + Add to cart
021	BOLT, FLANGE, (6X28) Part #: 95701-06028-00 Required per assembly: 2 $2.81 $2.61 - + Add to cart
022	BEARING (6303UU) Part #: 96150-63030-10 Required per assembly: 1 $32.26 $26.90 - + Add to cart
NI	SHOE, KIT, BRAKE Part #: 06430-KM1-405 Required per assembly: 1 Not Available
